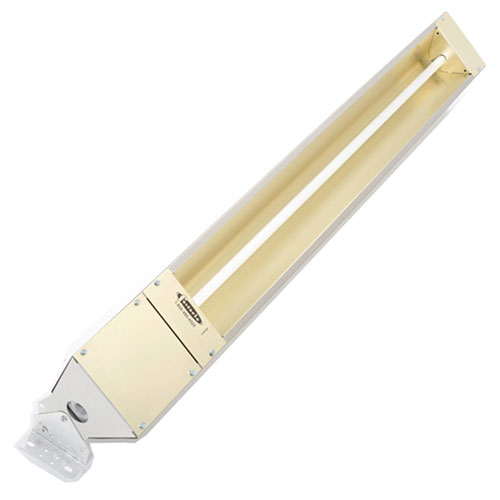

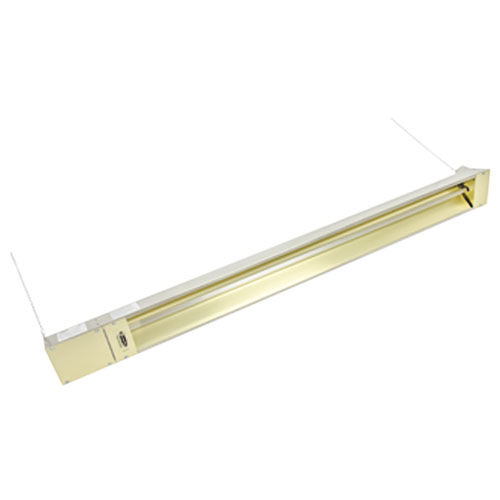

TPI OCH Series 2250W Outdoor/Indoor Rated Quartz Electric Infrared Heater, 480 Volts - Stainless Steel

Model Number: OCH-57-480V-SSE

Features:

Frosted Quartz Tube heating element (included)
Listed for suspended, totally exposed (outdoor) and indoor spot heating applications
Finish: High-temp brown powder coated finish or corrosion resistant stainless steel 24 gauge housing
60° Symmetric Heat Pattern
Gold anodized Aluminum reflector and end caps
Painted models are direct wire, unless specified and are supplied with 6” lead wires for field connection in the internal wiring compartment. These models are available with a factory installed 6’ cord set.
The 208V model must have a field supplied plug.
Stainless steel models include an electrical enclosure assembled to the end of the heater housing and (2) 6” long lead wires for direct field connection.
Two 2’ ft. long mounting chains and four S-Hooks included
The OCH-Series can be surfaced mounted using the supplied mounting brackets which allow up to a 45° horizontal tilt adjustment.
Chain, surface mount or use our vertical mounting bracket as shown below. Note: All units must be mounted horizontally.
In-Built surface mounting bracket allows for fixture adjustment up to a 45° horizontal tilt.
The heater may be suspended at any horizontal angle desired
Dimensions: Length: 48”; Width: 5.375”; Height: 6.5”
Made in U.S.A.

Specifications:

Connection Type: Hard Wire
Watts: 2250
BTUs: 7679
Volts: 480
Amps: 4.7
Qtz. Tube Repl. Element: 671-5058
WT. (LBS): 12
Mounting Clearances: 3” from ceiling; 12” from vertical surface 72” from face of heater to combustible surface 36” from another heater
Recommended Mounting Height: 8’-10’
