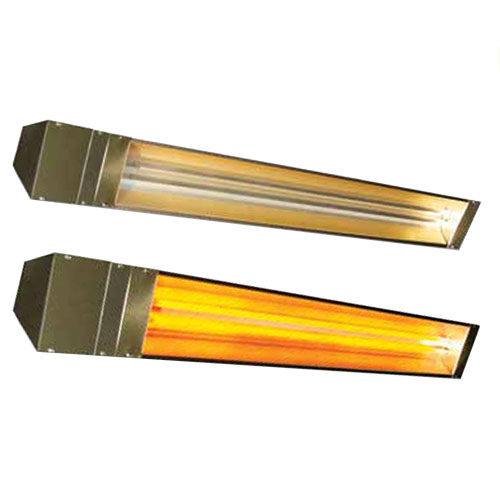

TPI OCH2 Series 4000W Outdoor/Indoor Rated Quartz Electric Infrared Heater, 208 Volts - (2 Options Available)

Available Options:

Features:

2 Frosted Quartz Tube heating elements (included)
Listed for suspended, totally exposed (outdoor) and indoor** spot heating applications
Finish: High-temp brown powder coated finish or corrosion resistant stainless steel 20 gauge housing
60° Symmetric Heat Pattern
Gold anodized Aluminum reflector and end caps
6” long lead wires for direct field connection
Two 2’ ft. long mounting chains and four S-Hooks included
The OCH2-Series can be wall or ceiling mounted using the supplied mounting brackets which allow up to a 45° horizontal tilt adjustment
Chain, surface mount or use our vertical mounting bracket. Note: All units must be mounted horizontally
In-Built surface mounting bracket allows for fixture adjustment up to a 45° horizontal tilt
The heater may be suspended at any horizontal angle desired.
Dimensions: Length: 55”; Width: 7.5”; Height: 7”
Made in U.S.A

Specifications:

Watts: 4000
BTUs: 13652
Volts: 208
Amps: 19.23
Qtz. Tube Repl. Element: 671-5062
Mounting Clearances: 6-3/4” from ceiling; 30” from vertical surface85” from face of heater to combustible surface36” from another heater
Recommended Mounting Height: 9'-11'

Note: 480V models use (2) 240V elements wired in series. Not for residential use.
