TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V

Product Code: ET12847
TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V

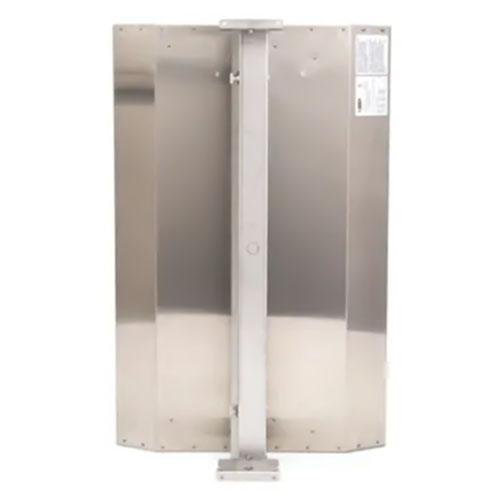

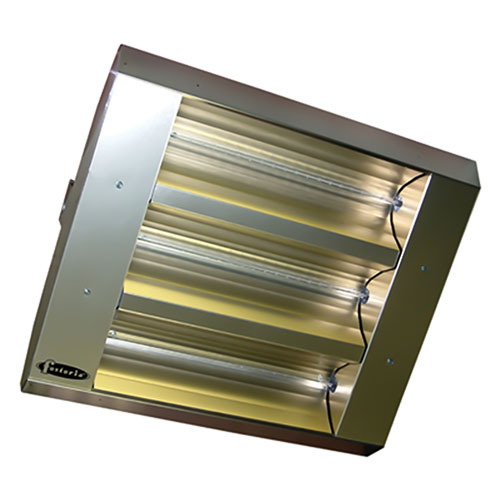

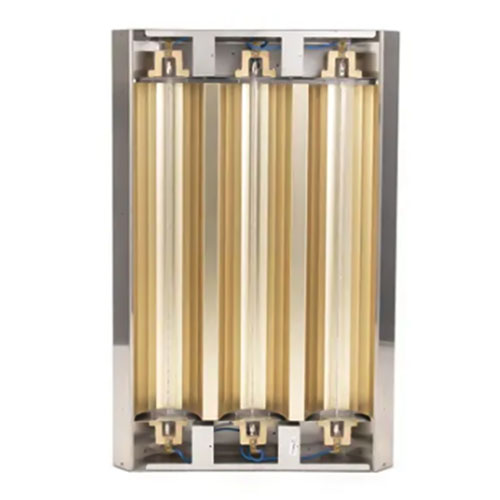

Photograph of TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V
Photograph of TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V
Photograph of TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V
Photograph of TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V
TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V Photograph of TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V Photograph of TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V Photograph of TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V Photograph of TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts - 343-30-TH-240V
Condition: New
  • Typically ships within:7 to 10 Business Days
Your Price $1,525.12
(You Save 36%)
List Price $2,383.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $25/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Made in the USA TPI TH Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 30° Symmetrical with Bronze Housing - 240 Volts

Model Number: 343-30-TH-240V

Features:
  • Short wavelength radiant heat emitter for indoor & total exposed outdoor heating applications
  • Gold anodized interior reflector offered in symmetrical or asymmetrical heat pattern options
  • Clear quartz lamp operates at 96% radiant efficiency & generates 8-lumens per watt
  • Designed for indoor and totally exposed outdoor heating application areas
  • Element life expectancy of 5,000 hours
  • Housing finish: bankers bronze or stainless steel
  • Designed for rugged industrial applications
  • Chain, suspension, wall, or recessed mounting options
  • Shipped with clear quartz lamp
  • AG suffix models include “glare” reducing sleeves
  • 50% higher wattage densities for 3-element units
  • 3-Lamp wiring, three or single phase
  • Clear 12mm diameter Quartz Lamp(s) Included
  • Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit.
  • Durable in harsh atmospheres & outdoor environments
  • In-Built surface mounting brackets allows for fixture adjustment up to 45° horizontal tilt
  • In-built surface mounting brackets attached to the top wiring channel
  • 0 to 45o tilt @ 15o increments
  • 600-Volt Models also available, contact factory for more information
  • Asymmetrical pattern units are also available for 30° & 60°
  • Made in U.S.A.
Specifications:
  • KW: 7.5
  • BTUs: 25298
  • Volts: 240
  • Reflection Pattern: 30° Symmetrical
  • 12mm Diameter Replacement Lamp: 63025249
  • WT. (LBS): 33
  • Mounting Clearances: 3” from ceiling (indoor) / 96” from face of heater to combustible surface (outdoor)
  • Recommended Mounting Height: 30° Symmetric & A30° Asymmetric Reflector - Indoor (14' - 30') / 30° Symmetric & A30° Asymmetric Reflector - Outdoor (8’ - 10’)
  • Housing: 20 gauge Galvanized Steel with baked on bankers bronze powder coated finish. 20 gauge Stainless Steel for durability and corrosion-resistance. Both housings are ETL Listed for either indoor and totally exposed outdoor applications
  • Controls: Mul-T-Mount heaters are not manufactured with any control device on the unit. All controls are accessories and should be specified as such. Please consult the technical sales department of factory for help in determining applicable controls.
  • Accessories: Recessed mounting frames (painted or stainless steel), adjustable mounting brackets (stainless steel only), vertical mounting brackets (stainless steel only), wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series).

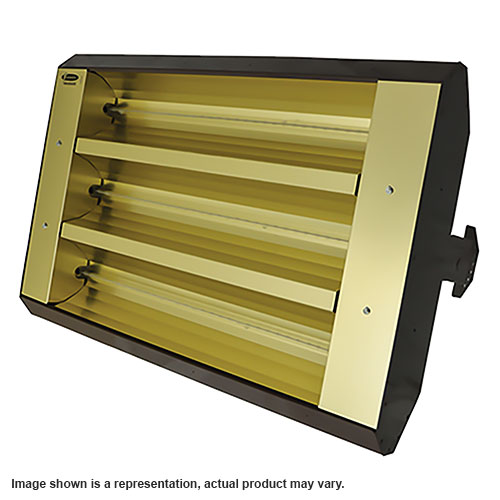

  • Image shown is a representation, actual product may vary.
Note: Consult the factory, the product instruction manual, or a licensed electrician for 3-phase wiring of all 2-element heaters.
  • MPN: 34330TH240V
  • UPC: 686334487610
