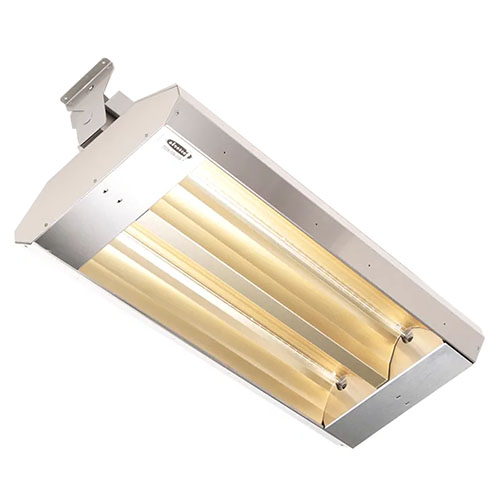

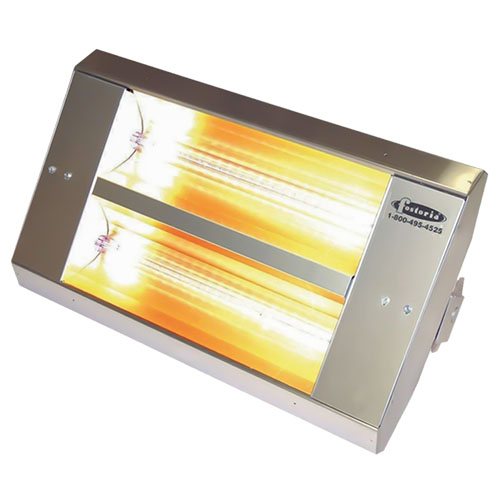

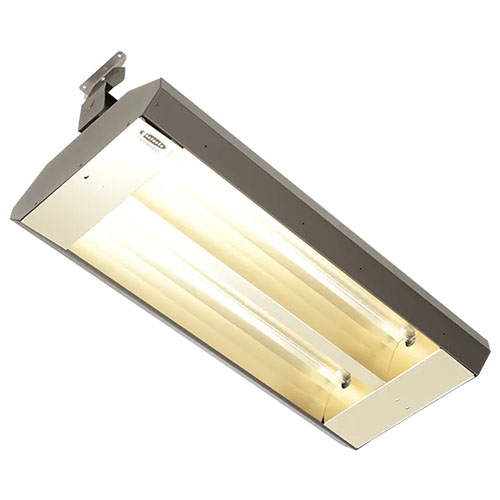

Photograph of TPI TH & THSS Series 2 Lamp 5KW Mul-T-Mount Electric Infrared Heater, 208 Volts - (2 Options Available)

Condition: New

Typically ships within:7 to 10 Business Days

Your Price	$1,006.72 1006.72
	(You Save 36%)

List Price

$1,573.00

Qty

Accepted Payment Types

Easy Financing Available
as low as $17/mo
for 60 months. Details

Select Option:

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

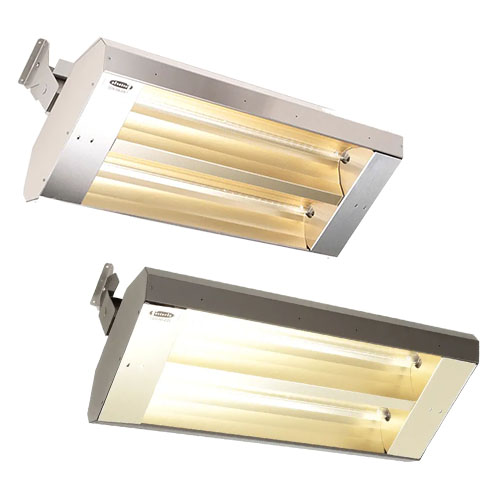

TPI TH & THSS Series 2 Lamp 5KW Mul-T-Mount Electric Infrared Heater, 208 Volts - (2 Options Available)

Available Options:

342-30-TH-208V: Painted
342-30-THSS-208V: Stainless Steel

Features:

Overhead Infrared Heaters for Snow and Ice Control, Outdoor Spot Heating, and All Indoor Heating Applications
Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
Listed for recessed applications
20 gauge powder coated steel or stainless steel housings
Gold anodized Aluminum reflectors & end caps
50% higher wattage densities for 3-element units
2-Lamp wiring, single phase
3-Lamp wiring, three or single phase
Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit.
Durable in harsh atmospheres & outdoor environments
High temperature lead wires
Clear 12mm diameter Quartz Lamp(s) Included
Elements provide a bright light, generating 8-lumens per watt
In-Built surface mounting brackets allows for fixture adjustment up to 45° horizontal tilt
0 to 45° tilt @ 15° increments
Made in U.S.A.

Specifications:

KW: 5.0
BTUs: 17,065
Volts: 208
Reflection Pattern: 30° Symmetrical
12mm Diameter Replacement Lamp: 63025209
WT. (LBS): 25
Mounting Clearances: 3” from ceiling
Recommended Mounting Height: 30° Symmetric & A30° Asymmetric Reflector - Indoor (14' - 30')
Housing: 20 gauge Galvanized Steel with baked on bankers bronze powder coated finish. 20 gauge Stainless Steel for durability and corrosion-resistance. Both housings are ETL Listed for either indoor and totally exposed outdoor applications.
Reflectors and End Caps: 040 Gold anodized Aluminum reflectors and end caps for superior reflectivity. Five choices of reflector patterns including 30 degree narrow (symmetric & asymmetric), 60 degree medium (symmetric & asymmetric), and 90 degree wide (symmetric). THSS models have stainless steel end caps.
Elements: Clear quartz lamps. Coiled tungsten filament located within a sealed quartz envelope, halogen filled, with porcelain end caps and 6” wire pigtail leads. Elements are 12mm in diameter and deliver a 96% radiant efficiency with high moisture and thermal shock resistance. Instantaneous heat-up and cool-down performance. Available wattages from 1600 to 3650 Watts per element. Available voltages from 208 to 600 Volts.
Controls: Mul-T-Mount heaters are not manufactured with any control device on the unit. All controls are accessories and should be specified as such. Please consult the technical sales department of factory for help in determining applicable controls.
Accessories: Recessed mounting frames (painted or stainless steel), adjustable mounting brackets (stainless steel only), vertical mounting brackets (stainless steel only), wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series).
