TPI TH & THSS Series 2 Lamp 5KW Mul-T-Mount Electric Infrared Heater, 240 Volts - Stainless Steel - 342-30-THSS-240V

Product Code: ET12744

Condition: New

Your Price	$1,115.52
	(You Save 36%)

List Price

$1,743.00

Qty

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

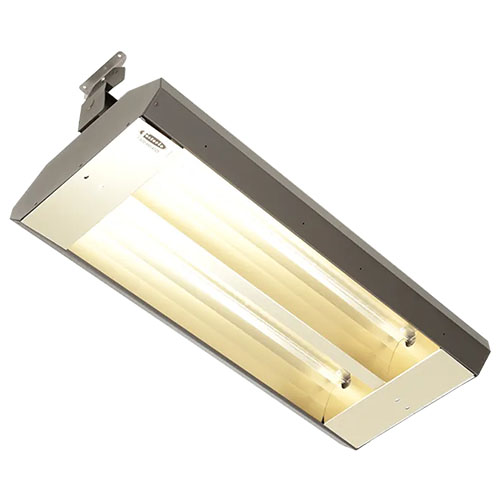

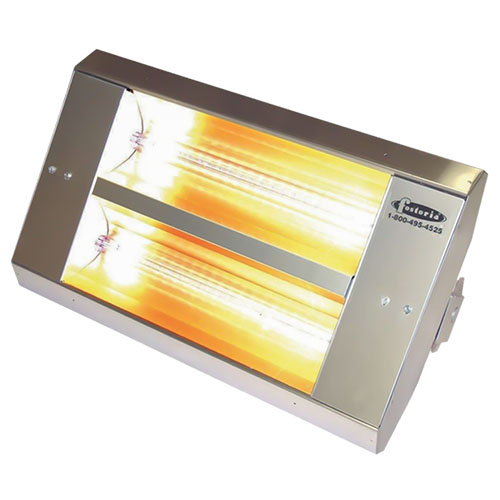

TPI TH & THSS Series 2 Lamp 5KW Mul-T-Mount Electric Infrared Heater, 240 Volts - Stainless Steel

Model Number: 342-30-THSS-240V

Features:

Short wavelength radiant heat emitter for indoor & total exposed outdoor heating applications
Gold anodized interior reflector offered in symmetrical or asymmetrical heat pattern options
Clear quartz lamp operates at 96% radiant efficiency & generates 8-lumens per watt
Designed for indoor and totally exposed outdoor heating application areas
Element life expectancy of 5,000 hours
Housing finish: bankers bronze or stainless steel
Designed for rugged industrial applications
Chain, suspension, wall, or recessed mounting options
Shipped with clear quartz lamp
AG suffix models include “glare” reducing sleeves
Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit.
Durable in harsh atmospheres & outdoor environments
High temperature lead wires
In-Built surface mounting brackets allows for fixture adjustment up to 45° horizontal tilt
In-built surface mounting brackets attached to the top wiring channel
50% higher wattage densities for 3-element units
2-Lamp wiring, single phase
Durable in harsh atmospheres & outdoor environments
High temperature lead wires
0 to 45° tilt @ 15° increments
Made in U.S.A.

Specifications:

KW: 5.0
BTUs: 17,065
Volts: 240
Reflection Pattern: 30° Symmetrical
12mm Diameter Replacement Lamp: 63025249
WT. (LBS): 25
Mounting Clearances: 3” from ceiling
Recommended Mounting Height: 30° Symmetric & A30° Asymmetric Reflector - Indoor (14' - 30')
Housing: 20 gauge Galvanized Steel with baked on bankers bronze powder coated finish. 20 gauge Stainless Steel for durability and corrosion-resistance. Both housings are ETL Listed for either indoor and totally exposed outdoor applications
Controls: Mul-T-Mount heaters are not manufactured with any control device on the unit. All controls are accessories and should be specified as such. Please consult the technical sales department of factory for help in determining applicable controls.
Accessories: Recessed mounting frames (painted or stainless steel), adjustable mounting brackets (stainless steel only), vertical mounting brackets (stainless steel only), wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series).
Image shown is a representation, actual product may vary.
