TPI TH & THSS Series 3 Lamp 10.95KW Mul-T-Mount Electric Infrared Heater with 8mm Quartz Lamps and Amber Gray Sleeves - 30° Sym, 480 Volts - (2 Options Available)

Available Options:

463-30-TH-480V-AG: Bronze Finish
463-30-THSS-480V-AG: Stainless Steel

Features:

Short wavelength radiant heat emitter for indoor & total exposed outdoor heating applications
Gold anodized interior reflector offered in symmetrical or asymmetrical heat pattern options
Clear quartz lamp operates at 96% radiant efficiency & generates 8-lumens per watt
Designed for indoor and totally exposed outdoor heating application areas
Element life expectancy of 5,000 hours
Housing finish: bankers bronze or stainless steel
Designed for rugged industrial applications
Chain, suspension, wall, or recessed mounting options
Shipped with clear quartz lamp
AG suffix models include “glare” reducing sleeves
When used together, reduces 94% of lumens of clear quartz lamp
Allows 90% of energy to pass through sleeve to installed area
Eliminates red glow found with using red vycor sleeve
Shipped standard on all AG suffix & THA model series
Heaters shipped with glare reducing sleeves & elements
Asymmetrical pattern units are also available for 30° & 60°
Made in U.S.A.

Specifications:

KW: 10.95
BTUs: 37,372
Volts: 480
Reflection Pattern: 30° Symmetrical
8mm Diameter Replacement Lamp: 04913602
WT. (LBS): 41
Mounting Clearances: 3” from ceiling / 96” from face of heater to combustible surface
Recommended Mounting Height: 0° Symmetric & A30° Asymmetric Reflector - Indoor (14’ - 30’) / 30° Symmetric & A30° Asymmetric Reflector - Outdoor (8’ - 10’)
Housing: 20 gauge Galvanized Steel with baked on bankers bronze powder coated finish. 20 gauge Stainless Steel for durability and corrosion-resistance. Both housings are ETL Listed for either indoor and totally exposed outdoor applications
Controls: Mul-T-Mount heaters are not manufactured with any control device on the unit. All controls are accessories and should be specified as such. Please consult the technical sales department of factory for help in determining applicable controls.
Accessories: Recessed mounting frames (painted or stainless steel), adjustable mounting brackets (stainless steel only), vertical mounting brackets (stainless steel only), wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series).

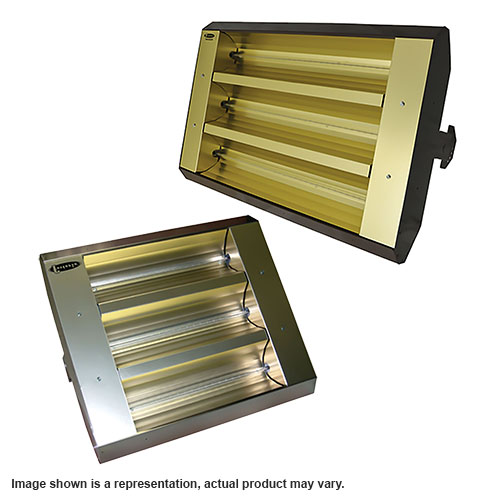

Image shown is a representation, actual product may vary.
