TPI TH & THSS Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater with 8mm Quartz Lamps and Amber Gray Sleeves - 30° Symmetrical, 240 Volts - (2 Options Available)

Product Code: ET12856
TPI TH & THSS Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater with 8mm Quartz Lamps and Amber Gray Sleeves - 30° Symmetrical, 240 Volts - (2 Options Available)
Condition: New
  • Usually ships off dock within:7 to 10 Business Days
Your Price $1,473.99
(You Save 36%)
List Price $2,316.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $25/mo
for 60 months. Details
Select Option:

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Made in the USA TPI TH & THSS Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater with 8mm Quartz Lamps and Amber Gray Sleeves - 30° Symmetrical, 240 Volts - (2 Options Available)

Available Options:
  • 343-30-TH-240V-AG: Bronze Finish
  • 343-30-THSS-240V-AG: Stainless Steel
Features:
  • Short wavelength radiant heat emitter for indoor & total exposed outdoor heating applications
  • Gold anodized interior reflector offered in symmetrical or asymmetrical heat pattern options
  • Clear quartz lamp operates at 96% radiant efficiency & generates 8-lumens per watt
  • Designed for indoor and totally exposed outdoor heating application areas
  • Element life expectancy of 5,000 hours
  • Housing finish: bankers bronze or stainless steel
  • Designed for rugged industrial applications
  • Chain, suspension, wall, or recessed mounting options
  • Shipped with clear quartz lamp
  • AG suffix models include “glare” reducing sleeves
  • When used together, reduces 94% of lumens of clear quartz lamp
  • Allows 90% of energy to pass through sleeve to installed area
  • Eliminates red glow found with using red vycor sleeve
  • Shipped standard on all AG suffix & THA model series
  • Heaters shipped with glare reducing sleeves & elements
  • Asymmetrical pattern units are also available for 30° & 60°
  • Made in U.S.A.
Specifications:
  • KW: 7.5
  • BTUs: 25,298
  • Volts: 240
  • Reflection Pattern: 30° Symmetrical
  • 8mm Diameter Replacement Lamp: 04913302
  • WT. (LBS): 33
  • Mounting Clearances: 3” from ceiling / 96” from face of heater to combustible surface
  • Recommended Mounting Height: 0° Symmetric & A30° Asymmetric Reflector - Indoor (14’ - 30’) / 30° Symmetric & A30° Asymmetric Reflector - Outdoor (8’ - 10’)
  • Housing: 20 gauge Galvanized Steel with baked on bankers bronze powder coated finish. 20 gauge Stainless Steel for durability and corrosion-resistance. Both housings are ETL Listed for either indoor and totally exposed outdoor applications
  • Controls: Mul-T-Mount heaters are not manufactured with any control device on the unit. All controls are accessories and should be specified as such. Please consult the technical sales department of factory for help in determining applicable controls.
  • Accessories: Recessed mounting frames (painted or stainless steel), adjustable mounting brackets (stainless steel only), vertical mounting brackets (stainless steel only), wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series).

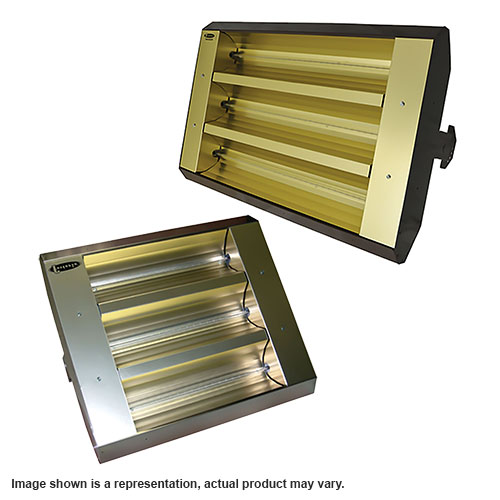

  • Image shown is a representation, actual product may vary.
Note: Consult the factory, the product instruction manual, or a licensed electrician for 3-phase wiring of all 2-element heaters
