TPI THA Series 2 Lamp 5.0KW Mul-T-Mount Electric Infrared Heater with 8mm Quartz Lamps and Amber Gray Sleeves - 30° Asymmetrical, 480 Volts - Extruded Aluminum - 342-A30-THA-480V

Product Code: ET12792
TPI THA Series 2 Lamp 5.0KW Mul-T-Mount Electric Infrared Heater with 8mm Quartz Lamps and Amber Gray Sleeves - 30° Asymmetrical, 480 Volts - Extruded Aluminum - 342-A30-THA-480V
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $1,164.16
(You Save 36%)
List Price $1,819.00

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Made in the USA TPI THA Series 2 Lamp 5.0KW Mul-T-Mount Electric Infrared Heater with 8mm Quartz Lamps and Amber Gray Sleeves - 30° Asymmetrical, 480 Volts - Extruded Aluminum

Model Number: 342-A30-THA-480V

Features:
  • ETL C/US listed for suspended, totally exposed outdoor and indoor spot comfort heating applications, including exterior snow/ice control applications
  • 2-lamp heaters wire for single-phase operation
  • Includes surface mounting brackets
  • Short wavelength radiant heat emitter for indoor & total exposed outdoor heating applications
  • Gold anodized interior reflector offered in symmetrical or asymmetrical heat pattern options
  • Clear quartz lamp operates at 96% radiant efficiency & generates 8-lumens per watt
  • Designed for indoor and totally exposed outdoor heating application areas
  • Element life expectancy of 5,000 hours
  • Extruded aluminum housing
  • Nickel gray finish
  • Designed for commercial applications
  • Chain or suspension mounting options
  • Shipped with clear quartz lamps and amber gray “glare” reducing sleeves
  • When used together, reduces 94% of lumens of clear quartz lamp
  • Allows 90% of energy to pass through sleeve to installed area
  • Eliminates red glow found with using red vycor sleeve
  • Shipped standard on all AG suffix & THA model series
  • Made in U.S.A.
Specifications:
  • KW: 5.0
  • BTUs: 17,065
  • Volts: 480
  • Reflector Pattern: 30° Asymmetrical
  • 8mm Diameter Replacement Lamp: 04913502
  • WT. (LBS): 25

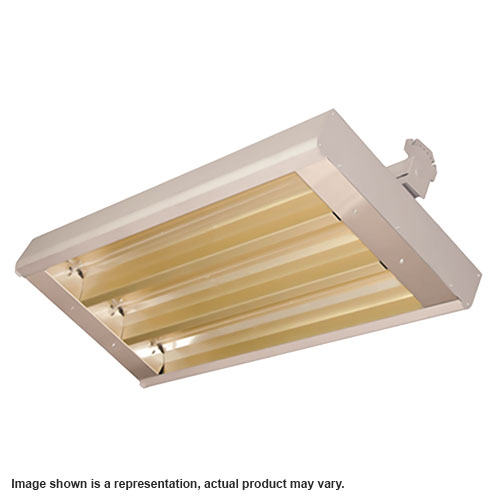

  • Image shown is a representation, actual product may vary.
Note: Consult the factory, the product instruction manual, or a licensed electrician for 3-phase wiring of all 2-element heaters.
  • MPN: 342A30THA480V
  • UPC: 686334489478
