TPI THSS Series 3 Lamp 10.95KW Mul-T-Mount Electric Infrared Heater with 8mm Quartz Lamps and Amber Gray Sleeves - 90° Sym, 480 Volts - Stainless Steel - 463-90-THSS-480V-AG

Product Code: ET12923

Condition: New

Usually ships off dock within:7 to 10 Business Days

Your Price	$2,208.99 2208.99
	(You Save 36%)

List Price

$3,472.00

Qty

Accepted Payment Types

Easy Financing Available
as low as $37/mo
for 60 months. Details

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

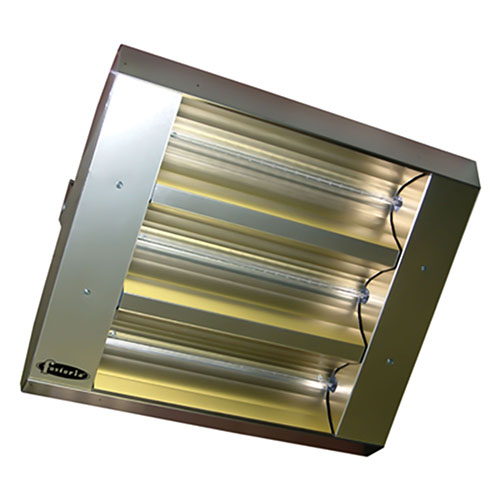

TPI THSS Series 3 Lamp 10.95KW Mul-T-Mount Electric Infrared Heater with 8mm Quartz Lamps and Amber Gray Sleeves - 90° Sym, 480 Volts - Stainless Steel

Model Number: 463-90-THSS-480V-AG

Features:

Short wavelength radiant heat emitter for indoor & total exposed outdoor heating applications
Gold anodized interior reflector offered in symmetrical or asymmetrical heat pattern options
Clear quartz lamp operates at 96% radiant efficiency & generates 8-lumens per watt
Designed for indoor and totally exposed outdoor heating application areas
Element life expectancy of 5,000 hours
Housing finish: bankers bronze or stainless steel
Designed for rugged industrial applications
Chain, suspension, wall, or recessed mounting options
Shipped with clear quartz lamp
AG suffix models include “glare” reducing sleeves
When used together, reduces 94% of lumens of clear quartz lamp
Allows 90% of energy to pass through sleeve to installed area
Eliminates red glow found with using red vycor sleeve
Shipped standard on all AG suffix & THA model series
Heaters shipped with glare reducing sleeves & elements
Asymmetrical pattern units are also available for 30° & 60°
Made in U.S.A.

Specifications:

KW: 10.95
BTUs: 37,372
Volts: 480
Reflection Pattern: 90° Symmetrical
8mm Diameter Replacement Lamp: 04913602
WT. (LBS): 41
Mounting Clearances: Consult Factory
Recommended Mounting Height: Consult Factory
Housing: 20 gauge Galvanized Steel with baked on bankers bronze powder coated finish. 20 gauge Stainless Steel for durability and corrosion-resistance. Both housings are ETL Listed for either indoor and totally exposed outdoor applications
Controls: Mul-T-Mount heaters are not manufactured with any control device on the unit. All controls are accessories and should be specified as such. Please consult the technical sales department of factory for help in determining applicable controls.
Accessories: Recessed mounting frames (painted or stainless steel), adjustable mounting brackets (stainless steel only), vertical mounting brackets (stainless steel only), wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series).
Image shown is a representation, actual product may vary.

Note: Consult the factory, the product instruction manual, or a licensed electrician for 3-phase wiring of all 2-element heaters

MPN: 46390THSS480VAG
UPC: 686334491273
