TPI THSS Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 60° Symmetrical with Stainless Steel Housing - 240 Volts - 343-60-THSS-240V

Product Code: ET12868

TPI TH & THSS Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 60° Symmetrical with Stainless Steel Housing - 240 Volts - 343-60-THSS-240V

The TPI THSS Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 60° Symmetrical with Stainless Steel Housing - 240 Volts - 343-60-THSS-240V is designed for indoor and totally exposed outdoor heating application areas.

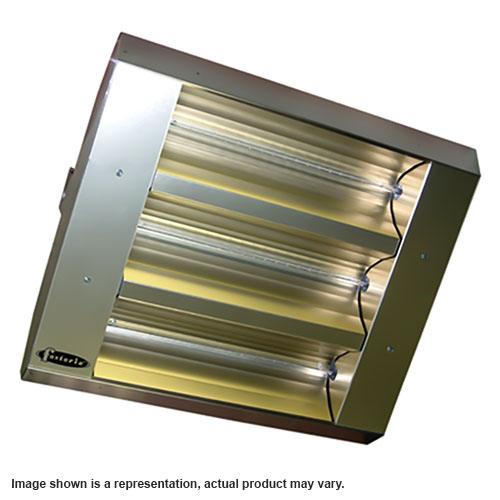

Photograph of TPI THSS Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 60° Symmetrical with Stainless Steel Housing - 240 Volts - 343-60-THSS-240V

Condition: New

Usually ships off dock within:2 to 4 Business Days

Your Price	$1,566.72
	(You Save 36%)

List Price

$2,448.00

Qty

Accepted Payment Types

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

TPI THSS Series 3 Lamp 7.5KW Mul-T-Mount Electric Infrared Heater, 60° Symmetrical with Stainless Steel Housing - 240 Volts

Model Number: 343-60-THSS-240V

Features:

Short wavelength radiant heat emitter for indoor & total exposed outdoor heating applications
Gold anodized interior reflector offered in symmetrical or asymmetrical heat pattern options
Clear quartz lamp operates at 96% radiant efficiency & generates 8-lumens per watt
Designed for indoor and totally exposed outdoor heating application areas
Element life expectancy of 5,000 hours
Housing finish: bankers bronze or stainless steel
Designed for rugged industrial applications
Chain, suspension, wall, or recessed mounting options
Shipped with clear quartz lamp
AG suffix models include “glare” reducing sleeves
50% higher wattage densities for 3-element units
3-Lamp wiring, three or single phase
Clear 12mm diameter Quartz Lamp(s) Included
Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit.
Durable in harsh atmospheres & outdoor environments
In-Built surface mounting brackets allows for fixture adjustment up to 45° horizontal tilt
In-built surface mounting brackets attached to the top wiring channel
0 to 45o tilt @ 15o increments
600-Volt Models also available, contact factory for more information
Asymmetrical pattern units are also available for 30° & 60°
Made in U.S.A.

Specifications:

KW: 7.5
BTUs: 25298
Volts: 240
Reflection Pattern: 60° Symmetrical
12mm Diameter Replacement Lamp: 63025249
WT. (LBS): 33
Mounting Clearances: 24” from vertical surface (indoor)
Recommended Mounting Height: 60° Symmetric & A60° Asymmetric Reflector - Indoor (12’ - 18’)
Housing: 20 gauge Galvanized Steel with baked on bankers bronze powder coated finish. 20 gauge Stainless Steel for durability and corrosion-resistance. Both housings are ETL Listed for either indoor and totally exposed outdoor applications
Controls: Mul-T-Mount heaters are not manufactured with any control device on the unit. All controls are accessories and should be specified as such. Please consult the technical sales department of factory for help in determining applicable controls.
Accessories: Recessed mounting frames (painted or stainless steel), adjustable mounting brackets (stainless steel only), vertical mounting brackets (stainless steel only), wire guards, thermostats, snow detectors, SCR controllers, and power contactor panels (ICP Series).
Image shown is a representation, actual product may vary.
