Top 5 Must-Have Pacific Arc Tools for Architects and Designers

Pacific Arc Tools

Having the right tools can elevate your work if you're serious about drafting and design. Pacific Arc has earned the trust of professionals and students thanks to its reputation for precision, durability, and top-notch quality. Whether working on a large-scale architectural project or simply fine-tuning a design, the right tools can make all the difference. These five must-have Pacific Arc tools enhance your workflow, ensuring you achieve the accuracy, reliability, and convenience needed to bring your ideas to life. From portable drawing boards to specialized drafting supplies, these tools will support you in every step of your creative process.

1. Pacific Arc PXB 30" x 42" Drawing Board

ChrisNik 6 Inch MAGHUB





The Pacific Arc PXB 30" x 42" Drawing Board provides professionals and students with a precise and portable drawing surface. Built with durable materials, it offers superior performance without the footprint of a full drafting table.

Key Features and Specifications:

  • This portable drawing board features a precision-built parallel straightedge for professional-quality results.
  • The solid wood core resists warping and has a smooth white melamine surface that's easy to clean.
  • Aluminum straightedge features a rubberized grip and inking edge for precise, smudge-free results.
  • The underwire system maintains the straightedge's alignment across the surface.
  • The twin braking system locks the bar firmly at any position.
  • Non-slip rubber grip tracks enable a comfortable drawing angle over a table edge.
  • Foldaway legs with rubber feet offer stable flat or angled use.
  • Model Number: PXB42
  • Size: 30" x 42"
  • Weight: 8 lbs

2. Pacific Arc 37.5" x 60" Vinyl Board Cover Pre-Cut Sheet

Blog Pacific Arc 37.5

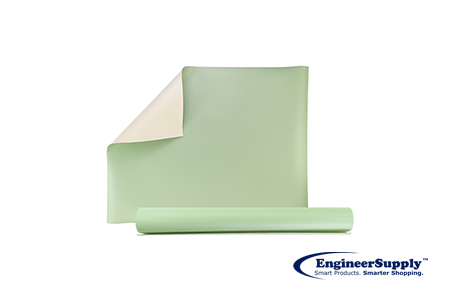

Protect your drawing surfaces with the Pacific Arc 37.5" x 60" Vinyl Board Cover, crafted from thick 5-ply self-healing vinyl. This crucial addition to your drafting supplies is ideal for converting any surface into a durable work area.

Key Features and Specifications:

  • Thick 5-ply, self-healing material that resists cuts and abrasions.
  • Reversible design doubles the working life.
  • Pre-cut for easy installation using double-sided tape.
  • It protects drawing boards, drafting tables, and other work surfaces.
  • Available in a green/cream color combination.
  • Model Number: GI-37560
  • Size: 37.5" x 60"

3. Pacific Arc 31" x 42" STB-Series Portable Drawing Board with Parallel Bar

Pacific Arc 31





The Pacific Arc 31" x 42" STB-Series Drawing Board is a portable drafting solution that combines the functionality of a drafting table with easy transportability. It's an excellent choice for architects and designers needing a reliable mobile setup.
SHOP Pacific Arc 31" x 42" STB-Series Portable Drawing Board with Parallel Bar

Key Features and Specifications:

  • The smooth melamine surface ensures clean, consistent drawing results.
  • The integrated parallel bar ensures accurate lines and measurements.
  • Folding legs and a built-in handle allow for effortless transport.
  • The bar holds a variety of drawing and drafting materials.
  • Model Number: STB-3142
  • Size: 31" x 42"

4. Pacific Arc Electrical Symbols Templates

Blog Pacific Arc Electrical Symbols Templates





The Pacific Arc Electrical Symbols Template is a staple among drafting supplies. It creates clean and consistent markings designed for efficiency, making it an essential tool for electrical schematics and layout work.
SHOP Pacific Arc Electrical Symbols Templates

Key Features and Specifications:

  • Precision-made cut-outs ensure clean symbol reproduction.
  • It is ideal for drawing perfect circles, ellipses, and electrical symbols.
  • The durable plastic construction ensures long-term use.
  • Lightweight and easy to carry for both office and fieldwork.
  • Model Number: PT-415
  • Material: Durable translucent plastic
  • Packaging: Blister Carded

5. Pacific Arc Lightweight White Tracing Paper Roll 24" x 50yd

Blog Pacific Arc Lightweight White Tracing Paper Roll 24

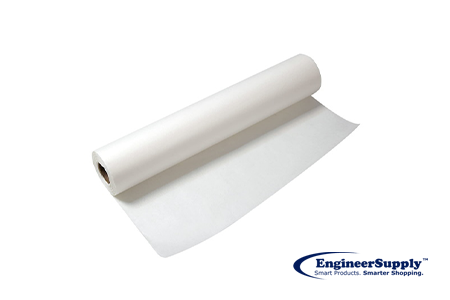

The Pacific Arc Lightweight White Tracing Paper provides excellent translucency and durability, making it perfect for overlay work and design drafts—it is a reliable choice for professional drafting supplies.
SHOP Pacific Arc Lightweight White Tracing Paper Roll 24" x 50yd

Key Features and Specifications:

  • High transparency allows for clear visibility across multiple overlays, ensuring legibility even with heavy use.
  • No bleed-through when using pencil, ink, charcoal, or felt-tip markers.
  • Semi-transparent material allows easy tracing and duplication, making it perfect for detailed drawings.
  • Ideal for architectural drawings, schematics, and design projects where precision is essential.
  • Model Number: 55W-J
  • Color: White
  • Core Size: 1"
  • Size: 24" width
  • Length: 50 yards
  • Weight: 8 lbs.

Final Thoughts

As an architect or designer, your tools should empower you to work with precision, efficiency, and portability. The Pacific Arc products above—whether it's professional drawing boards, strong protective covers, or handy templates—are made to meet the high standards of the industry. Investing in these high-quality drafting supplies ensures that your projects will reflect the accuracy and professionalism you demand.

Ready to upgrade your drafting supplies? Shop the full line of Pacific Arc drawing boards, drafting tables, and accessories at Engineer Supply. Trusted by architects, engineers, and design professionals, Pacific Arc tools are built to perform—no matter the project.
