Top 5 Gagne Light Boxes for Architects and Engineers

Gagne

Have you ever sat at your drafting table, trying to trace a line, and the light just isn’t cutting it? Maybe there’s glare on the paper, or weird shadows that make everything more complicated than it should be. It’s frustrating, right? You end up tilting your head, moving your lamp around, and still not getting the clarity you need. If you work with plans, drawings, or layouts daily, you know how much good lighting can help. It’s not just about seeing—it’s about working clean and staying focused. That’s why having a solid light box can change how your workday feels. One name that frequently appears in discussions among architects and engineers is Gagne. Their Porta-Trace light boxes have been around forever, and for good reason—they’re simple, strong, and they work. Let’s look at the top five Gagne light boxes and help you find one that actually fits how you work.

1. Gagne Porta-Trace 10" x 12" LED Light Box

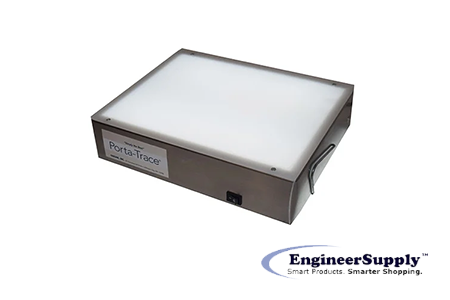

Gagne Porta-Trace 10





Gagne Porta-Trace 10" x 12" LED Light Box is the smallest model on the list. It fits easily on any desk and is light enough to carry around. If you're tracing small parts of blueprints or sketching details on the go, this one does the job well. You achieve a uniform, even brightness across the entire surface, with no glare or hot spots.

Key Features and Specifications:

  • Light area: 10" x 12"
  • Frame: Stainless steel
  • Surface: Plexiglas, shatter-resistant
  • LED life: 50,000 hours
  • Voltage: 110/240V, 50/60Hz
  • Cord: 6-foot with standard 3-prong plug
  • Certifications: CE, RoHS
  • Warranty: 3-year limited
  • Made in the USA
  • Best for: Small desks, quick sketches, or working in the field

2. Gagne Porta-Trace 16" x 18" LED Light Box

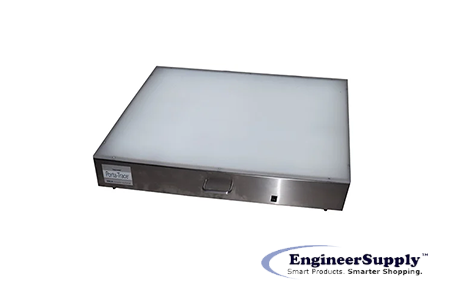

Blog Gagne Porta-Trace 16





This Gagne Porta-Trace 16" x 18" LED Light Box is a nice step up in size. You can lay out sketches, trace larger sections of plans, or work with multiple sheets at once. It provides you with more space without occupying your entire desk. It’s a good pick if you want something between compact and full-size.

Key Features and Specifications:

  • Light area: 16" x 18"
  • Frame: Stainless steel
  • Surface: Thick Plexiglas, scratch-resistant
  • LED life: 50,000 hours
  • Voltage: 110/240V, 50/60Hz
  • Cord: 6-foot, 3-prong plug
  • Certifications: CE, RoHS
  • Warranty: 3-year limited
  • Made in the USA
  • Best for: Medium-sized drafting and tracing

3. Gagne Porta-Trace 24" x 36" LED Light Box

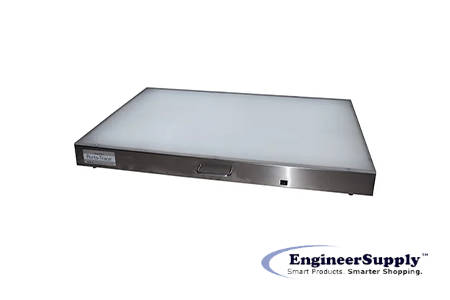

Gagne Porta-Trace 24





If you often work on full-size drawings or need to trace across big sheets, this Gagne Porta-Trace 24" x 36" LED Light Box is for you. It’s the largest one on the list and provides ample space to work without needing to rearrange your sheet. It’s ideal for design studios and professionals working on full-scale projects.
SHOP Gagne Porta-Trace 24" x 36" LED Light Box

Key Features and Specifications:

  • Light area: 24" x 36"
  • Frame: Stainless steel
  • Surface: Anti-glare Plexiglas
  • LED life: 50,000 hours
  • Voltage: 110/240V, 50/60Hz
  • Cord: 6-foot with plug
  • Certifications: CE, RoHS
  • Warranty: 3-year limited
  • Made in the USA
  • Best for: Full-size blueprints, layouts, and large format designs.

4. Gagne Porta-Trace 18" x 24" LED Light Box

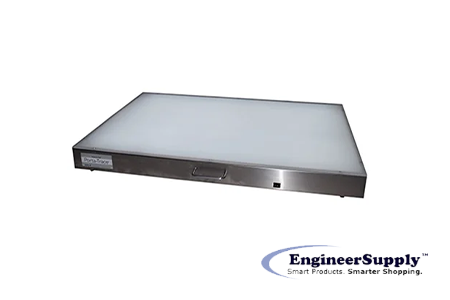

Blog Gagne Porta-Trace 18





This Gagne Porta-Trace 18" x 24" LED Light Box provides a spacious workspace without being too bulky. It’s a solid choice for individuals who want more space than a compact box but don’t require the largest model. It’s perfect for day-to-day tracing, checking prints, or working with design sheets.
SHOP Gagne Porta-Trace 18" x 24" LED Light Box

Key Features and Specifications:

  • Light area: 18" x 24"
  • Frame: Stainless steel
  • Surface: Durable Plexiglas
  • LED life: 50,000 hours
  • Voltage: 110/240V, 50/60Hz
  • Cord: 6-foot, standard plug
  • Certifications: CE, RoHS
  • Warranty: 3-year limited
  • Made in the USA
  • Best for: General use at the office or studio.

5. Gagne Porta-Trace 11" x 18" LED Light Box

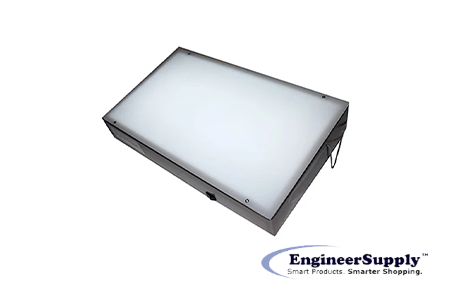

Blog Gagne Porta-Trace 11





This Gagne Porta-Trace 11" x 18" LED Light Box is slightly wider than the 10x12 version. It’s still compact but gives you a little more space for horizontal layouts or side-by-side work. It’s a good in-between size—easy to carry, yet with enough space to be practical for most projects.
SHOP Gagne Porta-Trace 11" x 18" LED Light Box

Key Features and Specifications:

  • Light area: 11" x 18"
  • Frame: Stainless steel
  • Surface: Plexiglas with even light distribution
  • LED life: 50,000 hours
  • Voltage: 110/240V, 50/60Hz
  • Cord: 6-foot, plug-in power
  • Certifications: CE, RoHS
  • Warranty: 3-year limited
  • Made in the USA
  • Best for: Tracing details, travel work, or lighter tasks

Final Thoughts

Let’s be real—good lighting can make your work feel a whole lot easier. Whether you're tracing a detailed plan or just reviewing a layout, the last thing you need is eye strain from bad lighting. Gagne light boxes keep things simple: they’re bright, reliable, and built to take on daily use without falling apart. Bright LED light, strong frames, and clear visibility—Gagne makes tools that help you work better. Find the right size today at EngineerSupply.com to explore the full lineup of Gagne light boxes and get your projects underway.
