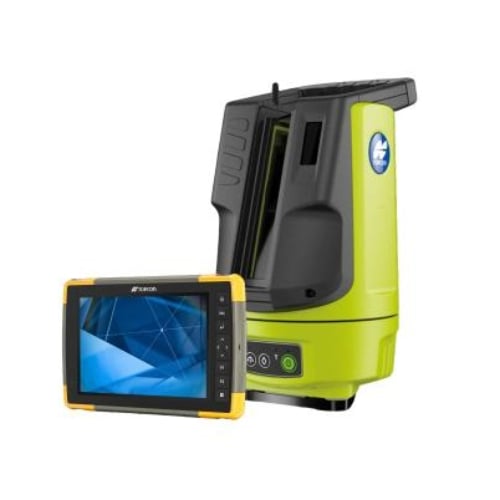

Topcon LN-1000i Layout Navigator

The LN-1000i is designed to directly answer these challenges. It streamlines your workflow by combining a simple, one-person, self-leveling setup with powerful features. You can now measure points reflectorlessly up to 50 meters (164 feet) away, reaching difficult overhead areas with an extended vertical range. This capability drastically reduces the need for frequent setups in congested spaces, saving valuable time on every layout task and ensuring your project stays on schedule

• (1) LN-1000i - 1069315-02
• (1) Prism, ATP2 360 Degree Round - 210152700
• (1) Robotic Pole Carbon Fiber - 60218
• (1) FC/SHC6000/6400 Ram Clip Mount Kit - 1015317-01
• (1) FC-6400 Field Computer - 1067908-01
• (1) Topcon Digital Layout 12 Month Subscription - 1059642-01
• (1) Carbon Fiber Prism Pole Bipod - 1009274-01
• (1) SK-15 Professional Wood/Fiberglass Tripod - 1030650-01
• **Packages can be tailored to your project requirements**

• Work directly from digital plans to reduce layout errors and eliminate manual calculations.
• Capture layout points faster, even without a prism, using reflectorless measurements.
• See your target clearly and lock on instantly with the integrated camera.
• Increase your layout speed and accuracy with a bright green laser pointer, ideal for interior environments.
• Simplify your workflow with one-person operation and automatic self-leveling setup.
• Reflectorless measurement: Capture points up to 50m away without a prism — saving time by reducing setups in congested areas.
• Integrated camera: See your target point and lock on instantly — improving layout accuracy and minimizing rework.
• One-person, self-leveling setup: Start working faster with automated instrument setup — increasing on-site productivity and reducing labor costs.
• High-visibility green laser: Identify layout points clearly even in bright interior environments — ensuring precise placement and avoiding errors.
• Topcon Digital Layout integration: Connect your digital model directly to the field — streamlining workflows and creating a reliable as-built record.
• IP65 durability and external power option: Operate reliably in tough job site conditions for longer — maximizing uptime and protecting your investment.

• Measuring range
  • Prism: 3 to 426.5 ft. (0.9 to 130 m)
  • Reflectorless: 3 to 164 ft. (0.9 to 50 m)
• Angle measurement
  • Method: Absolute rotary encoder method
  • Measuring range: Vertical: +90° to -32°, Horizontal: 360°
  • Accuracy: 1/8" at 500 feet
• Inclination compensation
  • Type: Hydraulic dual-axis inclination sensors
  • Range of compensation: ±6’ (0.1111 gon)
• Distance measurement
  • Method: Retardation survey method
  • Light source: Laser diode
  • Wavelength: 690 nm
  • Laser class: Class 3R
  • Atmospheric correction: Entry of the temperature and atmospheric pressure (Depending on the application) Atmospheric correction factor (ppm)
  • Prism constant correction: Yes
• Auto tracking
  • Method: Image sensor method using a coaxial optical system for beam emission and reception
  • Auto trackable range: 0.9 to 130 m (3 to 426.5 ft.) (When using ATP2/ATP2SII) 0.9 to 50 m (3 to 164 ft.) (When using CM-7PPD)
  • Light source: Laser diode
  • Wavelength: 793 nm
  • Laser class: Class 1
• Ranging tracking optical system
  • Structure: Coaxial optical system for tracking a measurement of distance
  • Objective aperture: Ø 16.5 mm
  • Focus distance: 50 mm
• Features listed:
  • One-man operation
  • Self-levelling
  • Integrated camera
  • Both prism and reflectorless measurements
  • Green laser pointer

Click Here for Brochure
]
