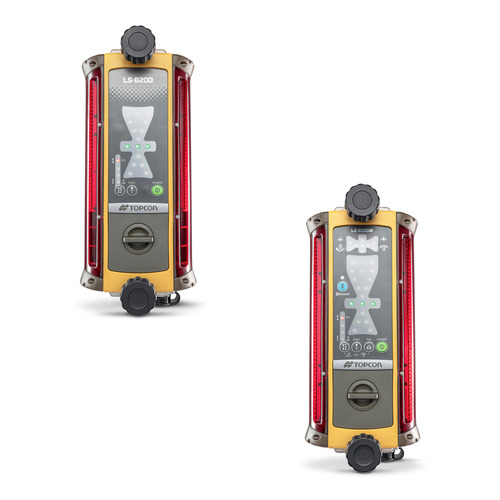

Topcon LS-B200/LS-B200W Machine Control Laser Receivers - (2 Options Available)

• 1063574-03: Non-Wireless Machine Control Laser Receiver

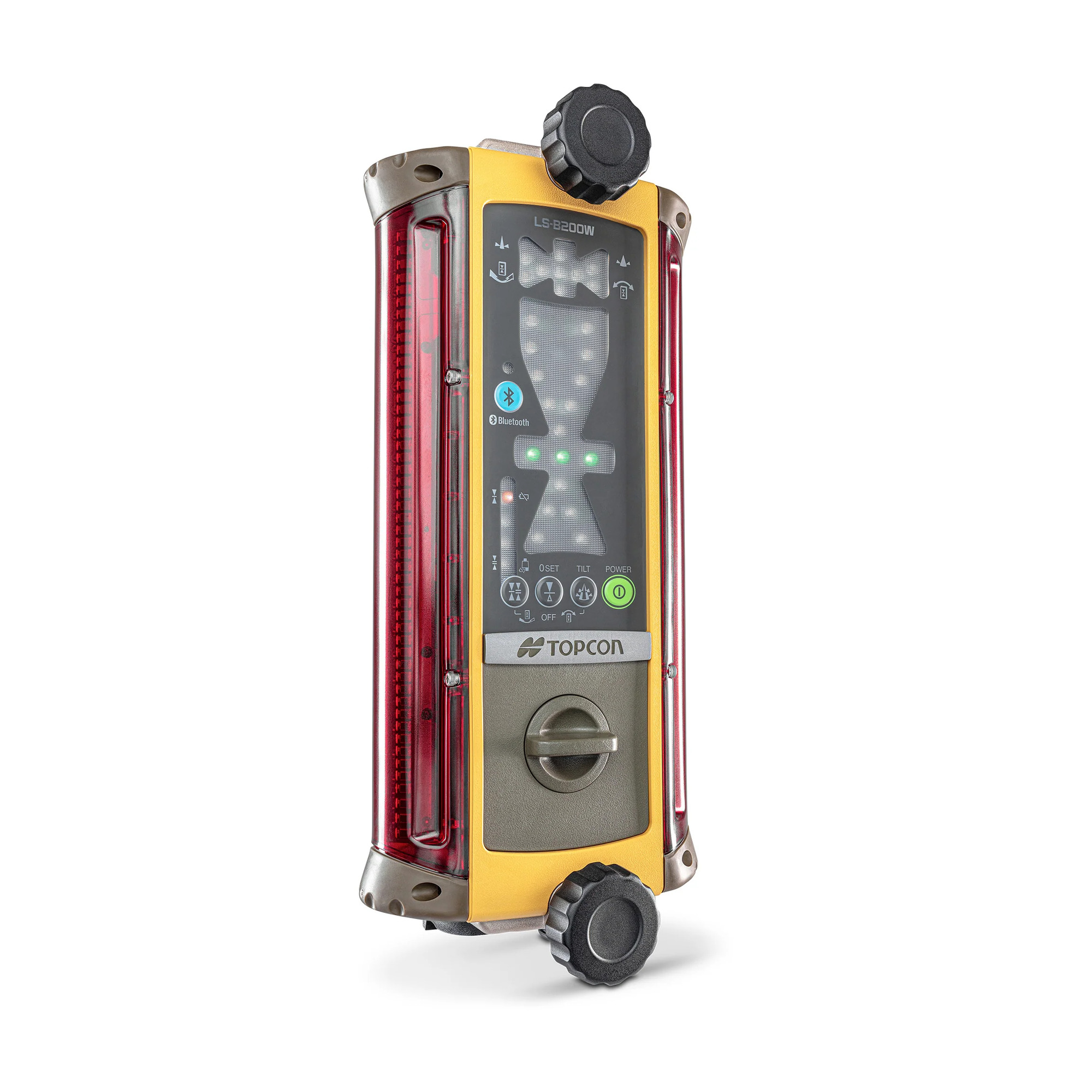

• 1063574-04: Wireless Machine Control Laser Receiver



The LS-B Series of machine-mounted laser sensors are designed to enhance grading and excavating operations by improving both production and accuracy. These depth control sensors are known for their affordability, ease of setup, and versatility. With quick mounting capabilities, LS-B sensors can be easily attached to a wide range of earthmoving equipment. They are ideal for checking grade or assisting in grading work, providing real-time feedback to operators.

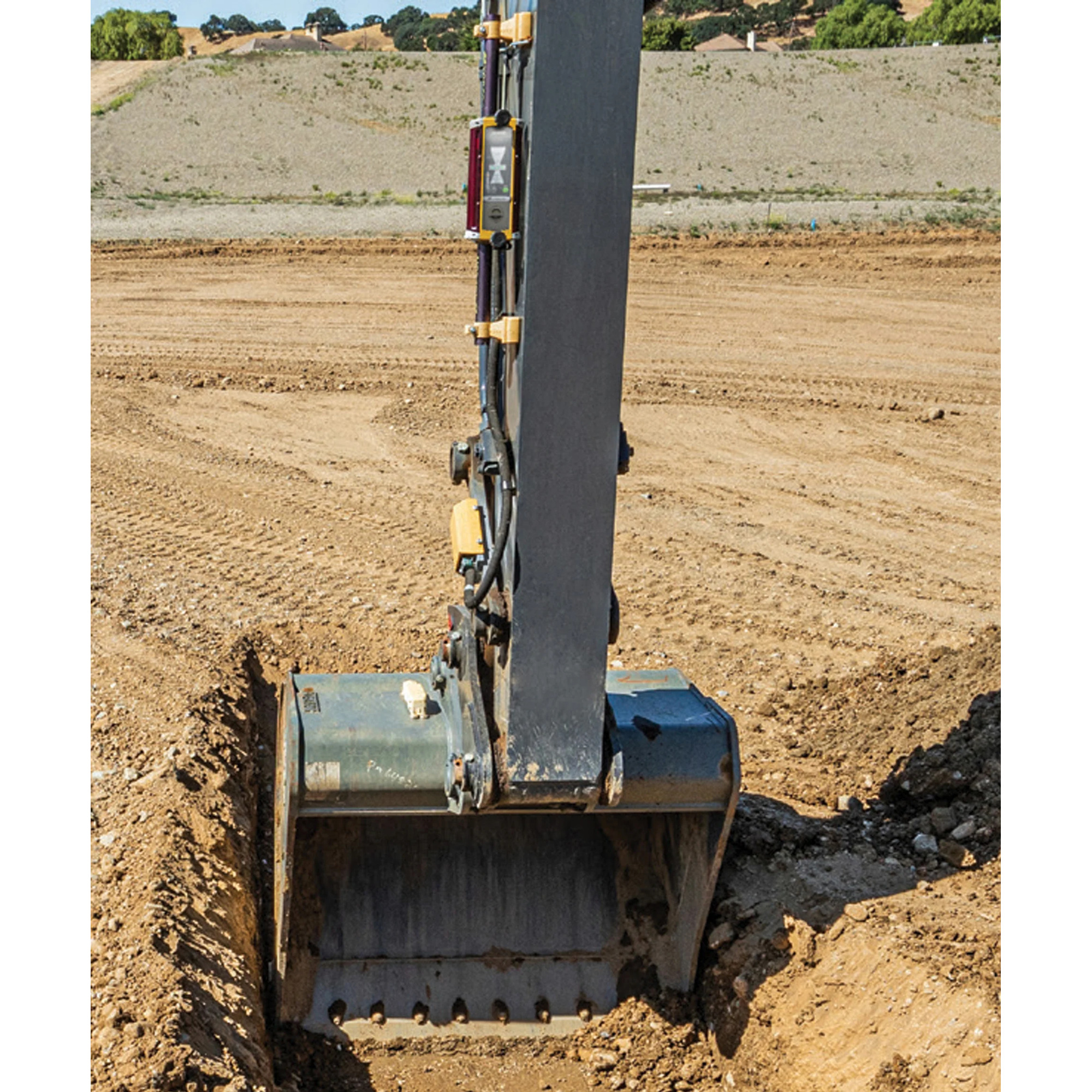

These sensors work seamlessly with Topcon laser transmitters to indicate whether the machine is above grade, below grade, or on grade. This functionality helps operators maintain precise control over excavation and grading tasks. One of the key advantages of the LS-B Series is its portability. The sensors can be conveniently moved between different machines such as dozers, excavators, and scrapers, making them a flexible solution for various job site requirements.

• Ruggedized for a variety of 2D applications
• LEDs for heads up visual operation
• Grade indicators to verify design grade
• High / Low marks for instant notification to grade
• Flexible 360° orientation for faster field work
• Optional audio indicators

• Detection Range: 360° laser detection coverage
• Operating Range: Up to 2,600 feet (with compatible laser)
• Accuracy Settings: Fine, Medium, Coarse (user-selectable)
• Battery Life: Approximately 120 hours of continuous operation
• Water and Dust Resistance: IP66 rated
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Dimensions: 7.8 x 5.1 x 2.2 inches (198 x 130 x 56 mm)
