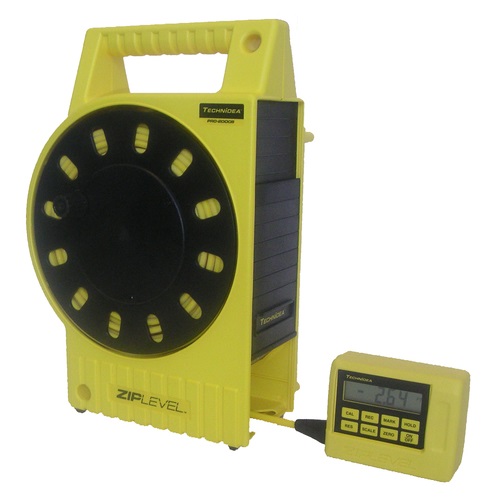

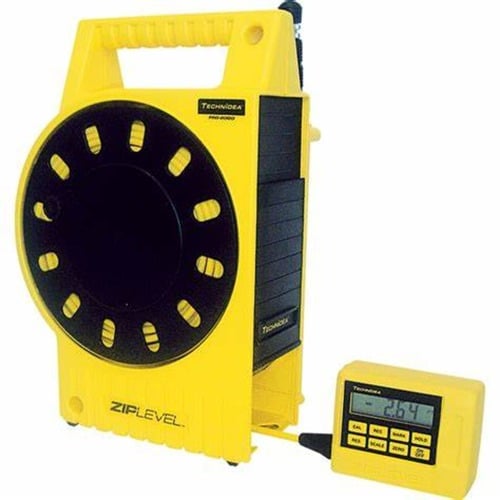

ZIPLEVEL High Precision Altimeter

Model Number: Pro-2000B

Unlike a rotary laser, ZIPLEVEL lets you truly work alone to quickly and easily level and read elevations directly in unmistakably clear digits. No more rods, tripods, sensors, line-of-sight, error with distance, factory calibration and tedious computations. Now you can measure over any distance or elevation on earth, from paper thickness to the height of a mountain without error-inducing tabulation and math.

Features:

Displays elevations directly to: 0.1”, 1/8”, 0.01’, or 2mm; 0.01”, 0.001’, or 0.2mm in high precision (HP) Range
"Sees" around or over visual obstructions
Setup vertical range is equivalent of a 40' (12m) rod and a 20' (6m) tripod
Measure over any elevation or distance on earth without calculations
Built job-site rugged and never needs factory calibration
Auto-Off: Shuts unit off after 4 min. without movement or key presses to preserve battery.
Hold: Freezes the display if not in view – also used with other functions
Zero: Sets display to read zero at a reference – the same as setting the target on a rod.
Scale: For readings in fractional or decimal inches, feet or meters
RES: For faster, less precise rough readings
Mark: Lets you sound leveling or limit tones to supplement the display
Record: Gives Average, Minimum or Maximum of any number of readings.
CAL: Calibrates accuracy of vertical readings – like calibrating a rod.
Temperature: Displays ambient temperature – useful in concrete work or with adhesives.
High Precision: Allows paper-thin measurements to 0.005” (0.1mm) in HP rang
Carry: Allows unlimited ranges without tabulation or calculation
Elevation: For setting readings in sea level elevation at a known survey monument.
Record Data: Stores up to 137 readings for later recall
Inspect/Dump: View stored data or dump to PC for tables, profiles, 3D or Topo map
Monitor: Logs data on a PC to monitor levels of tanks, lakes or streams.

Specifications:

Setup/Pack-Up Time: Typically less than 30 seconds to unpack, zero and read.
Ranges: 40’ vertical (4’ in HP) by 200’ horizontal circle (150’ for PRO-2000B); Unlimited ranges in CARRY function.
Internal Precision: 0.05”; 0.005” in HP.
Typical Isothermal Accuracy: Greater of 0.1” (0.01” HP) or 0.15% of measured elevation.
Temperature Range: -22°F to +158°F (-30°C to +70°C) operating; -40°F to +158°F (-40°C to +70°C) storage.
Drop Resistance: Measurement Module 5’ (1.5m) onto concrete; Base Unit 3’ (1m) onto concrete
Water Resistance: Can be lightly rinsed with a hose but cannot be immersed.
9V Battery Life: 1 year of typical daily use.
Memory Life: Saves latest data and settings indefinitely even without a battery.
PC Serial Port: IR output for optional PC Serial Interface cable
Unipod Length: 15” (38.1cm) to a calibrated 48” (121.9cm).
Weight: Measurement Module 1 lb (0.45kg); Total weight 12 lbs. (5.50 kg), 8 lbs. (3.65kg) PRO-2000B.
Size: Measurement Module with boot 3.75”H x 4.75”W x 1.75”D (9.5cm H x 12.1cm W x 4.5cm D), Base Unit 16.0”H x 10.5”W x 7.5”D (40.6cm H x 26.7cm W x 19.1 cm D).
Warranty: One year parts & labor for mfg defects; 2 year prorated for hydro-pneumatic parts & labor.
