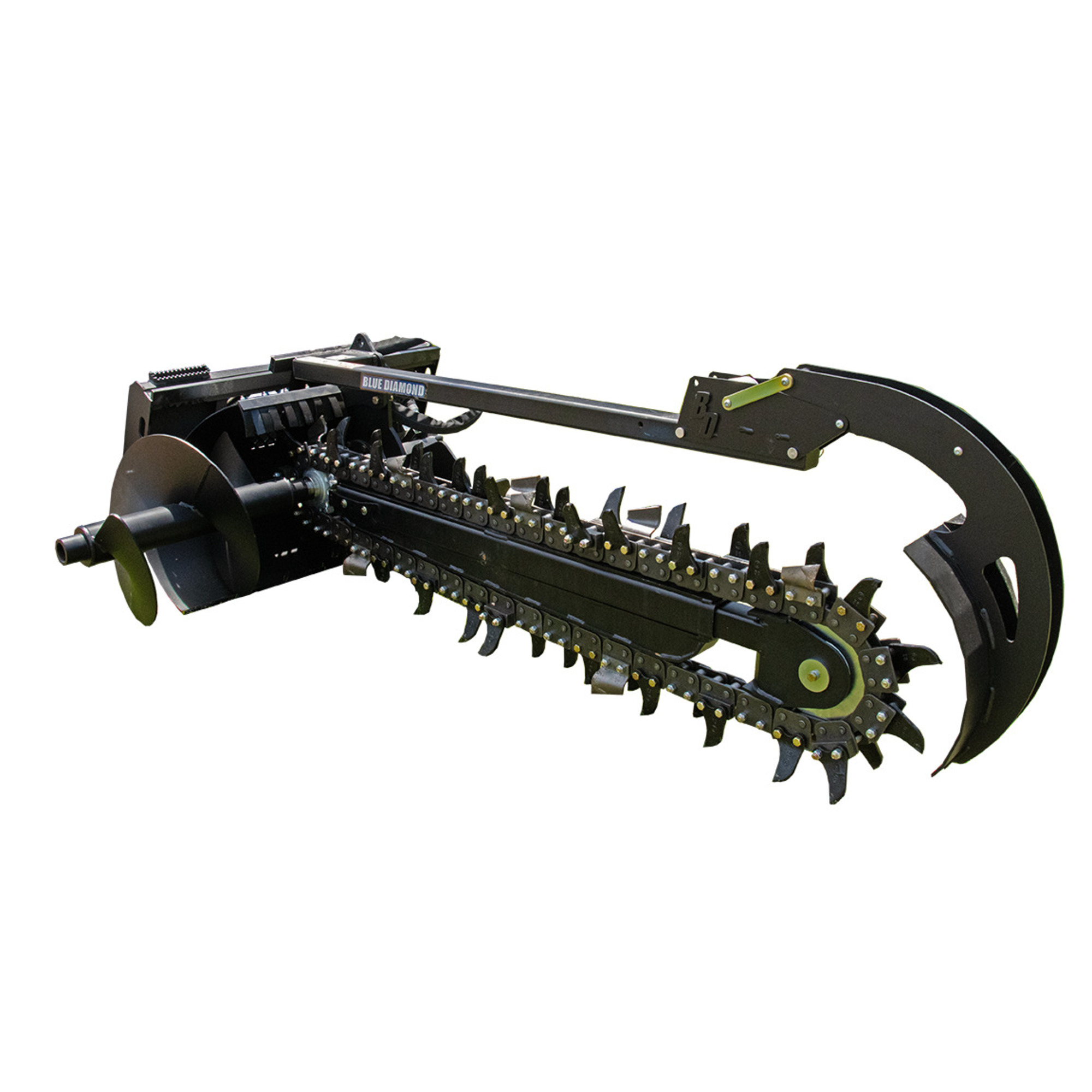

Blue Diamond Trencher High Flow 60" Depth, 6" Combo Chain, Includes Crumber (Requires Mount), 28-45 GPM - 131300-HF

The Blue Diamond Trencher High Flow 60" Depth, Combo Chain, Includes Crumber (Requires Mount), 28-45 GPM is extremely durable and has several features to make it more productive than our competitors’ models. The extended auger carries the dirt farther from the trench to prevent it from falling back in. The self-adjusting crumber brings any residual dirt back to the chain to be removed from the trench for a very clean finish. A selection of chain options is available from dirt to rock and with varying widths. An adjustable foot keeps the trench depth consistent. The Eaton drive motor mounts to an industryleading planetary drive that provides the high torque to the digging chain. This attachment has been designed and built for the serious contractor who depends on production and reliability.

Note: Overlength fee is shipped on a 96" pallet.

• Recommended flow of 28-45 GPM
• Cutting depths up to 60″
• Combo chain with 6″ cutting widths.

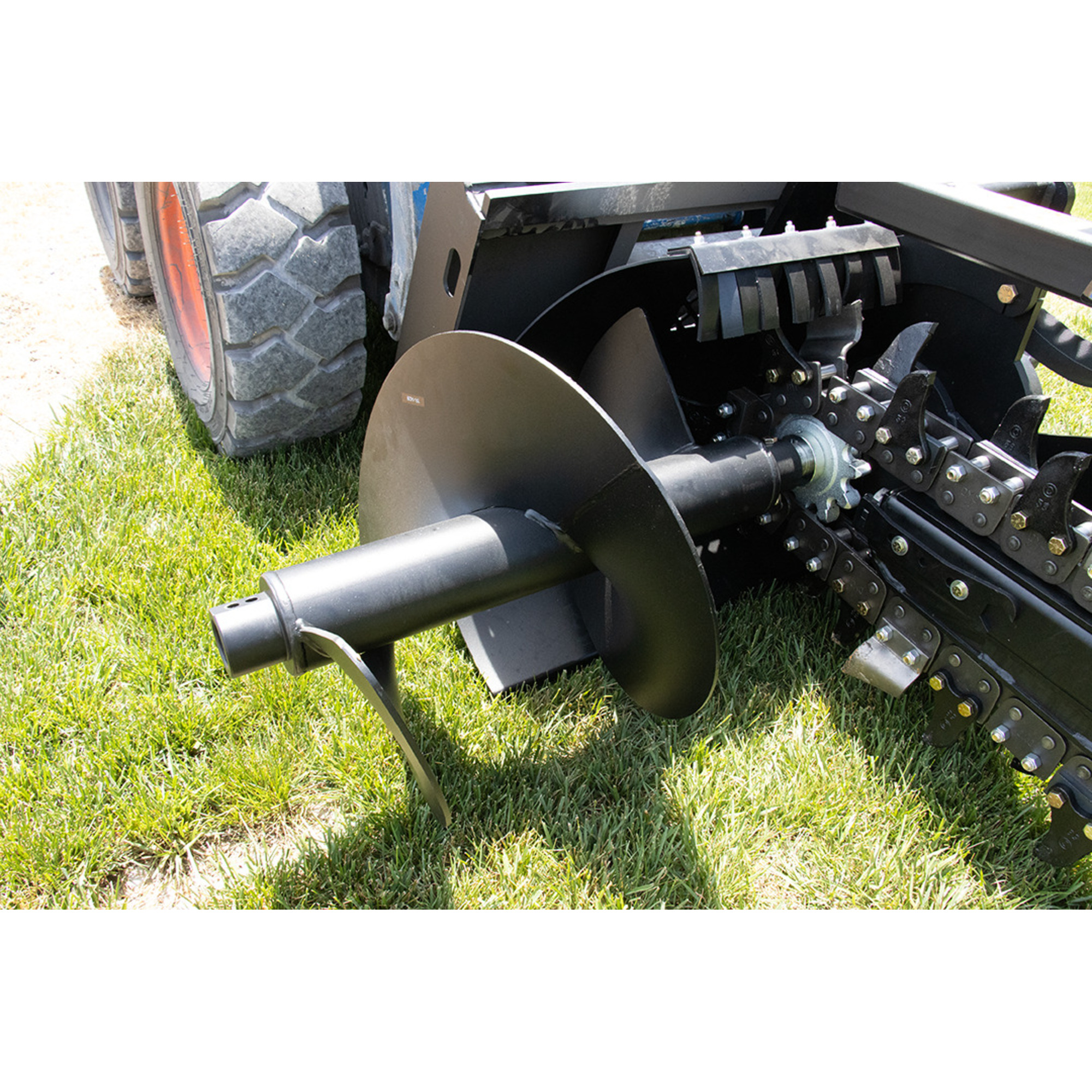

• Extended auger removes debris quickly
• Adjusting foot to keep trench depth consistent
• Spring-loaded, self-adjusting crumber for sweeping the trench clean
• Manual adjusting side shift
• Side auger to prevent dirt falling back into the trench
• Bell Eaton drive motor

• Model: HF - 6” Combo Chain
• Cutting Depth: 60"
• Foot Depth Presets: 30"
• Recommended Flow: 28-45 GPM
• Motor Type: 6K BELL EATON
• Max Pressure: 3500 PSI @ 34 GPM
• Max Flow: 45 GPM @ 2800 PSI
• Max Continuous Power: 67 HP
• Length: 106’’
• Horizontal Height: 33"
• Width: 45"
• Weight: 1,020 lbs
