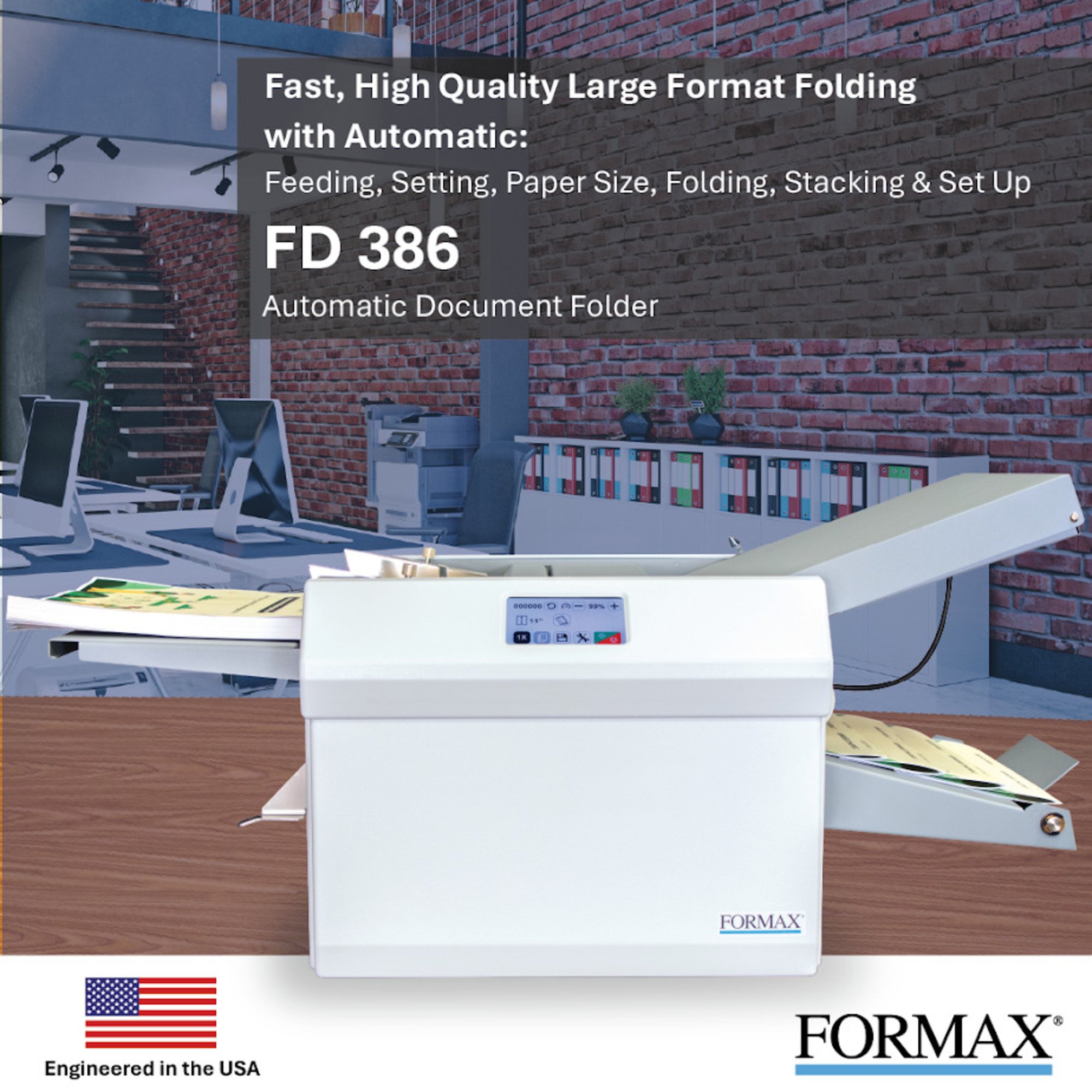

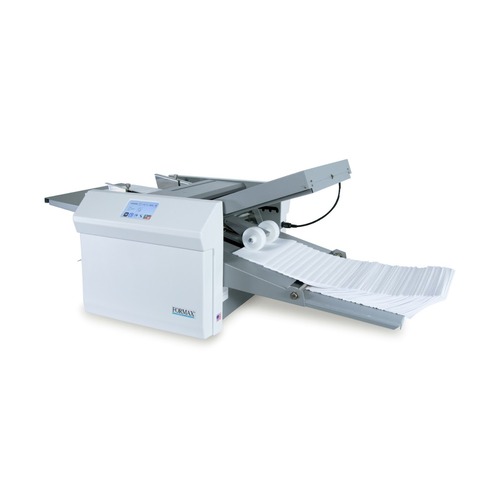

Formax Automatic Touchscreen Document Folder

Model Number: FD 386

Features:

The Formax Automatic Touchscreen Document Folder is a simple and reliable folder that fits any office space and requires minimal maintenance. It can also work with the optional Formax V-Stack36i Vertical Stacker, which stacks up to 22 inches of folded documents, making them easier to unload for further processing.

Operating Features:

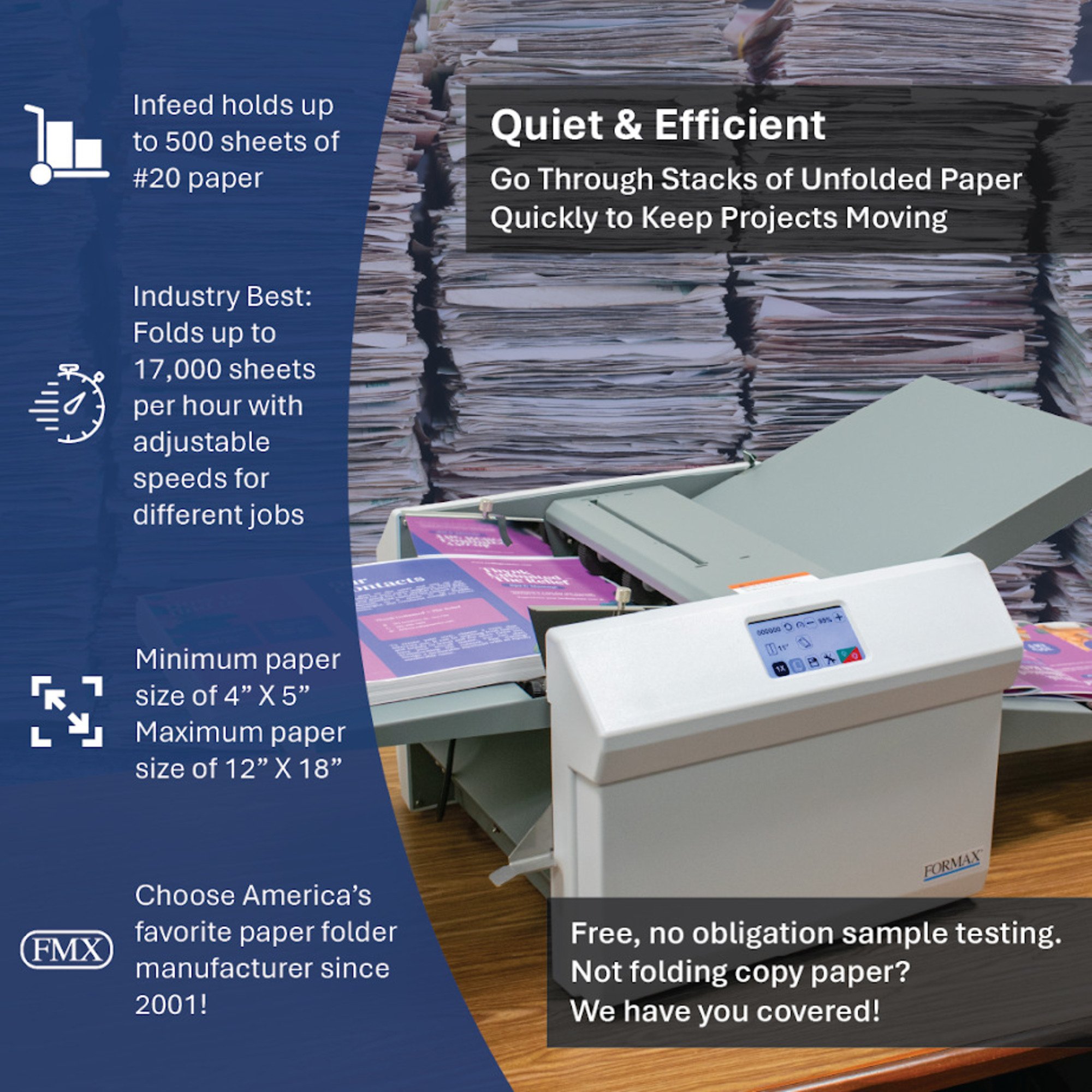

- Fast!: Large jobs are processed quickly at speeds of up to 17,000 pieces per hour

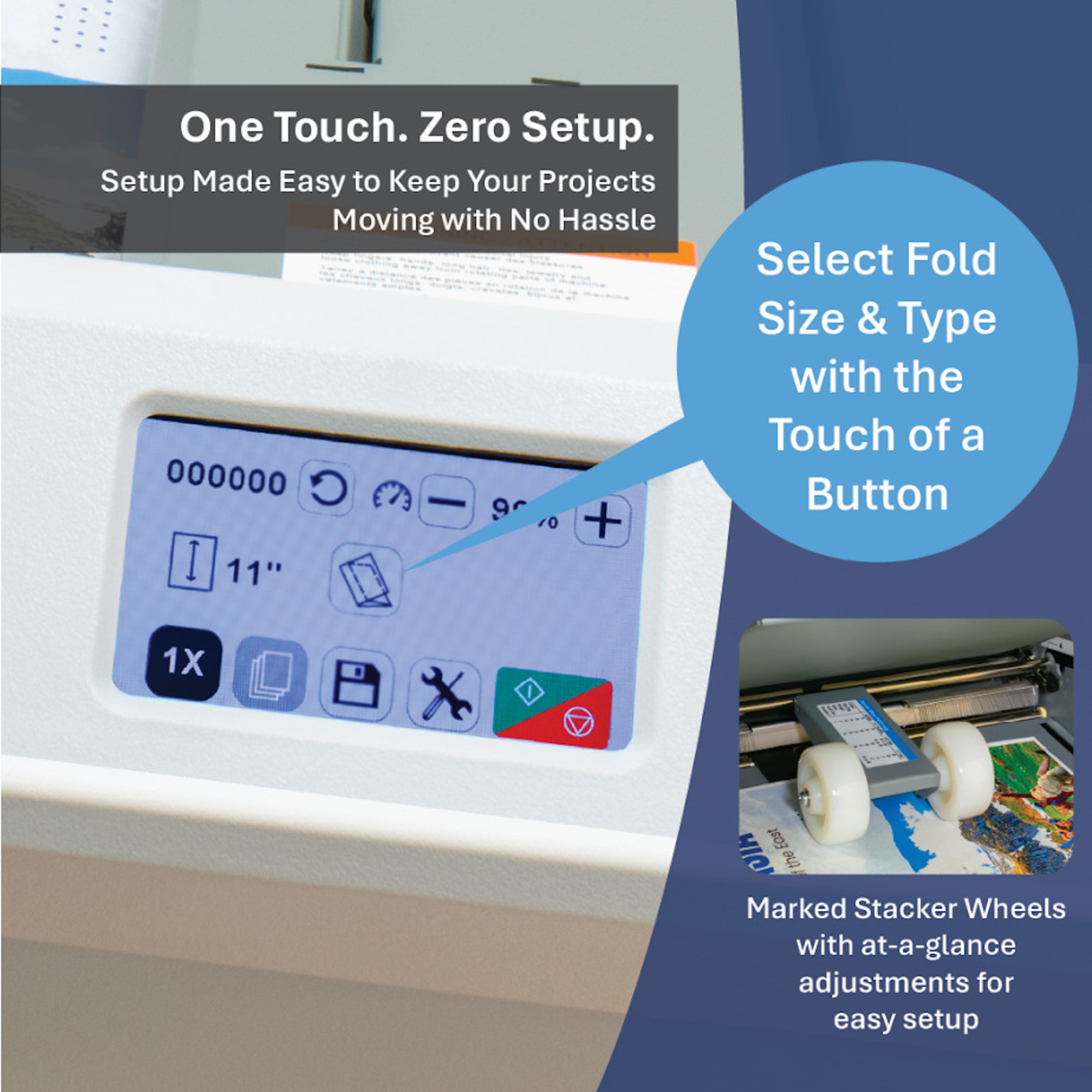

- Color Touchscreen: The large full-color touchscreen control panel allows anyone to walk up and start folding in seconds
- Drop-In Feed System: Three-roller drop-in feed system produces dependable feeding of forms with no fanning required
- Adjustable Stacker Wheels: Stacker wheels can be manually adjusted to neatly and sequentially stack different paper sizes and fold types

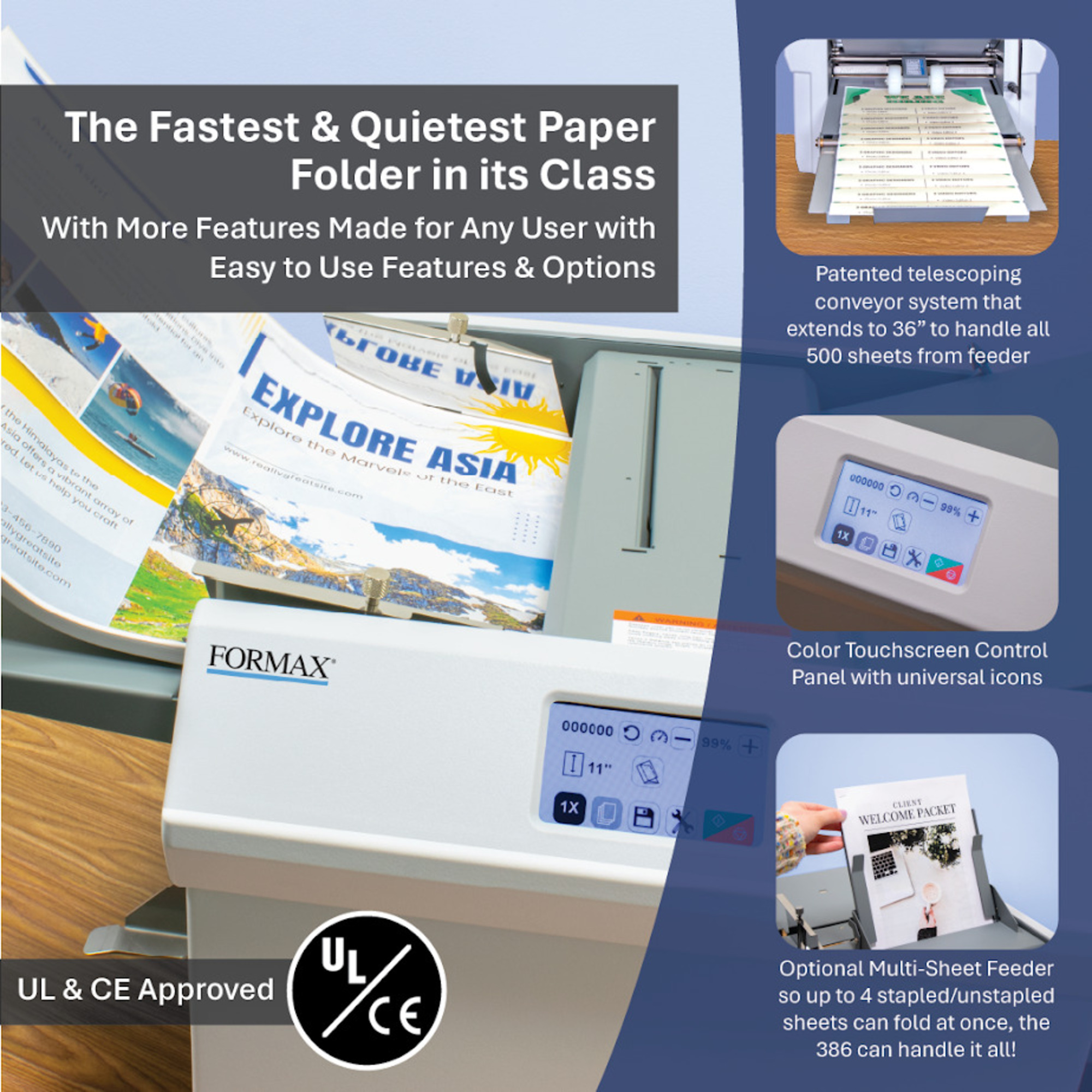

- Telescoping Conveyor System: Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces
- Noise Reduction: Fold plates are enclosed and insulated to reduce operating noise
- 6-Digit Resettable & 8-Digit Life Counters: Provides maximum audit control

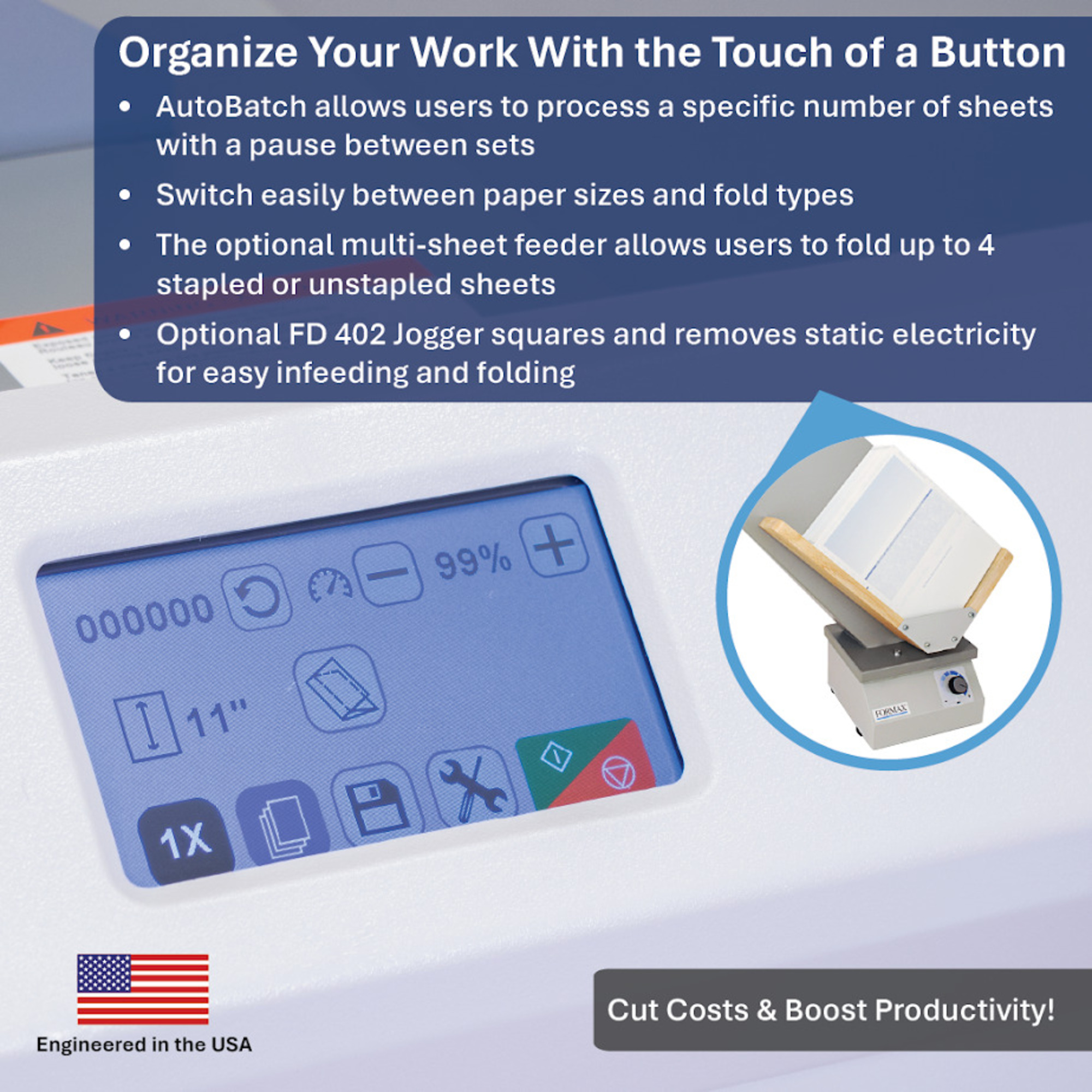

- AutoBatchTM: Programmable to process pre-set number of sheets into sets with a delay
Folding Features:

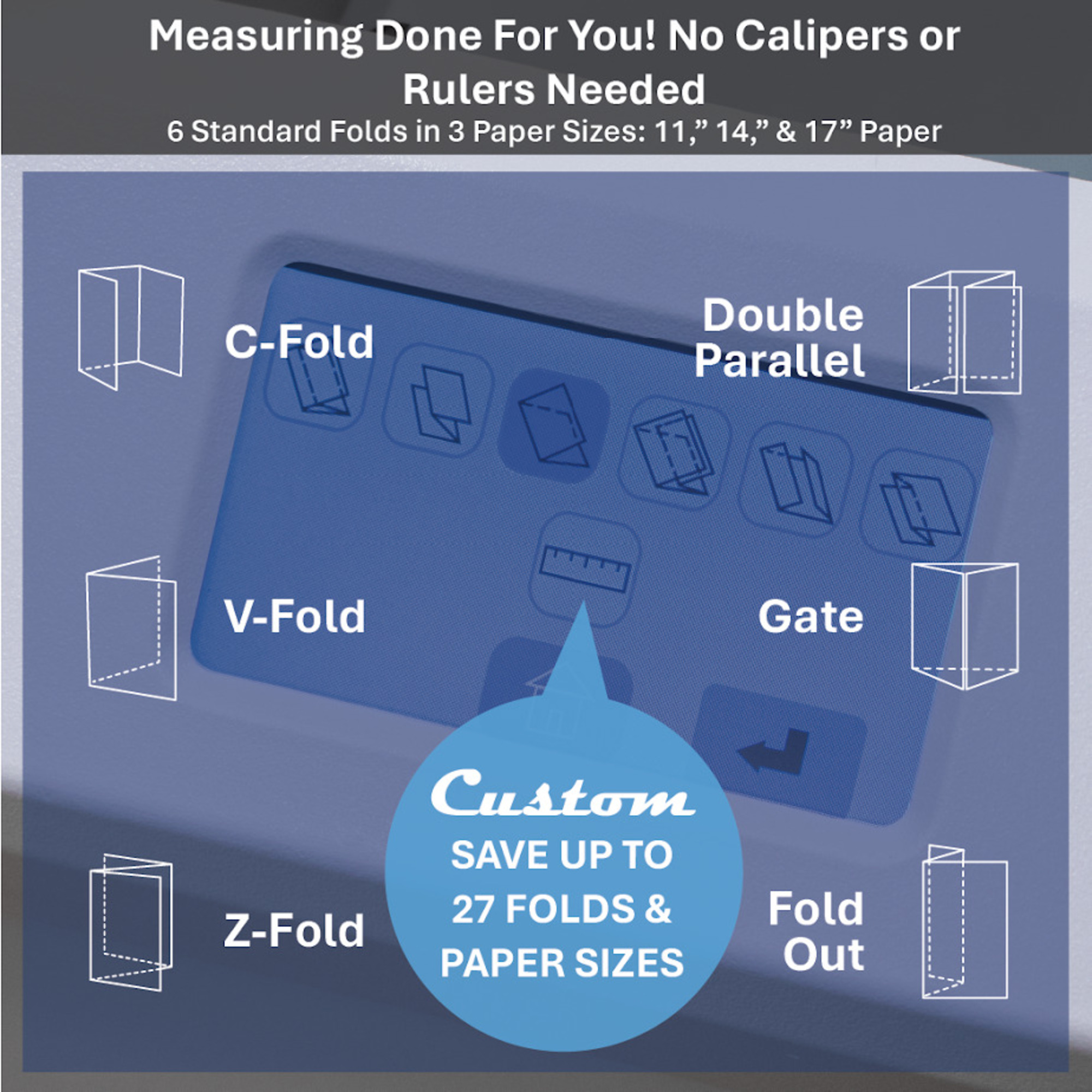

- Six Standard Folds in Common Paper Sizes: Pre-programmed for 6 popular fold types in letter, legal and ledger paper sizes equalling 18 preset fold settings
- Custom Folds: Up to 27 custom folds can be programmed and stored into memory
- Standard Fold Settings Modification: Even the six standard fold types can be modified individually for each paper size for maximum flexibility and customization
- Cross-Folding: A guide is included for two pass operation
Technical Features:
- Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers
- Seven Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
- Removable Roller Cover: Easily removed for improved access to fold rollers and exit area
Options:
- Dedicated Multi-Sheet Feeder: Allows for up to 4 stapled or unstapled sheets to be folded at once, with the ability to select standard or custom folds in letter and legal paper sizes
- Locking Cabinet: Fully enclosed for storage
- V-Stack36i Vertical Stacker: Aligns with FD 386 outfeed and vertically stacks up to 22" of folded documents, making them easier to unload for further processing

Specifications:

Hopper Capacity: Up to 500 forms 20# (75gsm)
Speed: Up to 17,000 sheets per hour – based on 11" (279mm) Z-Fold
Pre-Set Paper Sizes: 11", 14", 17", A5, A4, A3, B6, B5, B4
Custom Folds: Up to 27
Paper Size:
- Min: 3.5" W x 5" L (88.9 W x 127 L mm)
- Max: 12.25" W x 18" L (311 W x 457 L mm)
Pre-Set Folds: Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel
Dimensions:

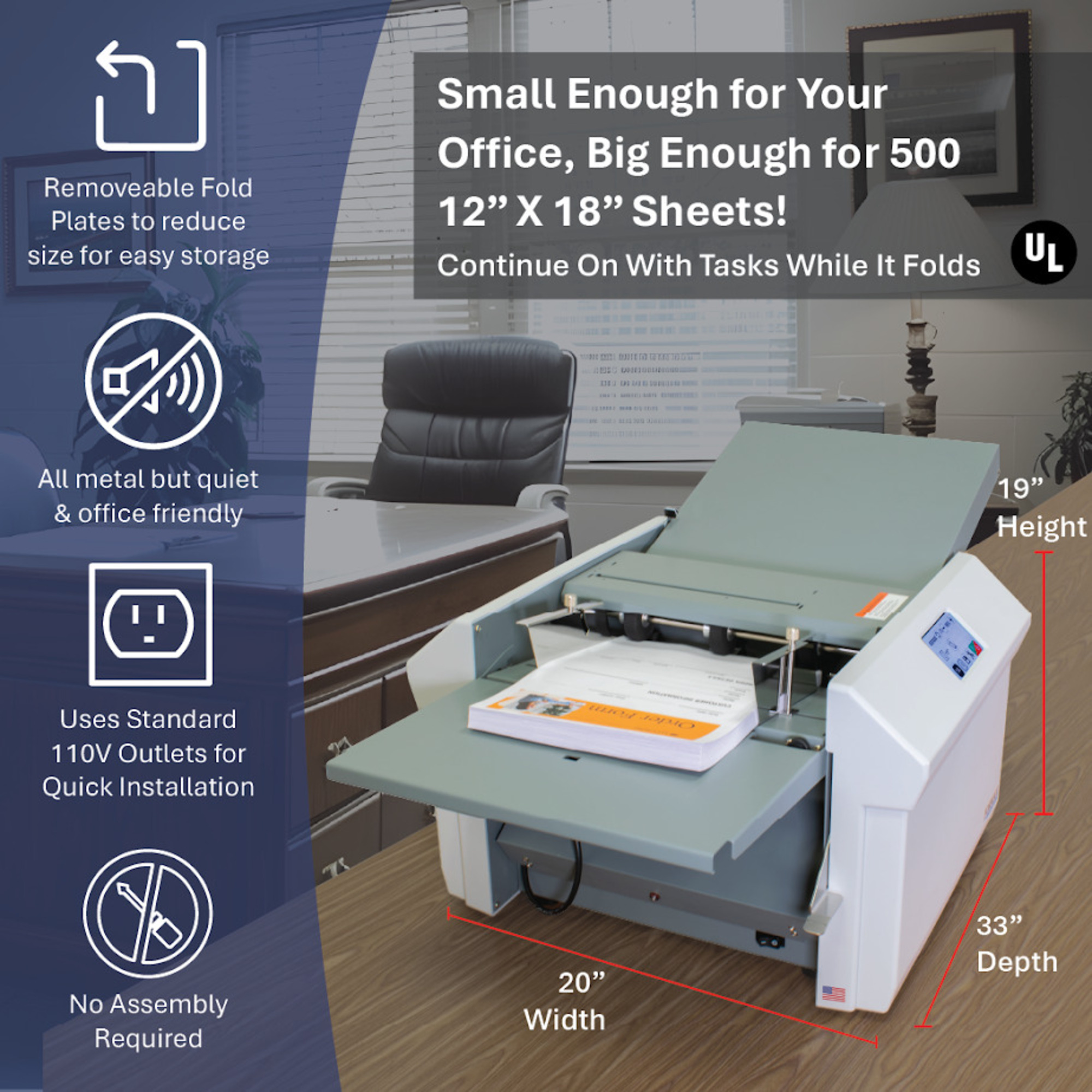

- Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
- Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)
Weight: 73 lbs (33kg)
Power: 110-240VAC 50/60 Hz
Option: FD 300-20 - Multi-Sheet Feeder
Safety Certifications: UL & CE approved
Warranty: On-site 90 day Warranty

MPN: FD 386
UPC:
