Formax Rotary Perforator / Creaser w/ Counter and Variable Speed Control - FD 95

Product Code: ET17125

Condition: New

Your Price	$2,956.00 2956.00
	(You Save 20%)

List Price

$3,695.00

Qty

Accepted Payment Types

Easy Financing Available
as low as $49/mo
for 60 months. Details

Ship By Truck

Liftgate Truck Requested

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

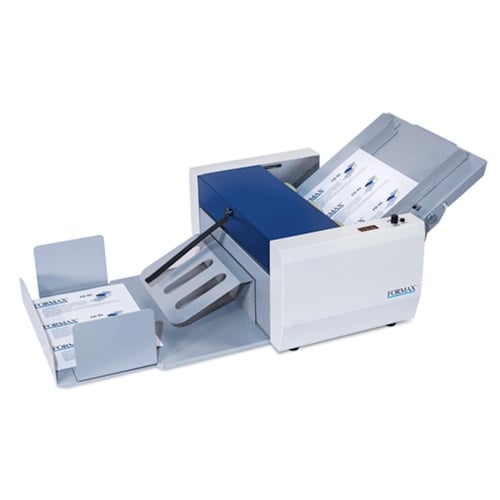

Formax Rotary Perforator / Creaser w/ Counter and Variable Speed Control

Model Number: FD 95

Features:

The Formax Rotary Perforator / Creaser w/ Counter and Variable Speed Control can feed up to 7,080 sheets per hour, and can create up to 5 parallel perforations and/or creases in one pass. You can use perforating to separate multiple printouts, tear-offs, postcards or tickets on a single sheet, and use creasing to fold and prevent cracking in digital printouts.
Standard Features:
- Simple set-up & operation, with automatic feeding
- Up to 5 parallel perforations and/or creases in a single pass
- Standard set-up includes two perforating wheels, one creasing wheel, 2 guide strips
- Interchangeable perforating/creasing wheels
- Variable speed control to better process different paper weights
- Processes up to 7,080 sheets per hour
- Resettable counter for processing accuracy
- Reliable three-tire friction feeding
- Telescoping infeed and outfeed tables to accommodate paper up to 13.8" x 19"
- Adjustable side guides and fine-tuning knobs for precise positioning
- Processes paper weights from 55 - 180gsm
Applications:
- Digital printing
- Postcards
- Tear-offs for tickets, prize drawings
- Check stock
- Tri-fold brochures
- Billing statements with tear-off remit-to forms
Options:
- FD 90-05 Standard Perforating Set: Upper and lower perforating wheels, 2 guide strips
- FD 90-10 Micro-Perforating Set: Upper and lower perforating wheels (17tpi), 2 guide strips
- FD 90-20 Guide Strips to accommodate 55-60gsm paper, set of 2
- FD 90-30 Creasing Wheel Set, set of 2

Specifications:

Speed: Variable, up to 7,080 per hour
Paper Size:
- Minimum: 5" W x 2.5" L (150mm x 64mm)
- Maximum: up to 13.8" W x 19" L (350 x 483mm)
Recommended paper weight: 55 - 180gsm (Note: 55-60gsm paper can be processed with optional guide strips) Optimal paper weight for creasing is 150gsm
Parallel perforations/creases per sheet: Up to 5 in a single pas
Perforating wheel capacity: Up to 5 (includes 2 perforating wheels and 1 creasing wheel)
Feed table capacity (max. stack height): 1.18" (30mm)
Dimensions:
- Closed: 19.5" L x 14" W x 15" H (495 x 356 x 381mm)
- Fully extended: 43" L x 14" W x 15" H (1092 x 356 x 381mm)
- Weight: 41 lbs. (18.5kg)
- Power: 110V, 60Hz (30W)
