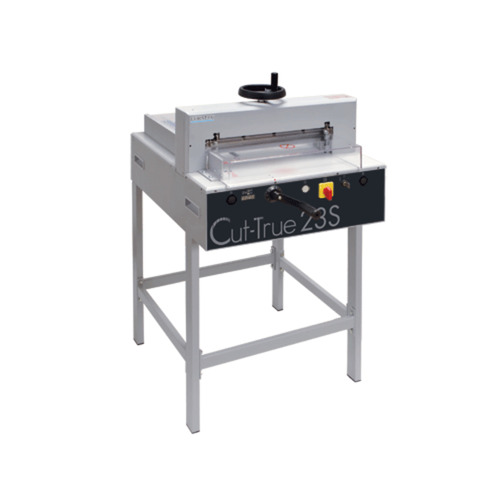

Formax Semi-Automatic Guillotine Cutter w/ Laser Line & Metal Stand - Cut-True 23S

The Cut-True 23S Semi-Automatic Electric Cutter offers precision cutting for paper stacks up to 16.9” wide. This semi-automatic cutter requires very little effort, thanks to its electronically-controlled two-button operation. Simply load a stack of paper, up to 1.77” high, secure with the geared clamp, and press the buttons to engage the hardened-steel Guillotine blade.

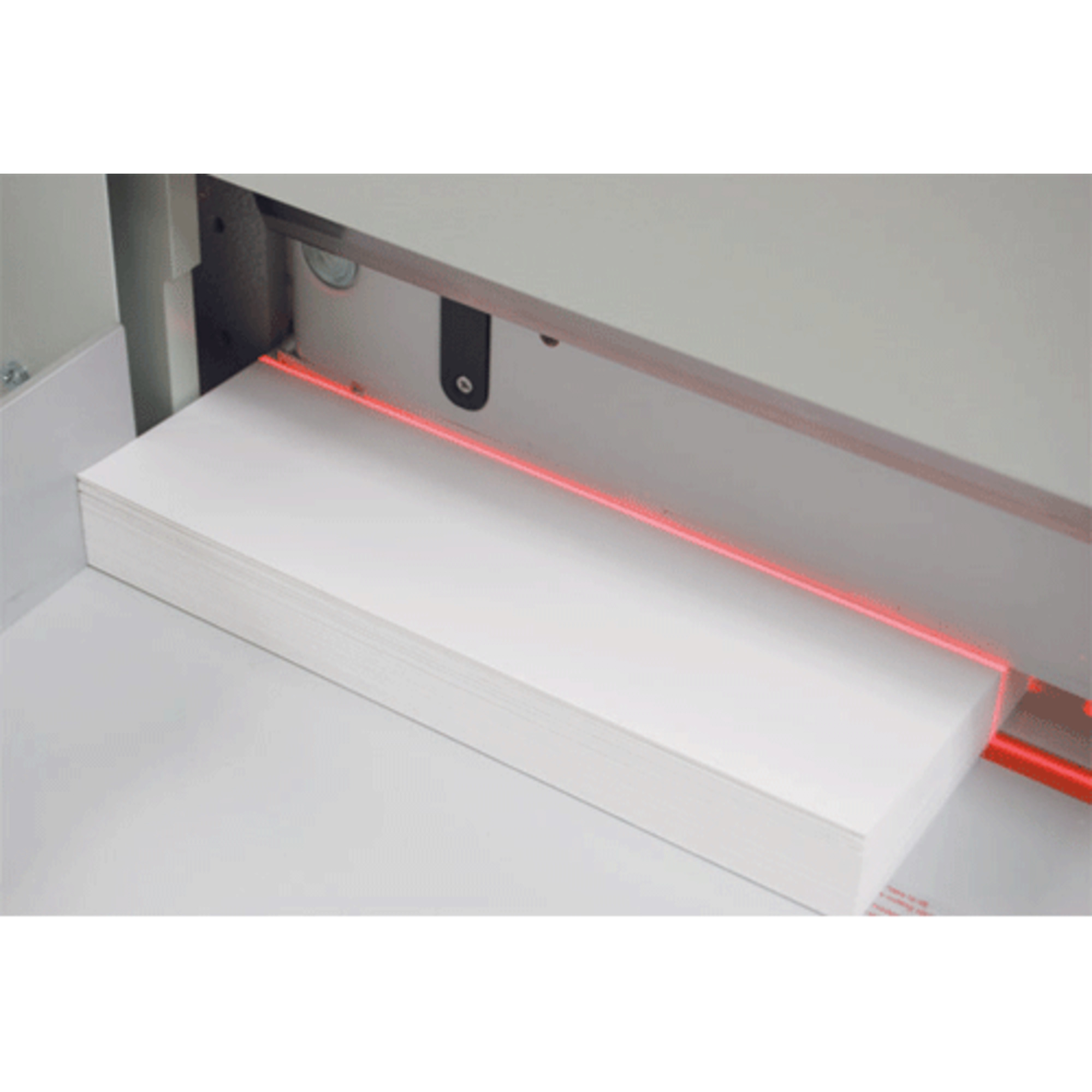

Accurate cutting is easy with its spindle-guided back gauge with LED digital display and calibrated scales. Using these and the LED Laser Line, operators can make fine adjustments, and see exactly where the blade will cut.

The 23S doesn’t sacrifice safety for accuracy. In fact, it features an electronically-controlled front safety cover, transparent rear cover, safety lock with key, blade lock, external blade depth adjustment, easy blade change access from the front of the cutter, and a wooden paper push for safe alignment. The rugged metal stand is included, providing a stable work surface, as well as feet for tabletop use.

The Cut-True 23S is ideal for transforming brochures, invitations and more, with crisp, accurate cuts, and makes a welcome addition to print shops and in-plant finishing operations.

• Cuts stacks up to 1.75” high x 16.9” wide
• Semi-automatic
• LED laser cutting line
• LED back gauge display
• High-quality hardened steel blade
• Main switch and safety lock with key
• Electronically-controlled front safety guard

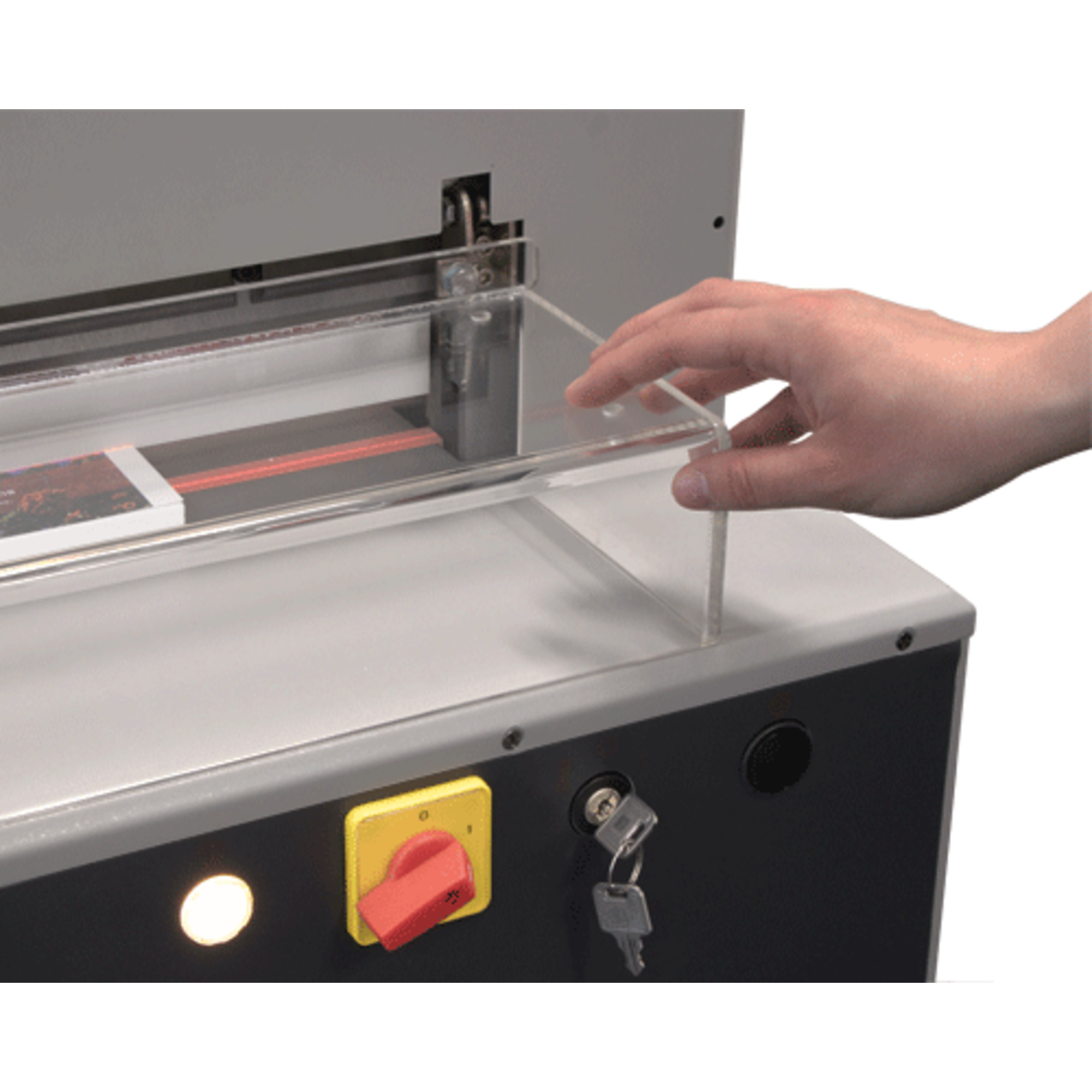

• Transparent rear safety guard
• Geared clamping system
• Automatic blade return
• Calibrated scale for fine adjustments
• Common paper sizes clearly marked
• Adjustable blade guides
• Wooden paper push for safe alignment
• Blade change safety tool included

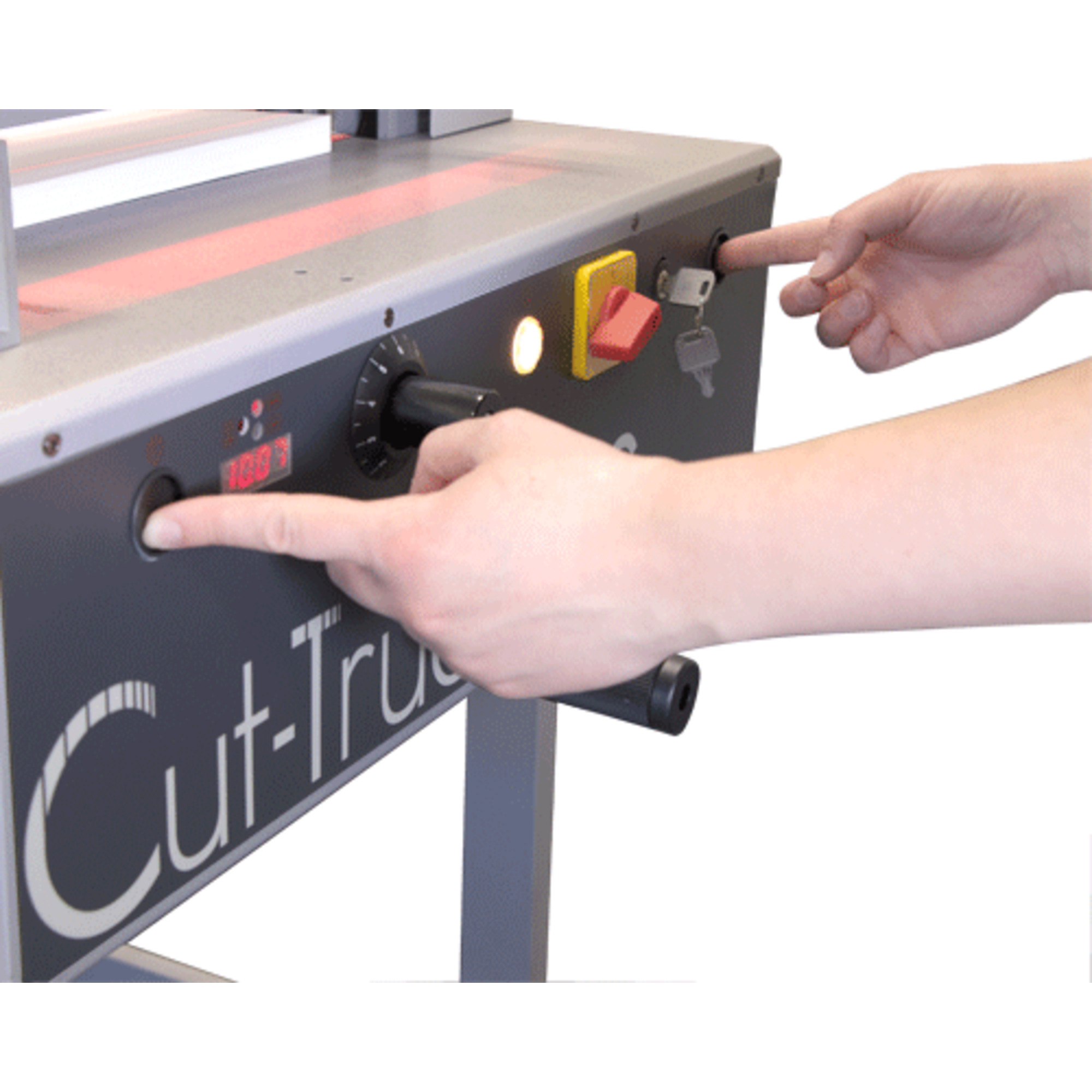

• Cutting Action: Dual-button electric
• Maximum Cutting Width: 16.9” (429mm)
• Maximum Paper Stack Height: 1.75” (44mm)
• Cutting Length Behind Blade: 17” (432mm)
• Table Size in Front of Blade: 8.25” (210mm
• Narrow Cut: 1.89” (48mm)
• Table Size: 24.6” W x 27.5” D (625 x 699mm
• LED Cutting Line: Yes
• Clamp Style: Spindle-guided clamping wheel

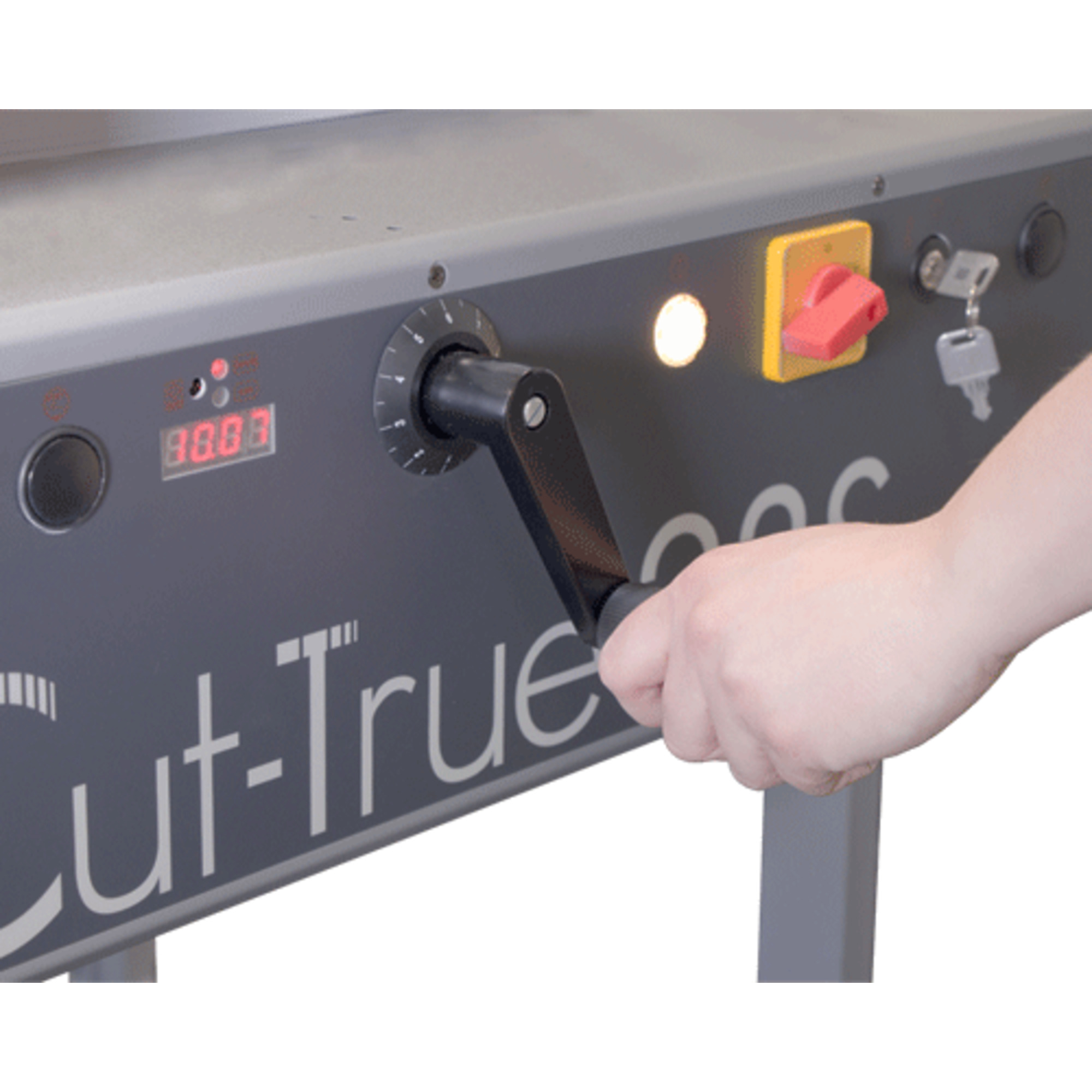

• Back Gauge Adjustment: Manual crank
• Back Gauge Reading: Digital readout, in both standard and metric
• Blade Change Safety Tool: Included
• Dimensions: 46.75”H x 24.75” W x 33” D (1187 x 629 x 838mm)
• Weight: 198.6 lbs (90kg)
• Power Supply: 110V
• Safety Certifications: UL Approved

• 22-10: Replacement Blade
• 15M-20: Replacement Cutting

Click Here for Spec Sheet
