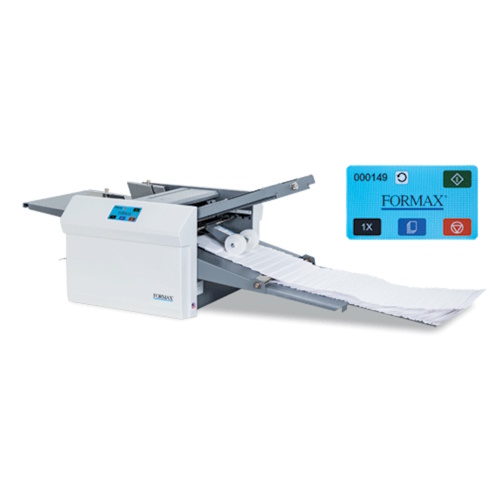

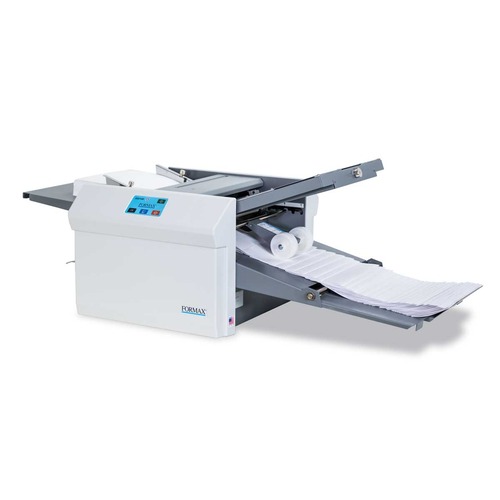

Formax Touchscreen Desktop Office Folder, Manual Setting

Model Number: FD 346

Features:

The Formax Touchscreen Desktop Office Folder is a versatile and reliable folder that can handle various folding applications with speed and ease. It fits any office space and requires minimal maintenance. It is ideal for churches, schools, and small businesses that need a fast and dependable folder for their low-volume folding needs.

Operating Features:
- Fixed Speed: Jobs are processed quickly at speeds of up to 8,600 pieces per hour
- LCD Panel: Keeps an accurate tally of pages processed, with a resettable counter
- Output Conveyor: Adjustable stacker wheels provide neat, sequential stacking of folded documents
- Drop-In Feed System: A three-tire drop-in feed system produces dependable feeding of forms with no fanning required
- Paper Sizes: Handles paper sizes up to 12" x 18"
- Intuitive Graphic Fold Guide: Icons on the chart match those on the fold plates for easy setup
Folding Features:
- Pre-Marked with 4 Standard Folds: Letter, Zig-Zag, Half, and Double Parallel, in 11”, 14” and 17” sizes
- Three-Tire Friction Feed System: Accurately pulls paper into the fold rollers
- Quick-Release Fold Stops: Simply pull the knob, slide the fold stop to the correct setting, and release
- AutoBatch: Process a specific number of sheets with a pause between sets, for easy unloading
- Fine-Tuning Knobs: Located on the end of each fold plate to allow for precise adjustments
Technical Features:
- Rugged Construction: All-metal frame and side covers for durability
- Quick, Easy Setup: Clearly marked fold settings and removable top and bottom fold plates
- Skew Adjustment: Moves feed table left or right to adjust for minor misalignments

Specifications:

Hopper Capacity: Up to 500 forms 20# (75gsm)
Speed: Up to 15,500 sheets per hour – based on 11” (279mm) Z-Fold*, 6 Settings
Pre-Marked Paper Sizes:
- Min: 3.5" W x 5" L (88.9 W x 127 L mm)
- Max: 12.25" W x 18" L (311 W x 457 L mm)
Paper Weight: Up to 30# (112gsm)
Pre-Marked Folds: C, V, Z, Gate, Fold Out and Double Parallel
Dimensions:
- Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
- Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)
Weight: 67 lbs (30kg)
Power:
- FD Model: 110VAC 50/60 Hz
- FE Model: 220VAC 50/60 Hz
Option: FD 300-20 - Multi-Sheet Feeder
Safety Certifications: UL, CUL, and CE approved
Warranty: On-site 90 day Warranty

*Paper weight specifications may vary.
