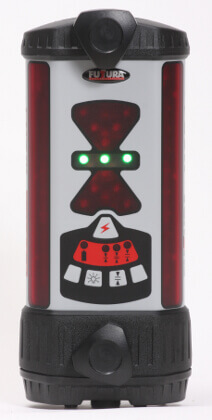

Futtura 360 Degree Machine Control Display Receiver MCR1w

MCR receivers from Futtura are designed to adapt to any earth moving machine which is ideal for grading, trenching and excavating.

Features:
• Wireless remote capability
• completely self-contained
• 360° reception
• selectable accuracy
• waterproof design
• heavy duty construction
• pole mounted (magnetic mount optional)
• low battery indicator
• 75 minute automatic shut off
• selectable bright / dim display

All receivers feature The MCRw receivers work with rotating lasers. The laser provides a reference plane of laser light over the job site. The MCRw is mounted above the machine's cutting edge on grading equipment or on the dipper arm of excavation equipment. The receiver is initially set on-grade to a known desired elevation or benchmark. As the machine is used and the blade or bucket is moved, the operator is given a visual indication of which direction to move the blade or bucket to get to on-grade, effectively checking grade from the cab.

Laser Receiver Specification:
• Vertical reception: 170 mm (6.5")
• Fine: 5 mm (3/16")
• Standard: 12 mm (1/2")
• Wide: 34 mm (1 1/4")
• Power Options: Alkaline - 4 x "C" cell OR Nickel Metal Hydride "C" cell Power cable - 10-30 VDC
• Battery life Alkaline: Up to 100 hours
• Battery life NiMH: Up to 50 hours
• Dimensions (LxWxD) 13.5" x 5.6" x 5.9"
• Weight: 5.4 kg (12 lbs.)
• Mounting Pipe: 42 mm to 50 mm (1.65 to 2") O.D. round tube 38 mm (1.5") square tube
• Operating Temp: -20° to plus 60° C - (-4° F to 140° F)
