Generac 100/200/400A 3P Non-Service Entrance Rated Automatic Transfer Switches - (9 Options Available)

• RTSN100G3: 100A, 120/208 3P, NEMA 3R, Non-Service Rated
• RTSN100J3: 100A, 120/240 3P, NEMA 3R, Non-Service Rated
• RTSN100K3: 100A, 120/240 3P, NEMA 3R, Non-Service Rated
• RTSN200G3: 200A, 120/208 3P, NEMA 3R, Non-Service Rated
• RTSN200J3: 200A, 120/240 3P, NEMA 3R, Non-Service Rated
• RTSN200K3: 200A, 277/480 3P, NEMA 3R, Non-Service Rated
• RTSN400G3: 400A, 120/208 3P, NEMA 3R, Non-Service Rated
• RTSN400J3: 400A, 120/240 3P, NEMA 3R, Non-Service Rated
• RTSN400K3: 400A, 277/480 3P, NEMA 3R, Non-Service Rated


*NOTE: 400A (400 Amp) options are Shipped by Truck and Free Shipping

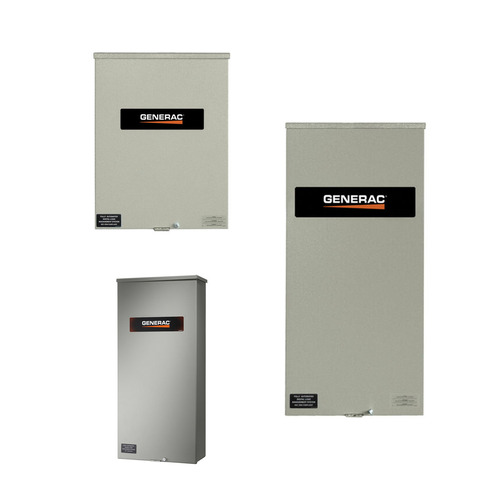

This 100A, 200A and 400A three-phase automatic switch, designed for non-service entrance applications, comes housed in a durable NEMA 3R rated outdoor enclosure. It is equipped with a heavy-duty contactor engineered for reliable, long-term operation. Additionally, it includes a 2-year limited warranty for added peace of mind.

All non-service rated switches are available in 120/208 3ø, 120/240 3ø, and 277/480 3ø. All switches are open transition.

• All non-service rated transfer switches are housed in a steel NEMA Type 3R enclosure, with electrostatically applied and baked powder paint. The Heavy Duty Generac Contactor is an ETL recognized device, designed for years of service. The controller at the generator handles all the timing, sensing, exercising functions, and transfer commands.

• Electrically operated, mechanically-held contacts for fast, positive connections.
• Rated for all classes of load, 100% equipment rated, both inductive and resistive.
• Main contacts are silver plated or silver alloy to resist welding and sticking.
• NEMA 3R (indoor/outdoor rated) steel enclosure is standard.
• 160 millisecond transfer time.
• Single coil design.
• Limited 2 year warranty.

• Utility Voltage Drop-out: <60%
• Timer to Generator Start: 10 Second Factory Set, Adjustable Between 2 - 1,500 Seconds by a Qualified Dealer*
• Engine Warmup Delay: 5 Second
• Standby Voltage Sensor: 60% for 5 Seconds
• Utility Voltage Pickup: >80%
• Re-transfer Time Delay: 15 Seconds
• Engine Cooldown Timer: 60 Seconds (5 minutes on turbo configuration)
• Exerciser: Nexus™: 12 Minutes Weekly and Evolution™: 5 to 12 Minutes Adjustable, Weekly/Bi-weekly/ Monthly
• The Transfer Switch can be Operated Manually Without Power Applied


*When used in conjunction with units utilizing Evolution™ controls.

• Load Transition Type (Automatic): Open Transition
• Enclosure Type: NEMA 3R

Click Here for Owners Manual

Click Here for Spec Sheet

*Spec sheet might include optional accessories not included with this purchase

Please Note the List of Items Below That Are Non-Returnable:

• Special Order items including but not limited to whole house or stationary generators
• Whole goods and attachments, literature, engines, pumps, short blocks, electrical parts, gaskets, liquids, chemicals, sprays
• Items with damaged or non-original packaging
• Installed, used or damaged items

• Air-Cooled Product & short lead time Liquid-Cooled Product (60kW and smaller)
  • Orders cancelled within 6 weeks of original ship date – 10% CANCELLATION FEE
  • Shipped Orders – 15% CANCELLATION FEE
  • Orders cancelled within 72 hours (calendar) of receipt – NO FEE
• Long lead time Liquid-Cooled Product (80kW to 150kW)
  • Orders cancelled within 12 weeks of original ship date – 15% CANCELLATION FEE
  • Shipped Orders – NO CANCELLATION ALLOWED
  • Orders cancelled within 72hrs (calendar) of order receipt – NO FEE
• Protector Plus / Configured Product
  • Cancellation within 20 weeks of original ship date – 10% CANCELLATION FEE
  • Cancellation within 18 weeks of original ship date – 20% CANCELLATION FEE
  • Cancellation within 16 weeks of original ship date – 30% CANCELLATION FEE
  • Cancellation within 15 weeks of original ship date – 40% CANCELLATION FEE
  • Orders cancelled within 72hrs (calendar) of order receipt – NO FEE
