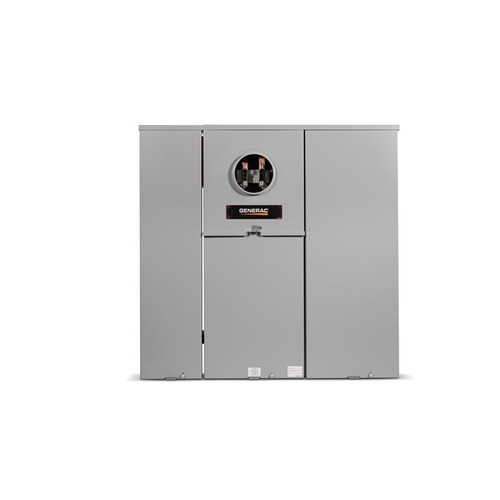

Generac Integrated Meter Transfer Switch with Load Center - RXGUW200A3

TheGenerac Integrated Meter Transfer Switch with Load Center, integrated meter transfer switch with load center combines the automatic transfer switch, the meter socket, 42-circuit load center, and a 225A rated panelborad busbar, saving installation time and labor. The all-in-one design meets NEC® emergency disconnect requirements and reduces overall clutter on the home's exterior for a cleaner, more appealing aesthetic.

The open transition type transfer switch is designed for use with single phase generators using an Evolution™ or Nexus™ controller in optional standby applications. A 4 jaw meter socket, ring type cover, and horn bypass come standard. Optional accessories, such as ringless type covers and 5th jaws, are available to meet local requirements.

The RXGUW transfer switches are housed in an aluminum NEMA/ETL Type 3R enclosure suitable for either outdoor or indoor installation. The Heavy Duty Generac Contactor is an ETL recognized device, designed for years of service. All switches are covered by a 5 year limited warranty.

• Service Rated Generac Automatic Transfer Switches are housed in an aluminum Type 3R enclosure, with electrostatically applied and baked powder paint. The Heavy Duty Generac Contactor is an ETL recognized device, designed for years of service. The controller at the generator handles all the timing, sensing, exercising functions, and transfer commands. The integrated 20 space load center accepts 1 in (25.4 mm) standard, GFCI, AFCI, or tandem circuit breakers from Siemens, Murray, Eaton, and Square D for the most flexible and cost effective install. Utilizing tandem breakers, the load center can be equipped to support up to 40 individual circuits. All switches are covered by a 5 year limited warranty.

• Each switch comes standard with a Smart A/C Management module (SACM) to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware. When used in tandem with Smart Management Modules (SMM), up to 8 loads can be managed, providing the most installation efficient power management options available.

• Utility Voltage Drop-out: <65%
• Timer to Generator Start: 10 Second Factory Set, Adjustable Between 2 - 1,500 Seconds by a Qualified Dealer*
• Engine Warmup Delay: 5 Seconds
• Standby Voltage Sensor: 65% for 5 Seconds
• Utility Voltage Pickup: >80%
• Re-transfer Time Delay: 15 Seconds
• Engine Cooldown Timer: 60 Seconds
• Exerciser: Nexus™: 12 Minutes Weekly and Evolution™: 5 to 12 Minutes Adjustable, Weekly/Bi-weekly/Monthly
• The Transfer Switch can be Operated Manually Without Power Applied


*When used in conjunction with units utilizing Evolution™ controls.

• Model: RXGUW200A3
• Amps: 200
• 42 Circuit Panelboard Amps: 225
• Voltage 120/240, 1ø
• Load Transition Type (Automatic): Open Transition Service Rated
• Enclosure Type: NEMA 3R
• ETL Rating: ETL*
• Withstand Rating (Amps): 22,000
• Lug Range: 350 MCM - #6


*per UL1008 and UL414.

• G0074080 Ringless Style Meter Cover: Replacement outer top cover for ringless style meter retainment. Verify transfer switch has the proper type to meet local code requirement.
• G0074020 Fifth Jaw Metering Kit: Includes all pieces necessary to perform conversion of the standard Four Jaw Meter Socket into a Five Jaw Meter Socket. Verify you have the proper type to meet local code requirements.

• Height - in (cm): 42.5 (107.9)
• Width - in (cm): 43.4 (110.2)
• Depth - in (cm): 7.3 (18.5)
• Weight - lbs (kg): 49.0 (22.2)


*Note: Dimensions are for estimation purposes only.

Click Here for Owners Manual

*Spec sheet might include optional accessories not included with this purchase

Notice: Before selecting this switch, verify that it is approved by your local Utility Service Provider:

• Click here to view the list of utility service providers by state
