Generac XD5000E Diesel Portable, 50 ST - 6864

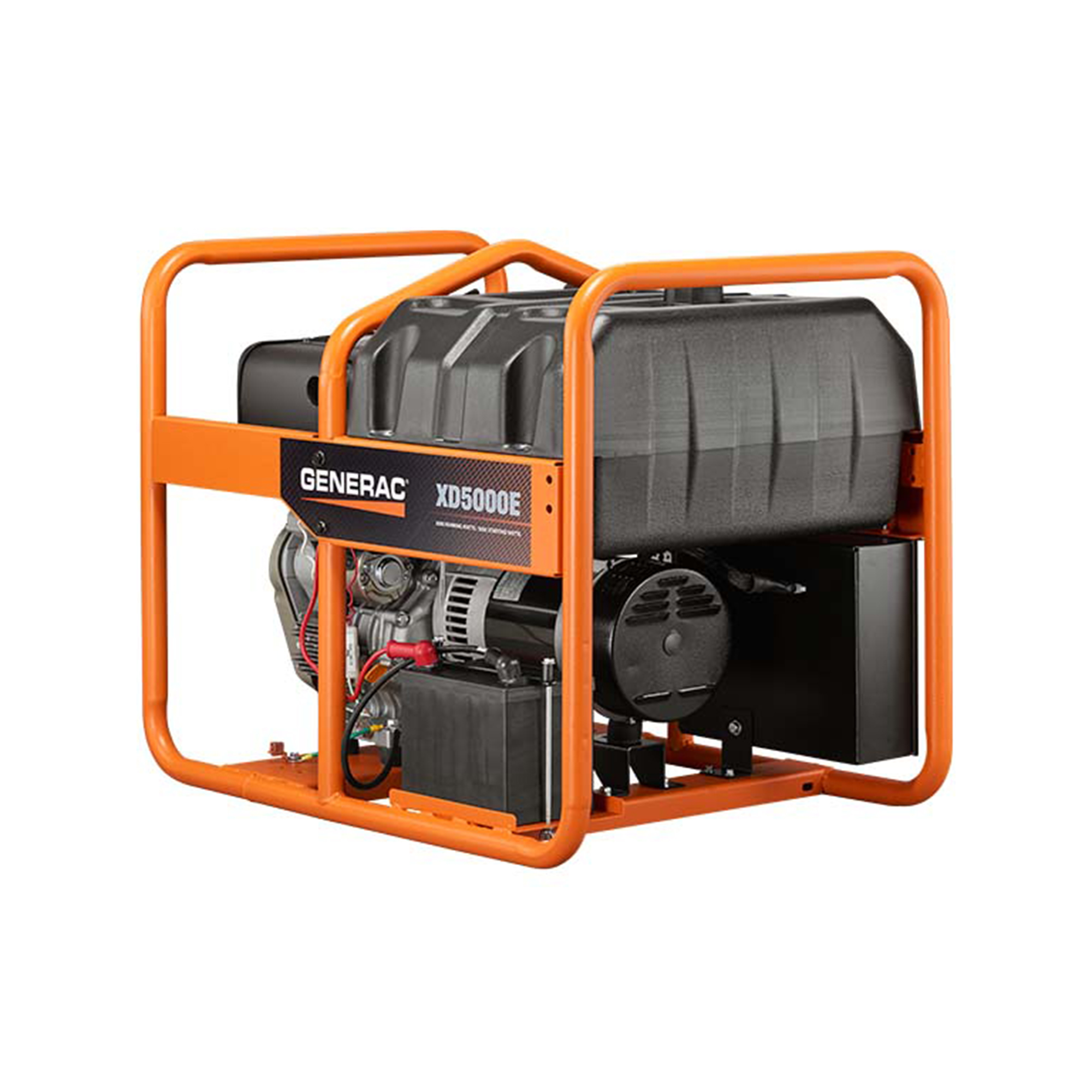

The Generac XD5000E Diesel Portable, 50 ST, featuring True Power™ Technology, ensures less than 5% total harmonic distortion, delivering clean and smooth power for sensitive electronics, tools, and appliances—making it perfect for job sites. It is designed with professionals in mind and includes an hour meter for tracking maintenance, a single-touch electric start for effortless operation, and a robust 1-1/4'' steel frame for maximum durability in tough conditions. Key features include an integrated lifting eye for easy transport and security, idle control to save fuel and minimize noise, and a 12-gallon fuel tank that supports a lengthy run-time of up to 32.4 hours at 50% load, making it suitable for extended workdays and events.

• Diesel power requires less maintenance, is more efficient, and provides a long life.
• Yanmar LW Series 435cc air-cooled direct injection, EPA Tier IV, industrial-grade engine.
• Less than 6% total harmonic distortion for clean, smooth operation of sensitive electronics, tools, and applications.
• Large-capacity 12 gallon fuel tank with fuel gauge provides a long run-time of 32.4 hours at 50% load.
• Compression release lever provides easier starting during cold ambient temperatures.
• Low Oil Pressure Shutdown automatically safeguards engine from damage.
• Fuel primer bulb provides quicker starts when the fuel tank has previously run empty.
• Durable, fully welded 1 ¼” steel frame.
• Integrated lifting eye provides easy transport and security on the jobsite.
• 120/240V selector switch provides full 120V power.
• Single touch electric start provides hassle-free start-up (battery not included).
• Hour Meter with maintenance resets tracks usage and monitors maintenance cycles.

• Product Series: XD5000E
• Model Number: 6864
• AC Rated Output Running Watts: 5000
• Watts AC Voltage: 120/240
• AC Frequency: 60Hz
• Rated AC Amperage: 41.7 / 20.8
• Total Harmonic Distortion: <6%
• Engine Displacement: 435cc
• Engine Type: Air-cooled, 4 cycle, Vertical Cylinder Diesel
• Engine RPM: 3600
• Recommended Oil: SAE 10W-30
• Oil Capacity qt (L): 1.7 (1.6)
• Lubrication Method: Pressure
• Fuel Shut Off : On Fuel Tank
• Starting Method: Electric with Recoil Back-up
• Battery Included: No
• Battery Type: 12V 35Ah, Group U1
• Battery Part No.: N/A (purchase locally)
• Battery Dimensions: Group U1 has a standard case size
• Low Oil Shutdown Method: Low Pressure
• Neutral Bonded to Ground: Yes
• Start Switch Type: Start/Run/Off
• Start Switch Location: On the control Panel
• Fuel Gauge: On Cap
• Fuel Tank Capacity gal (L): 12 (45.4)
• Run Time at 50% of Rated Load (Hours): 32.4
• Warranty- Residential: 2 Year Ltd
• Warranty- Commercial: 2 Year Ltd
• Included: Engine Oil, Owner's Manual

• Length in (mm): 33.1 (840.74)
• Width in (mm): 22.5 (570)
• Height in (mm): 25.6 (650)
• Extender Length in (mm): 35.75 (905) Handle Down
• Carton Length in (mm): 33.9 (861.06)
• Carton Width in (mm): 24 (608)
• Carton Height in (mm): 31.6 (803) with pallet
• Unit Weight lbs (kg): 252 (114)
• Shipping Weight lbs (kg): 257 (117)

Click Here for Owners Manual

Click Here for Spec Sheet

*Spec sheet might include optional accessories not included with this purchase
