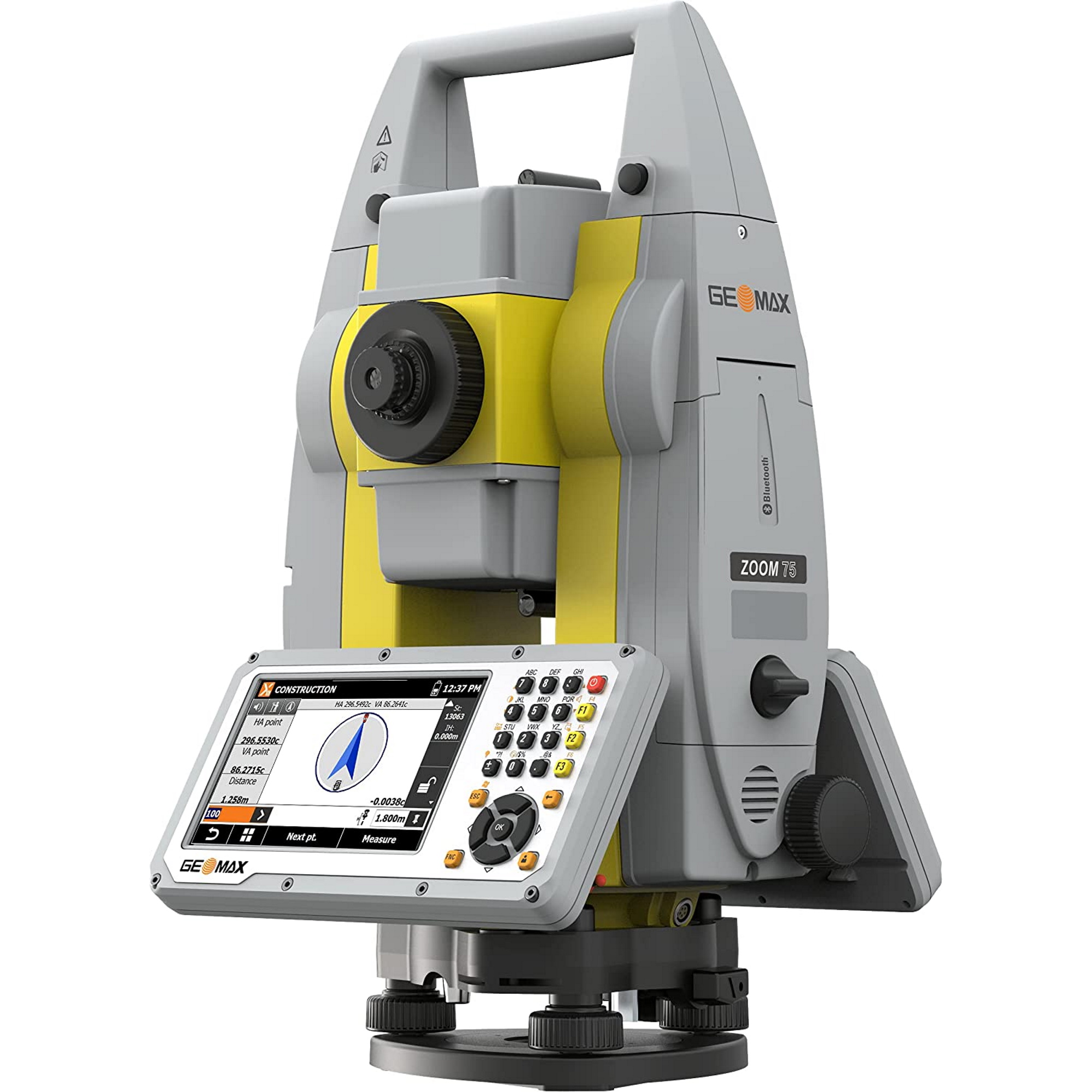

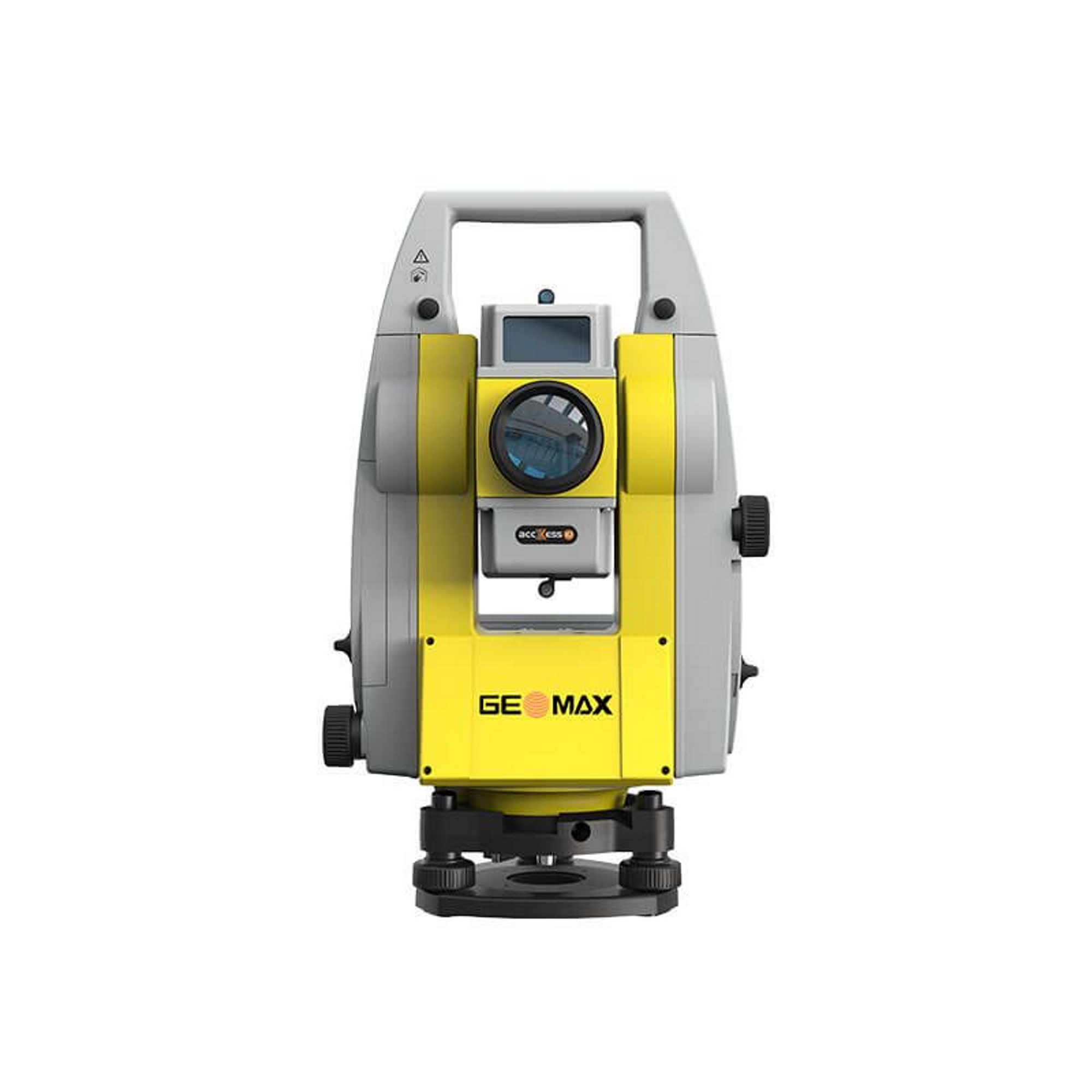

GeoMax Zoom75, 2" A10 Robotic Total Station Package - 6017098

GeoMax Zoom75, 2" A10 Robotic Total Station Package

Model Number: 6017098

Features:

• Large 5" VGA touch screen
• Powerful processor - easy & fast handling of big files
• Automatic data backup
• GeoTRAil prism search
• Field software: running on Android and/or Windows
• Field controllers: GeoMax or your own device
• No maintenance cost for field software
• Latest Hexagon technology, Stress-free equipment: PIN/ PUK – anti-theft feature
• Zoom75 robotic TPS is a smart, affordable choice for both novice and experienced surveyors.
• As a reliable one-person total station, the Zoom75 has an optional long-range Bluetooth handle, along with the GeoTRAil function that finds your prism based on the GNSS position transferred from your field controller.
• Combined with the X-PAD field software, the user-friendly and flexible solution makes it easy to start digitising your construction site.
• Upload your plans to the TPS, and conveniently display 3D renderings and edit your BIM modules on-site, using the large screens available on our GeoMax robotic total stations.
• Upload your plans onto the X-PAD Ultimate field software or into the TPS, and conveniently edit the CAD drawings on-site on the big screen of the GeoMax robotic total stations.
• Big files can be handled easily and fast thanks to the strong performing processor of the Zoom75.
• X-TILT automatically calculates a point position by tilting the tablet attached to the prism pole, in two directions.
• Equipped with the long-range Bluetooth® handle, the Zoom75 transforms into a true one-person total station.
• It supports the advanced prism search, based on the GNSS position of the controller, mounted on the pole.
• As there is no need for special, expensive and power-consuming active prisms, this total station is ideal on any worksite.
• Zoom75 keeps your pole lightweight and convenient to carry all survey-day long!

Specifications:

Angle Measurements

• Accuracy: 2" (0.6 mgon)
• Display resolution: 0.1" (0.1 mgon)
• Method: Absolute, continuous, diametrical
• Compensation: Quadruple axis

Telescope

• Magnification 30x

Distance Measurements to Std. Prism Accuracy/Time (Typical)

• Single (fast): 2 mm + 1.5 ppm / 0.8s
• Standard: 1 mm + 1.5 ppm / 2.4s
• Continuous: 3 mm + 1.5 ppm / < 0.15s
• Range: up to 3500m

Distance Measurements - Reflectorless

• Range: accXess5 / accXXess10, 500 m / 1000 m
• Accuracy: 2 mm + 2 ppm*
• Time: Typ. 2-6 sec
• Precise capture: 8x20 mm at 50 m

Interface

• Keyboard: Full alphanumeric; 25 keys; illuminated (2nd optional)
• Display: 5" WVGA 800x480 colour and touch with LED backlight
• Data recording: 2 GB internal memory; removable SD card and USB stick
• Ports: Serial; USB; internal Bluetooth®; long-range Bluetooth handle External power and WLAN
• Operating system: Microsoft® Windows® EC 7.0

Software

• Operating System: Open Windows CE
• Open for 3rd party SW: Yes
• Basic Package: Fully flexible*****
• Advance Package: Fully flexible*****

Motorisation

• Technology: Hybrid Drives
• GeoTRAil - GNSS based prism search: 100 g/sec (Speed)
• TRack - Automatic prism logging: 800 m at round prism (Range), 90 km/h at 100m (Max speed)
• AiM - Automatic prism fine aiming: 1,000 m at round prism (Range), 1" (Hz/V accuracy), Image processing (Technique)

NAVLIGHT ™ - Alignment Aid

• Range: 5 m to 150 m
• Accuracy: 5 cm at 100 m

Physical Specifications:

• Weight: 5.0 - 5.3 kg (w/o battery and tribrach)
• Operating- / storage temperature: -20° C to 50° C / -40° C to 70° C
• Protection class: IP55 dust and waterproof rating
• Humidity: 95%, non-condensing

Power Supply

• Internal battery: Removable Li-Ion 4.4 Ah / 7.4 V
• Operating time: Up to 8 h **

Plummet

• Type: Laser point, adjustable brightness
• Accuracy: 1.5 mm at 1.5 m instrument height

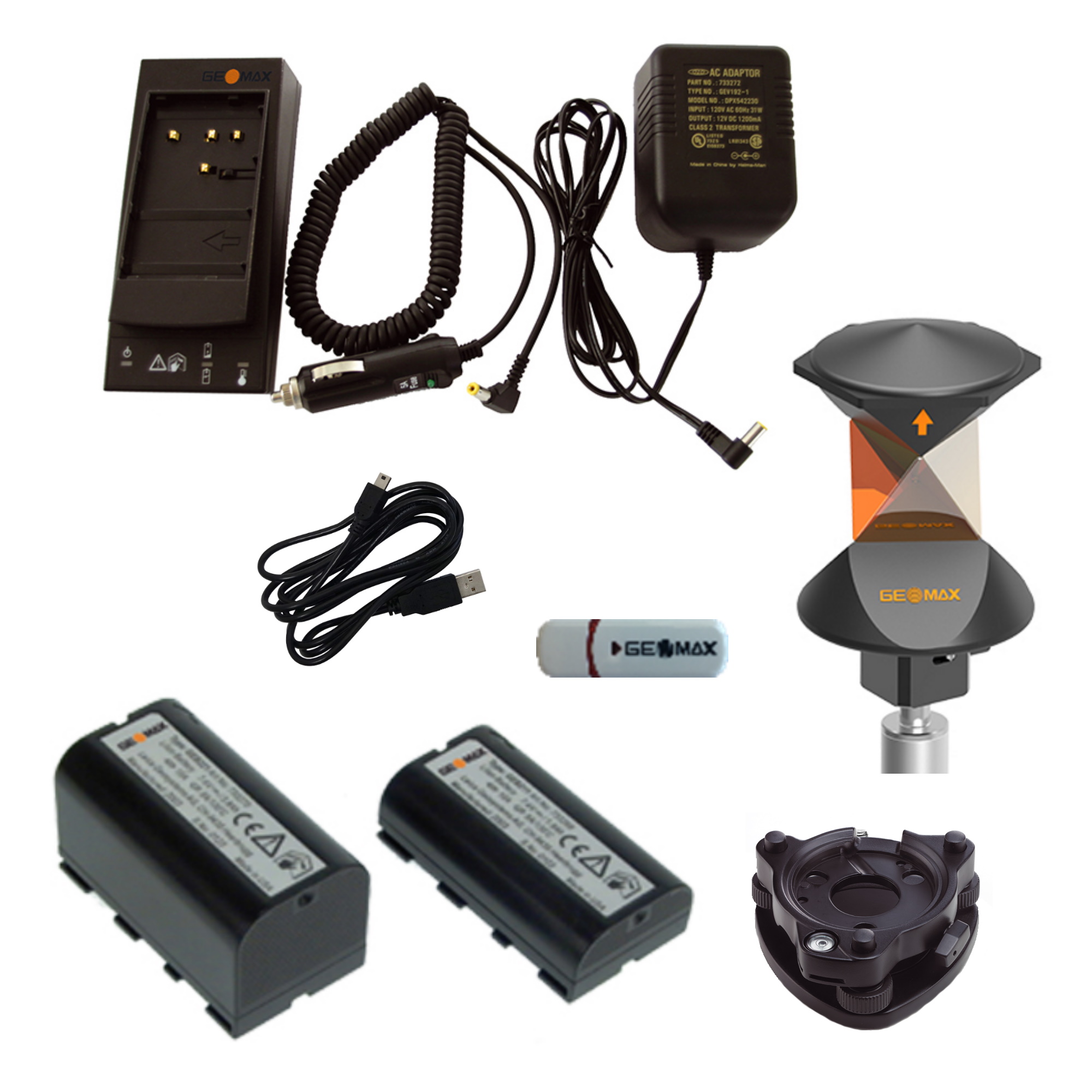

GeoMax Zoom75, 2" A10 Robotic Total Station Package Includes:

• 918652 Zoom75, WinCE Servo Total Station with AiM360 and TRack360, 2", accXXess10 EDM, NavLight, alphanumeric keyboard with VGA colour & touch display, Long Range Bluetooth Handle interface, internal Bluetooth, USB port, SD Card slot, Quick Guide and shipping case.
• 855818 ZMS108 USB Memory Stick 8GB
• 776093 ZBA400, Li-Ion Battery 4.4Ah
• 766872 ZCH201 Charger for ZBA201 & ZBA400 Li-Ion batteries
• 765617 ZTR101 Standard Tribrach without optical plummet, black
• 832680 ZRP1, 360° prism with ruggedized rubber caps
• 794088 ZDC301 USB cable Mini-USB to USB Host (Zipp10/Zipp20/Zoom40/Zoom90/Zoom95 to a PC/Tablet)

* > 500 m: 4 mm + 2 ppm;
** Battery time may be shorter depending on conditions.
