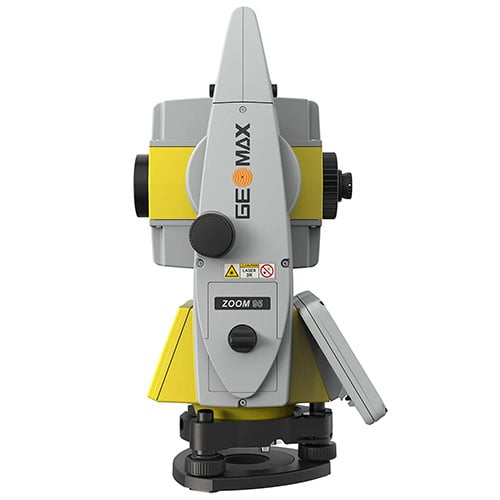

GeoMax Zoom95 Robotic Total Station Package A5 with 5" Accuracy

Model Number: 6017103

Features:
  • GeoMax Zoom95 Robotic Total Station Package A5 with 5" Accuracy.
  • This solution is not only economical, with no maintenance cost, but your data is digitalised, secure and easy to access.
  • Zoom95 is the perfect one-person total station.
  • Features advanced STReAM360 technology to quickly locate, track and stay locked to the prism, this one-person total station substantially minimizes the time of any survey task and maximizes your performance and accuracy.
  • Modern data handling.
  • Large 5′′ VGA touch screen.
  • Powerful processor - easy & fast handling of big files.
  • Automatic data backup.
  • Scout: Quick search for passive prisms within a large area.
  • Maximum flexibility.
  • Field software: X-PAD Ultimate Survey or Build on Android, X-PAD Survey or Construction on Windows Mobile.
  • Filed controllers: GeoMax' or your own device.
  • Smart investment.
  • No maintenance cost for field software.
  • Latest Hexagon technology with Stress-free equipment PIN/PUK - anti-theft feature.
  • Data can be accessed, stored, and shared via the X-PAD 365 File Manager, data is always safe, thanks to automatic backups.
  • Collaborative Survey and Stakeout feature allows several users to work on the same surveying or stakeout project together, sharing real-time surveyed points and drawings and immediately seeing their progress.
Specifications:

Angle Measurements:
  • Accuracy: 5” (1.5mgon)
  • Display resolution: 0.1” (0.1 mgon)
  • Method: Absolute, continuous, diametrical
  • Compensation: Quadruple axis
Telescope:
  • Type: accXXess
  • Magnification: 30x
  • NavLigth™ Range: 5 m - 150 m
  • NavLigth™ Accuracy: 5 cm at 100m
Distance Measurements to Std. Prims Accuracy/Time (Typical):
  • Single (fast): 2 mm + 1.5 ppm / 0.8s
  • Standard: 1 mm + 1.5 ppm / 2.4s
  • Continuous: 3 mm + 1.5 ppm / < 0.15s
  • Range: up to 3500m
Distance Measurements - Reflectorless:
  • Range: accXess5 / accXXess10, 500 m / 1000 m
  • Accuracy: 2 mm + 2 ppm*
  • Time: Typ. 2-6 sec
  • Precise capture: 8x20 mm at 50 m
Interface:
  • Keyboard: Full alphanumeric; 25 keys; illuminated (2nd optional)
  • Display: 5” WVGA 800x480 colour and touch with LED backlight
  • Data recording: 2 GB internal memory; removable SD card and USB stick
  • Ports: Serial; USB; internal Bluetooth®; long-range Bluetooth handle, External power and WLAN
  • Operating system: Microsoft® Windows® EC 7.0
Motorisation:
  • Technology: Hybrid Drives
  • GeoTRAil - GNSS based prism search: 100 g/sec (Speed)
  • Scout - Opto-electronic prism search: 300 m at round prism (Range)
  • TRack - Automatic prism logging: 800 m at round prism (Range), 90 km/h at 100m (max Speed)
  • AiM - Automatic prism fine aiming: 1,000 m at round prism (Range), 1” (Hz/V accuracy ), Image processing (Technique)
NAVLIGHT ™ - Alignment Aid:
  • Range: 5 m to 150 m
  • Accuracy: 5 cm at 100 m
Physical Specifications:
  • Weight: 5.0 - 5.3 kg (w/o battery and tribrach)
  • Operating- / storage temperature: -20° C to 50° C / -40° C to 70° C
  • Protection class: IP55 dust and waterproof rating
  • Humidity: 95%, non-condensing
Power Supply:
  • Internal battery: Removable Li-Ion 4.4 Ah / 7.4 V
  • Operating time: Up to 8 h**
Plummet:
  • Type: Laser point, adjustable brightness
  • Accuracy: 1.5 mm at 1.5 m instrument height
Software:
  • Operating System: Open Windows CE
  • Open for 3rd part SW: Yes
  • Basic Package: Fully flexible*****
  • Advance Package: Fully flexible*****
Zoom95 Package A5 Includes:
  • 918656 - Zoom95 Fully Robotic WinCE Total Station with AiM360, TRack360 and Scout360, 5", accXess5 EDM, NavLight, Alphanumeric Keyboard with VGA Colour & Touch Display, Long Range Bluetooth Handle Interface, Internal Bluetooth, USB port, SD Card slot, Quick Guide and Shipping Case.
  • 855818 - ZMS108 USB Memory Stick 8GB
  • 776093 - ZBA400, Li-Ion Battery 4.4Ah
  • 766872 - ZCH201 Charger for ZBA201 & ZBA400 Li-Ion Batteries
  • 765617 - ZTR101 Standard Tribrach without Optical Plummet, Black
  • 834473 - ZRT82, Long-Range Bluetooth Handle for GeoMax Zoom70/75/90/95 Total Station (This item is found at the handle, See images for reference.)
  • 832680 - ZRP1, 360° Prism with Ruggedized Rubber Caps
  • 794088 - ZDC301 USB cable Mini-USB to USB Host (Zipp10/Zipp20/Zoom40/Zoom90/Zoom95 to a PC/Tablet)

Note: * > 500 m: 4 mm + 2 ppm; ** Battery time may be shorter depending on conditions; **** Single measurement every 30 seconds, at 25°C. Battery time maybe shorter, depending on conditions; ***** X-PAD, FieldGenius, Carlson SurvCE.
  • MPN: 6017103
  • UPC:
