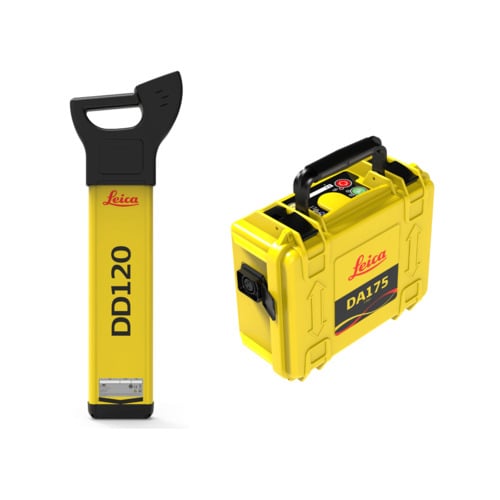

Leica DD120 Series Utility Locator Package

Model Number: 6014155

The Leica DD100 Series cable locators feature advanced automatic controls making the DD100 Series easy-to-use, requiring minimal user experience. Avoiding underground cables and pipes is a major concern on construction sites. Therefore, detecting the position of buried cables and pipes before excavation work can help prevent operator injury, asset damage and any subsequent costs. Use the DD120 or DD130 cable locators in conjunction with a DA175, DA220 or DA230 signal transmitter or range of accessories to achieve improved accuracy and application scope.

DD120 Specifications:

Power: 60Hz
Radio: 15kHz to 60kHz
Auto: Power, Radio, 33kHz
Transmitter Modes: 32.768 (33) kHz, 8.192 (8) kHz
Depth Range: Line 0.3m to 3m / 1ft to 10 ft, Sonde 0.3m to 3m / 1ft to 10 ft
Depth Accuracy*: 10% (* Depth to an undistorted signal)
Environmental Standard: IP54
Operating Temperature: -20° C to +50° C, -4° F to +122° F
Battery: 6 x LR6 (AA) Alkaline
Battery operating time**: 15 h (** Constant use at 20°C/68°F)
Dimensions (HxWxD): 760 x 250 y 85mm, (30 x 10 x 3.4 inches)
Weight with batteries: 2.7Kg, 5.95 lbs

DA175 1 Watt Transmitter:

Induction Mode Frequencies: 32.768 (33) kHz / 8.192 (8) kHz
Power Output: Up to 1 Watt max.
Direct Connection Mode Frequencies: 131.072 (131) kHz / 32.768 (33) kHz / 8.192 (8) kHz
Environmental Standard: IP67
Operating Temperature: 20 °C to +50 °C / -4 °F to +122°F
Storage temperature: -40°C to +70°C, / -40°F to +158°F
Battery: 7.4V Rechargeable Li–ion
Battery operating time **: 15 h (**Defined at 20°C (77°F) power level 2)
Dimensions (HxWxD): 250 x 206 x 113 mm / 9.84 x 8.11 x / 4.45 inches
Weight with batteries: 2.38Kg / 5.25 lbs
