Leica DD220 Series Smart Utility Cable Locator 850268 (Locator Only)

Product Code: ES9069

Condition: New

Usually ships off dock within:2 to 4 Business Days

Your Price	$2,480.99
	(You Save 8%)

List Price

$2,700.00

Qty

Accepted Payment Types

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

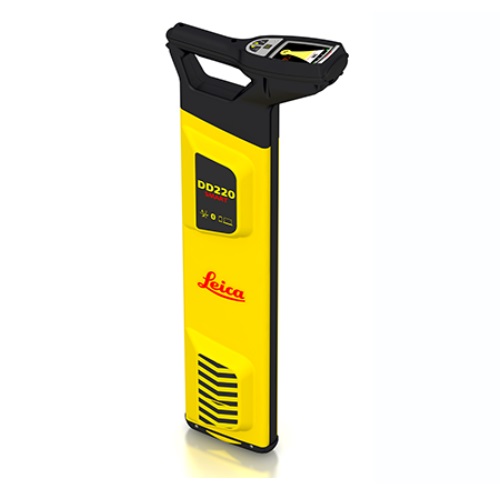

Leica DD220 Series Smart Utility Cable Locator (Locator Only)

Model Number: 850268

The Leica DD SMART utility locators and DX Shield software open the door to a connected world, anywhere, anytime. Leica DD SMART utility locators detect underground assets deeper, faster and more accurately. Understand site activity and utility locator use in greater detail with DX Shield software. The DD230/220 SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free connection to mobile devices.

Features:

Easy to use and learn with on board video support.
Intuitive hardware and software significantly reduce errors.
With usage alerts and system diagnostics, assets and site workers are protected
With on board locate alerts and an automatic locate process, the DD SMART locators help to reduce time spent locating buried utilities and prevent utility damage.
DX Shield software provides a space for utility analysis and a convenient connection between SMART locators to increase productivity and save time.
DX Shield software allows you to gain a better understanding of task performance and site complexities with easy-to-use reports that provide a fast and convenient overview of product use, reducing utility strikes and saving direct repair costs and project downtime.
Connect your DD SMART locator with the DX Field Shield app to enable automatic data synchronization and access your collected data using your mobile device - The DX Field Shield app provides operators with a remote transfer tool, linking data from the site to DX Manager Shield or DX Office Shield. DX Manager Shield provides organisations with a centralized hosted platform for multiple users, across multiple sites. The site notes and photos from DX Field Shield document site activities. DX Office Shield provides organisations with a scalable local solution on a single-source platform.

DD220 Specifications:

Power: 50 / 60 Hz, mains electrical and harmonics
Radio: 15kHz to 60kHz
Auto: Power, Radio, 33kHz
Transmitter Modes: 131.072 (131) kHz, 32.768 (33) kHz, 8.192 (8) kHz
Depth Range: Line 0.1m to 5m, Line 4 inches to 16.4 feet, Sonde 0.1m to 7m, Sonde 4 inches to 23 feet
Depth Accuracy*: 5% (*Depth to an undistorted signal)
Bluetooth: Class 2 BLE dual mode module, Bluetooth Classic 2.1, Bluetooth 4.0 (LE)
GPS**: Chipset (1): u-blox®GPS, Receiver Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1, Accuracy (2): Horizontal Position 2.5 m, Autonomous, 2.0 m SBAS,CEP, Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical (** (1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information.
Memory Capacity: 8 GB internal memory
Environmental Standard: IP66
Operating Temperature: -20 °C to +50 °C, -4 °F to +122°F
Battery: 7.4V Rechargeable Li – Ion
Battery operating time ***: 15 h (*** Constant use at 20°C/68°F)
Dimensions (HxWxD): 765x290x93mm, 30.12 x11.42x3.66 inches
Weight with batteries: 2.7Kg, 5.95 lbs
1 Year Manufacturer's Warranty
