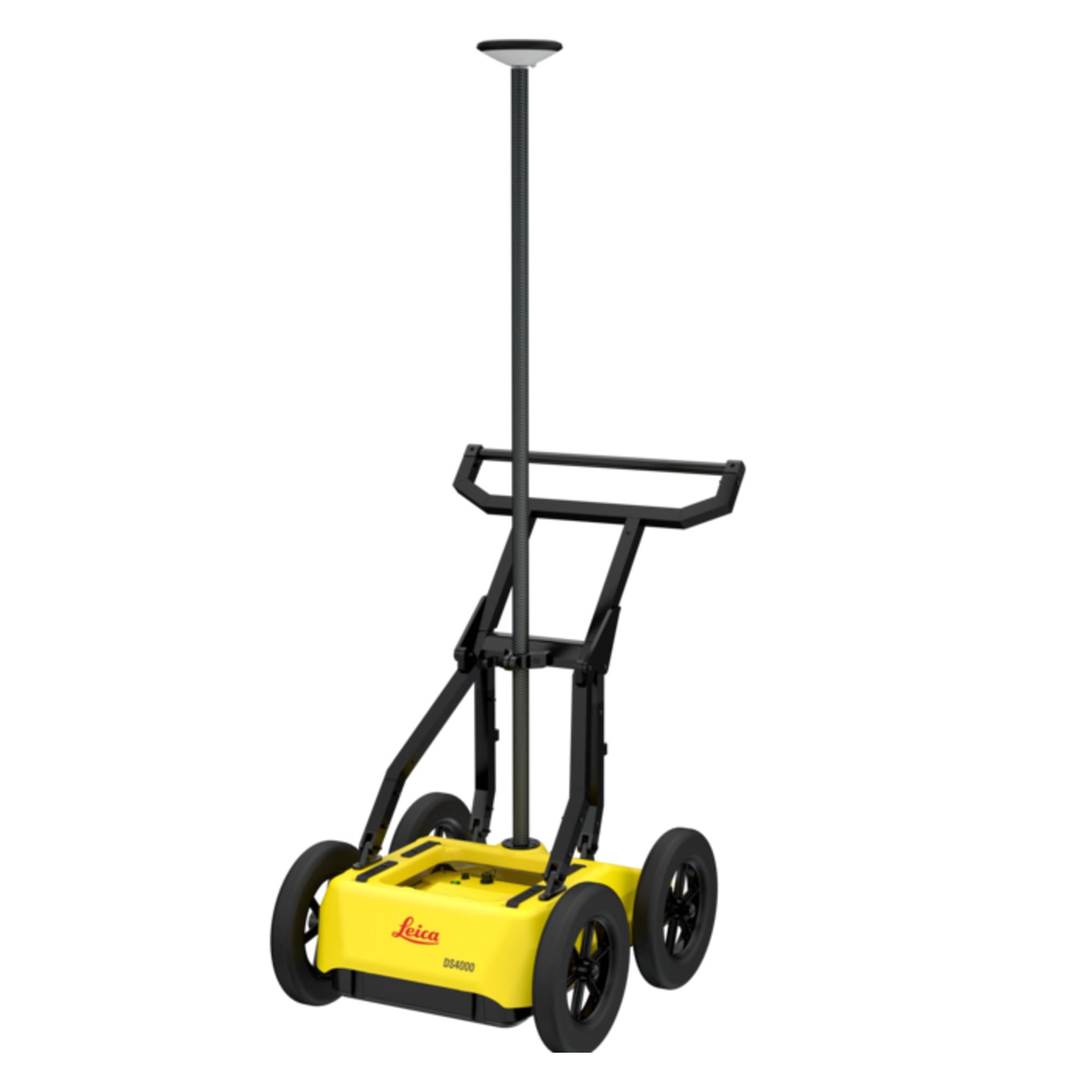

Leica DS4000 Ground Penetrating Radar, Surveyor Kit

Model Number - 1023281

The Leica DS4000 is the ultimate dual-antenna Ground Penetrating Radar (GPR) system designed to redefine efficiency and precision in subsurface scanning. Powered by advanced EsT Technology from IDS, the DS4000 boasts an unmatched frequency range of 80–1500 MHz through its 200 MHz and 900 MHz antennas, delivering 30% greater depth penetration for deeper insights and enhanced utility detection.

What's in the box?

DS4000 Utility Detection System
1 Battery
1 Charger
CT1500 Tablet
CT1500 Tablet Holder
GNSS Pole Support
GLS30, GNSS telescopic pole
GAD50, Adapter for mounting reflectors
Off-road Wheels
2-year Customer Support for DS4000

Specifications

N° of channels: 2
Central Frequencies: Dual 200 MHz and 900 MHz
Inspection Range: 80 MHz – 1500 MHz
Technology: EsT – Equalized scrambled Technology (Patented Technology)
Dimension (folded for transport): 750x625x420 mm | 30x25x17 in
Dimension (in use): 750x625x1000 mm | 30x25x40 in
Weight: 20kg | 44 lbs
Operating Temperature: -20 °C to +50 °C | -4 °F to +122 °F IEC 60068 2-1/2
Vibration: Compliant with IEC 60068-2-64:2012
Shock: Compliant with IEC 60068-2-31:2011
Certification: CE, UKCA, FCC, IC
Polarization: Configuration: HH and VV
Positioning: Encoder, external GPS/GNSS and Total Station
Power Consumption: Acquisition: 16W | Stand-by: 12W
Operating Time:
- 4 h with 1 battery
- 8 h with 2 battery
Operating time can be extended by hot swap capability
Wheels
- 4XØ310 mm (default) | 4XØ12 in (default)
- 4xØ380 mm (optional) | 4xØ15 in (optional)
Environmental:IP65
uMap – Data collection software:
- Automatic calibration for an easy and quick start-up
- Visualization and storage of radar data
- Real-time visualization of radar tomography (time slices)
- Import of cartography of the surveyed area from different sources for visualising geo-referenced underground asset position in real time.
- Connection with NMEA positioning device
- Multilanguage support
- Metric and Imperial units
- Export, store, share and access data on major Cloud service providers for a streamlined workflow in utility detection
- On site target marking
- Automatic report generation
IQMaps – Processing Software: Advanced 3D processing software with a direct export link to AutoCAD Export, store, share and access data on major Cloud service providers for a streamlined workflow in utility detection
Recommended Tablet: CT1500
