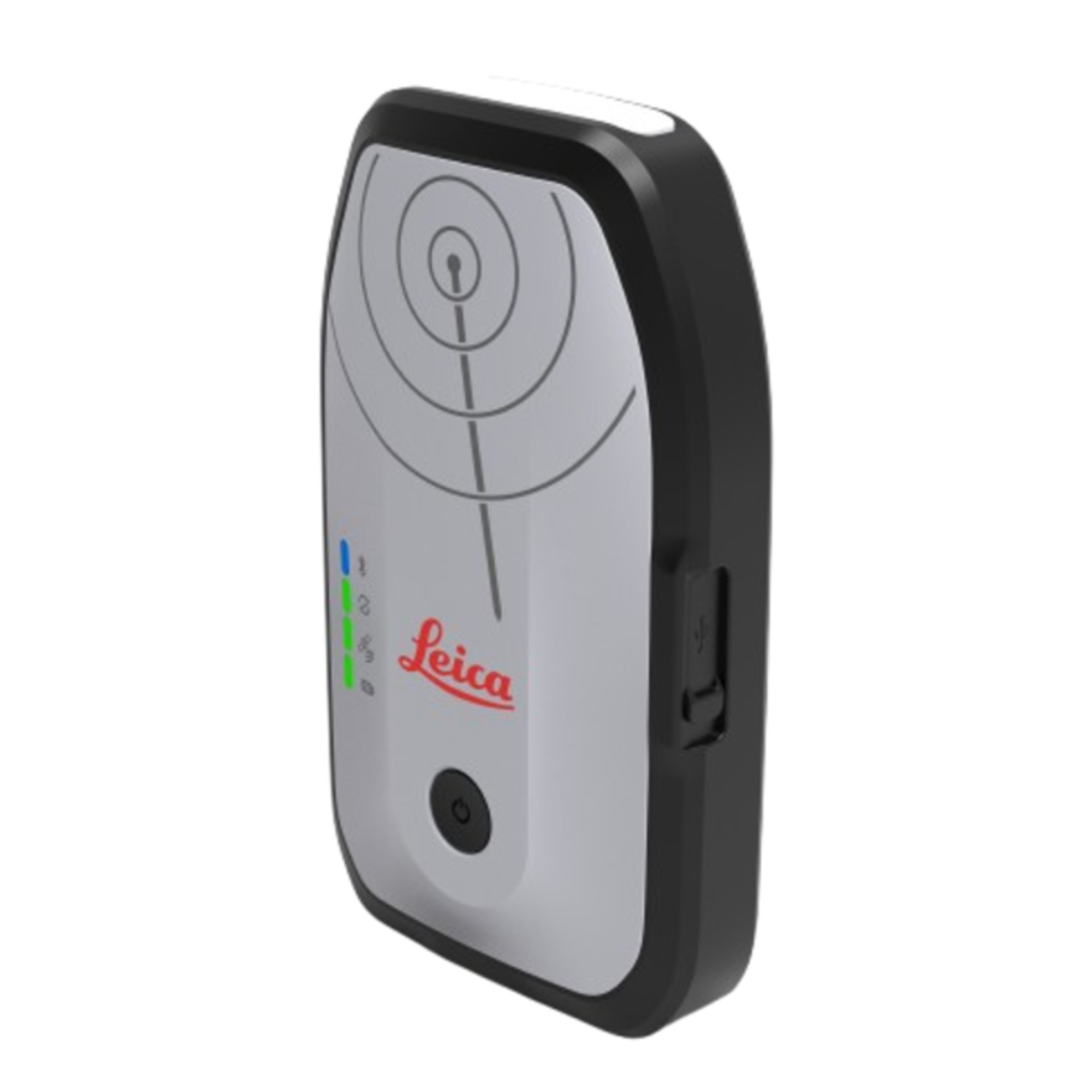

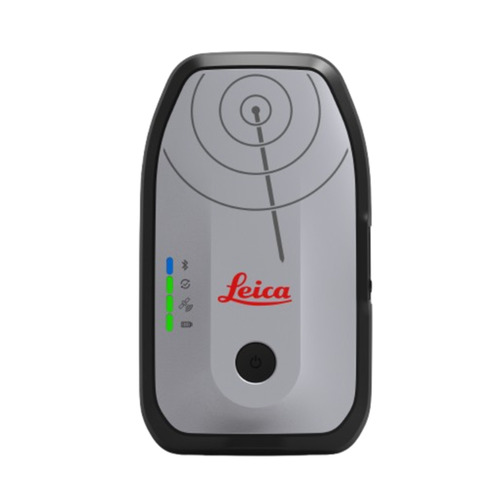

Leica Zeno FLX100 Plus Smart Antenna

Model Number - 1018460

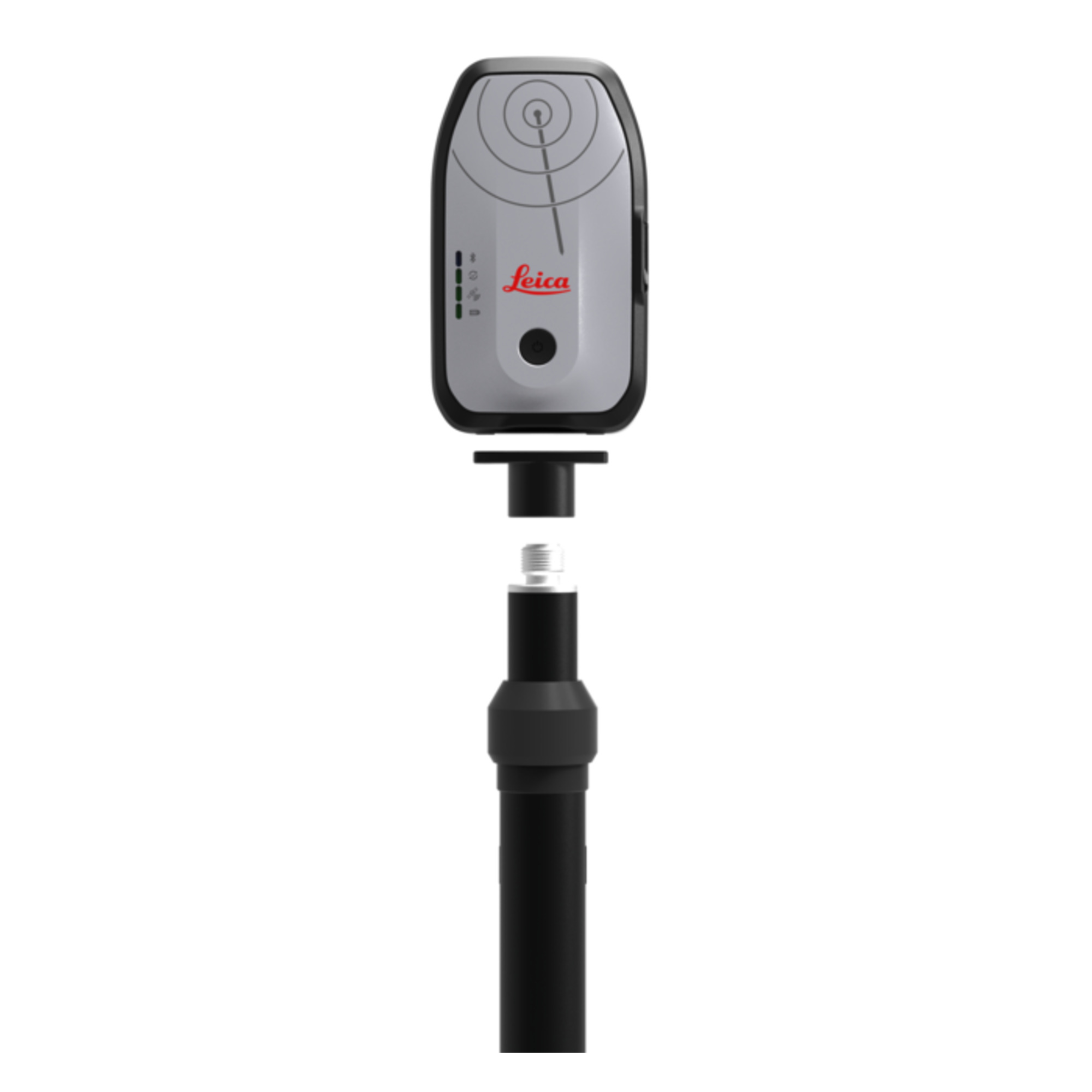

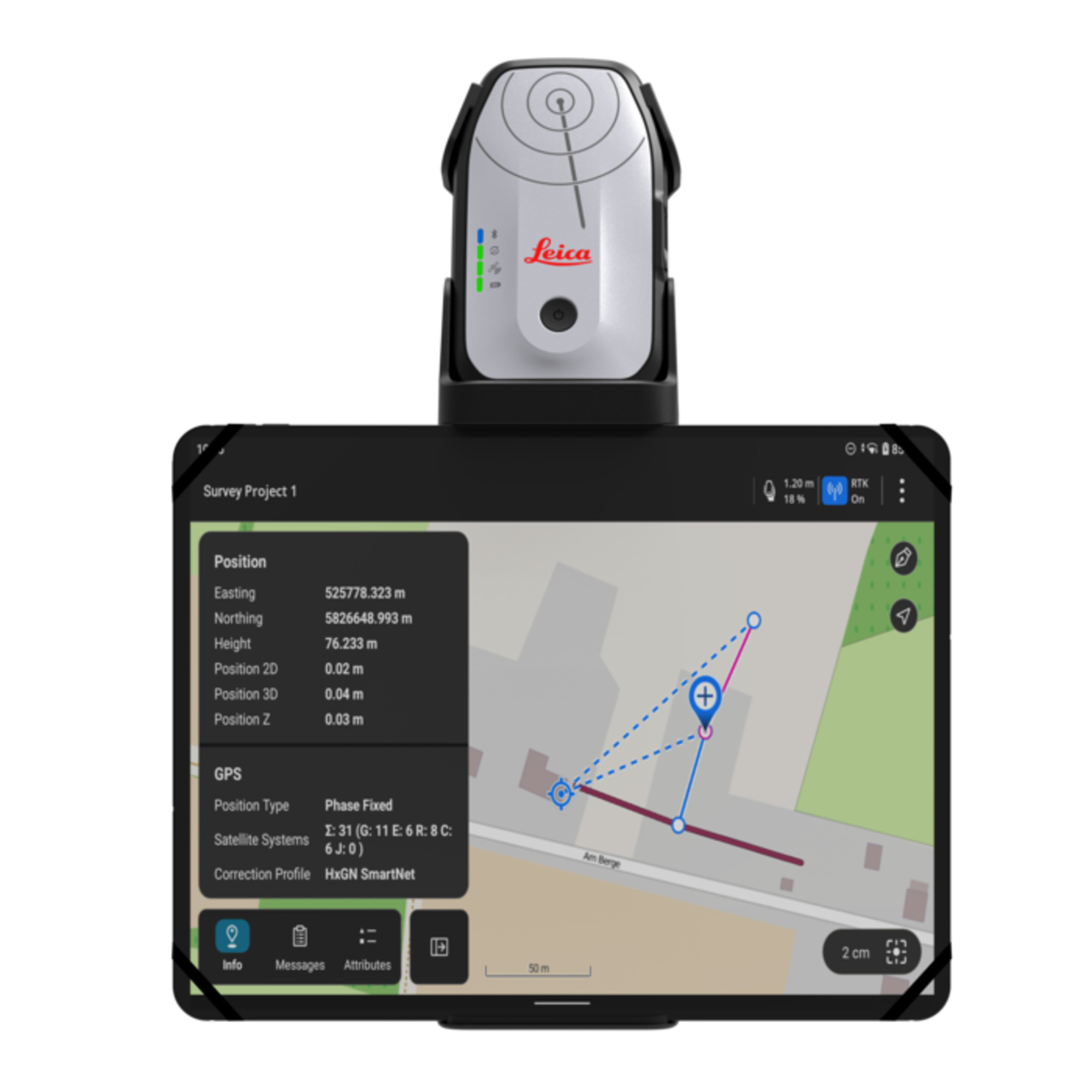

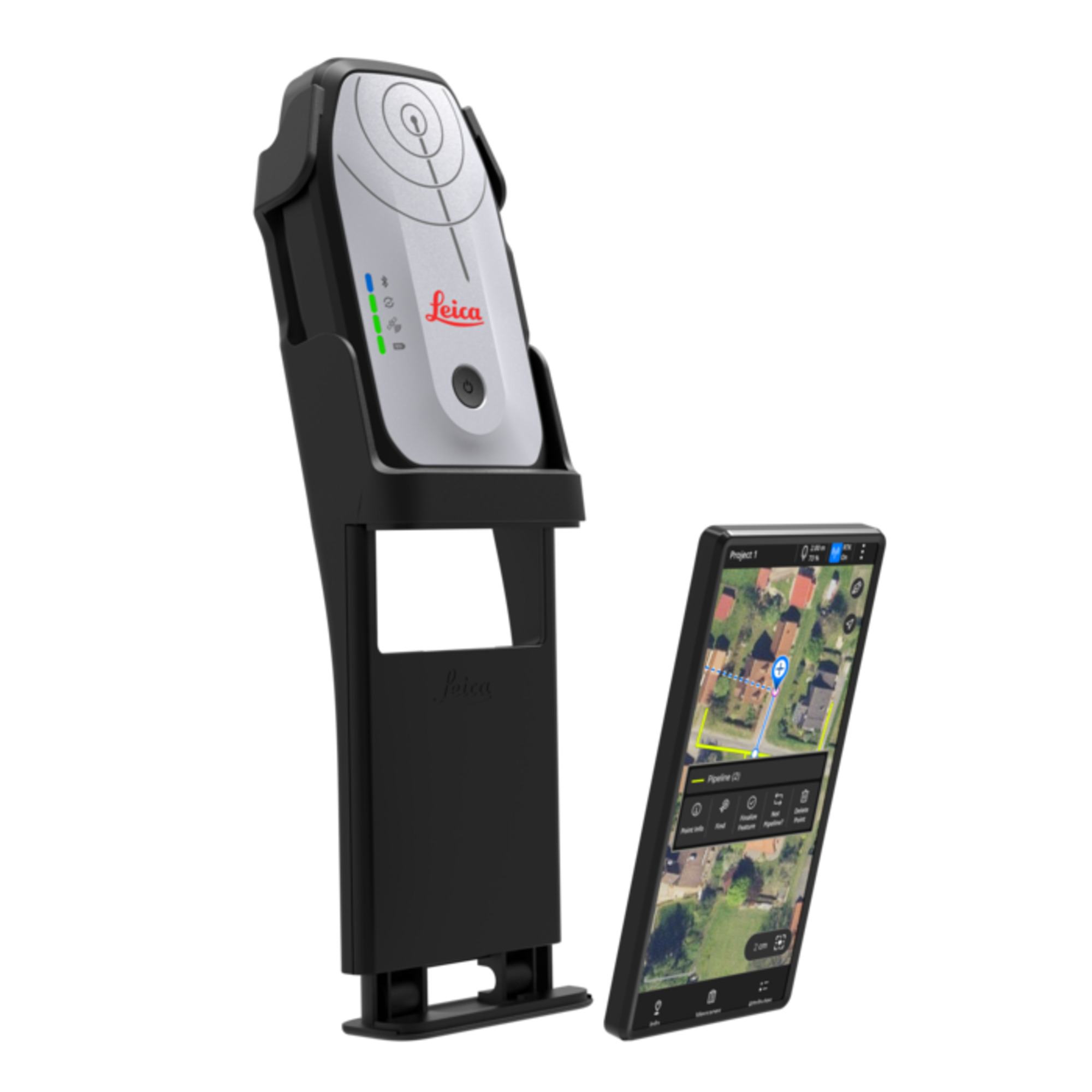

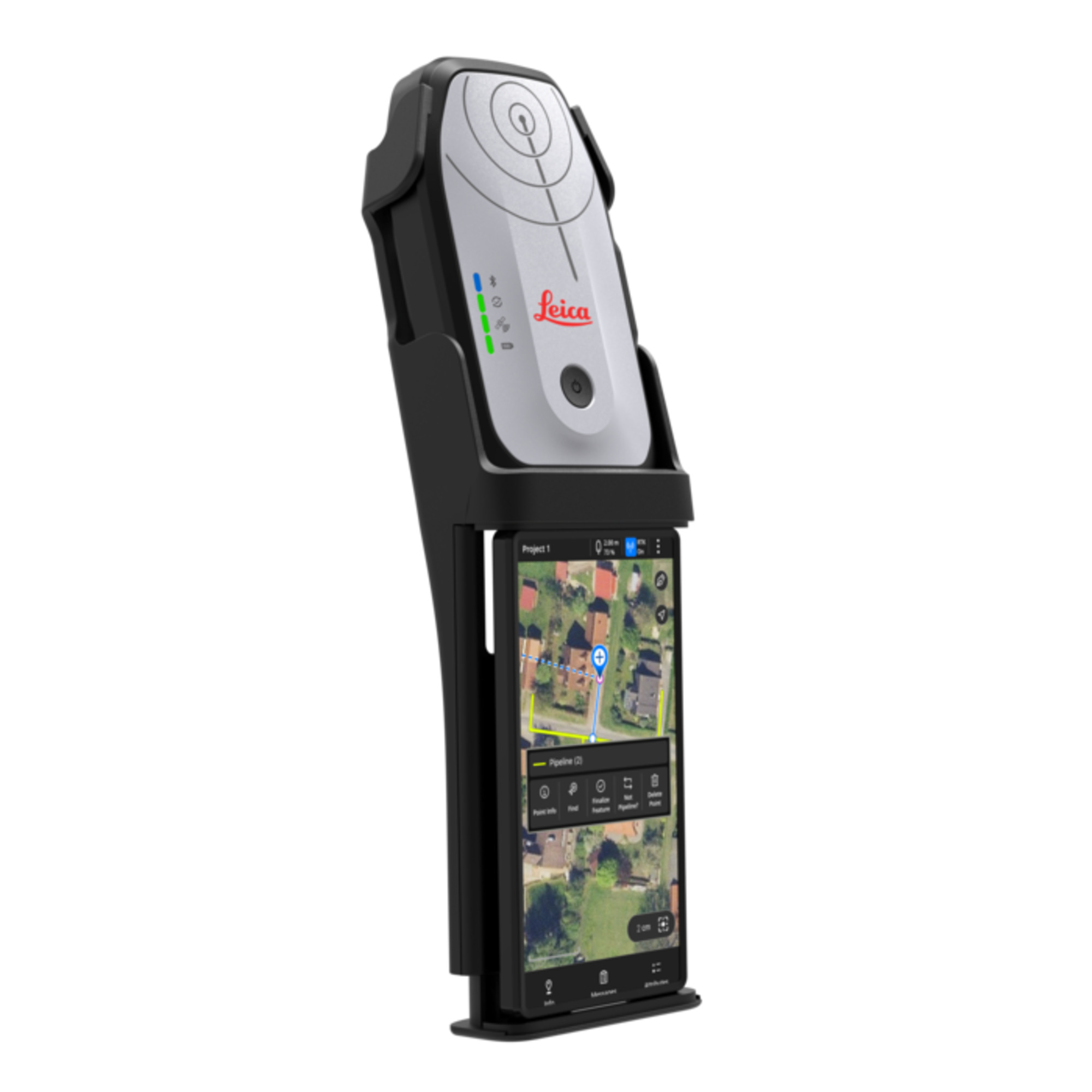

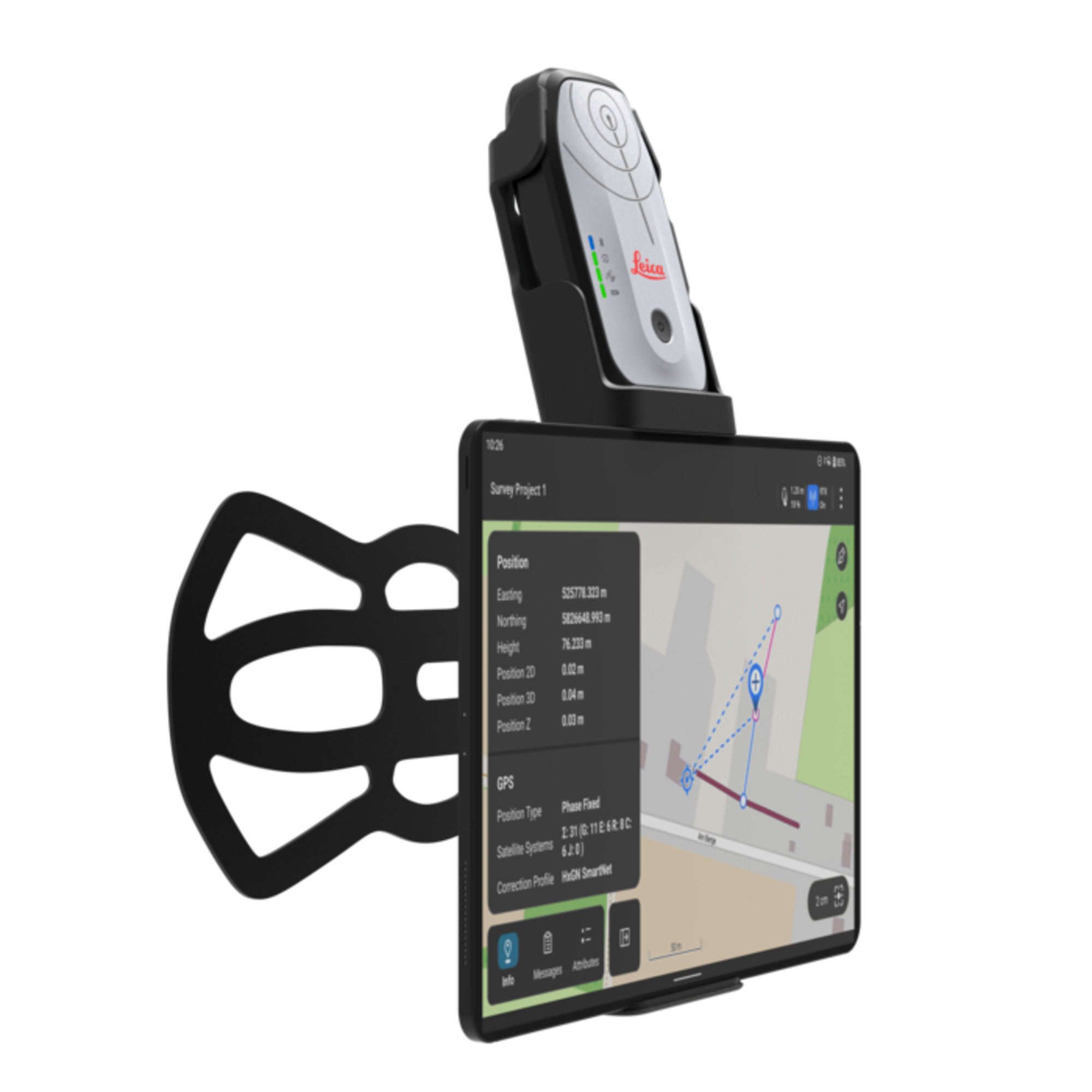

Capture spatial data in a simple and flexible way using the setup that fits your workflow, whether it be on a survey pole for high accuracy data or with the universal handheld tray to build your own handheld GNSS. The FLX100 plus can be paired with your own iOS, Android or Windows smartphone or tablet providing freedom of choice to work the way you want.

Compact, rugged and lightweight, the Leica Zeno FLX100 plus is your dependable data collection solution. Achieve up to 2cm accuracy with this easy to use, compact, and lightweight GPS rover. For the ultimate experience in professional data capture, use the FLX100 plus with Leica Zeno Mobile One or pair it with Leica Zeno Connect to enable high accuracy positioning in other data collection apps on various operating systems.

What's in the box?

Leica Zeno FLX100 plus Tilt Smart Antenna; Includes 2 year warranty
Power adapter
Type-C charging cable
USB A to USB C cable
Arm/Belt pouch

Specifications

Horizontal real-time accuracy
- RTK (Multi-frequency): 2 cm + 1 ppm*
- SBAS (L1 only): <0.9 m*
- Navigated: 1.2 m*
Vertical real-time accuracy: RTK (Multi-frequency): 3cm + 1ppm*
Horizontal real-time tilt compensated accuracy:
- Unlimited tilt
- Additional Hz uncertainty less than 1.8cm down to 30° tilt
Post-processing accuracy static mode
- Horizontal 2cm + 1ppm*
- Vertical 3cm + 1ppm*
Satellite signal tracking
- GPS (L1 C/A, L2C)
- Glonass (L1OF, L2OF)
- BeiDou (B1l, B2l)
- Galileo (E1B/C, E5b)
- QZSS (L1C/A, L2C)
- SBASS: WAAS, EGNOS, MSAS, GAGAN (L1 C/A)
Number of channels: 184 channels
Update rate: up to 10 Hz (0.10 sec)
Supported operating systems: iOS | Android | Windows
Real-time protocols: RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM 3.3, RTCM MSM
Output protocols: NMEA via Zeno Connect
GNSS initialization
- Cold start: 24s
- Reaquisition: 2s
User interface: On/Off key status indicator (LED): satellite tracking, corrections, Bluetooth® communication and battery power Communication port Bluetooth 5.0
Battery: Internal (3.8 V / 6120 mAh)
Battery charging time: 4 hours to full charge
Power: DC 5V/2A
Operating time: >20 hours
Weight and dimensions: 313g, 139 mm X 80.6 mm x 31 mm
Proof against water, sand and dust: IP67
Operating/storage temperature range
- Operating: -40°C to +65°C
- Storage: -40°C to +80°C
Humidity:Rarely and slightly condensing, ISO 9022-12-04 (+65°C, 92%, 62h)
Drop: 1.2m
Vibration: Withstands strong vibration , ISO 9022-36-05 (10-55 Hz / ±0.15 mm / 5 cycles)
