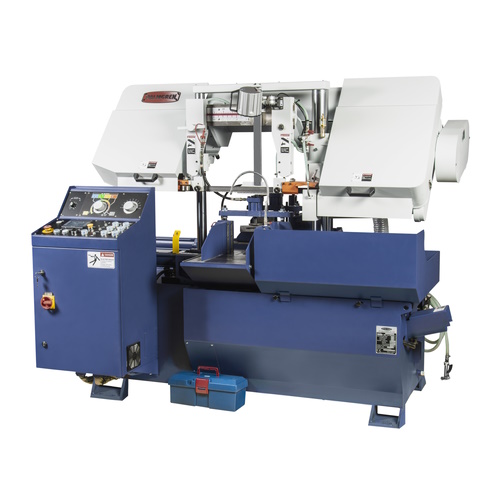

Palmgren 12" Fully-Auto Dual Post Band Saw

Model Number: 9684498

Features:

The Palmgren Fully-Auto Dual Post Band Saw is constructed from sturdy cast iron and steel, this band saw features an advanced powertrain with a precision gearbox, bronze worm gear, and hardened and ground worm shaft. The saw's fully automatic on-demand hydraulic controls for the saw head, shuttle vise, and split-jaw clamping vise ensure precise and efficient cuts every time.
Heavy duty cast iron and steel construction provides superior stiffness and vibration dampening
Advanced powertrain utilizes a precision gearbox with bronze worm gear and hardened and ground worm shaft, taper roller bearings operating in an oil bath delivering smooth, quiet positive SFPM to the blade

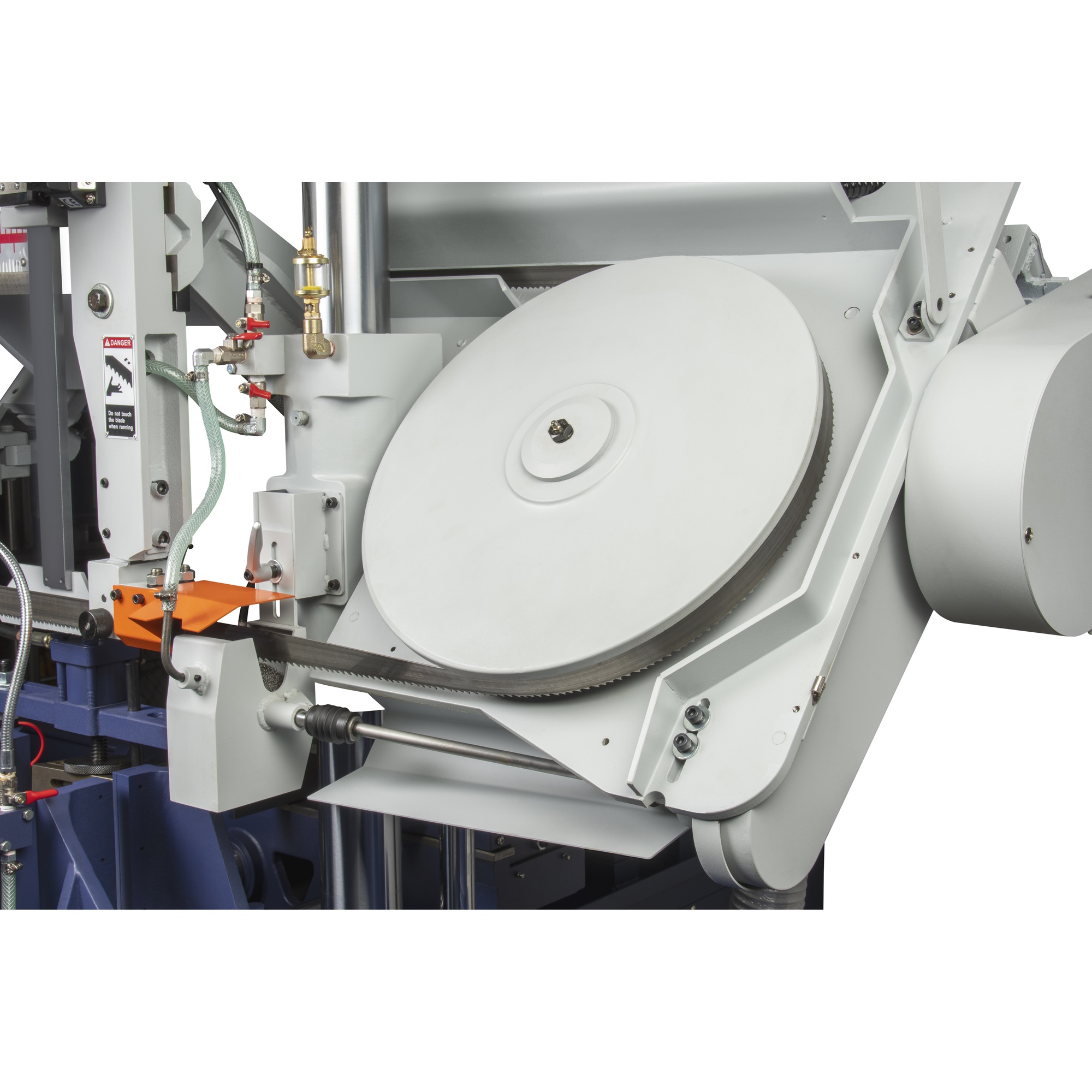

Cast iron idler and drive wheels
Fully automatic on demand hydraulic controls for the saw head, shuttle vise and split-jaw clamping vise

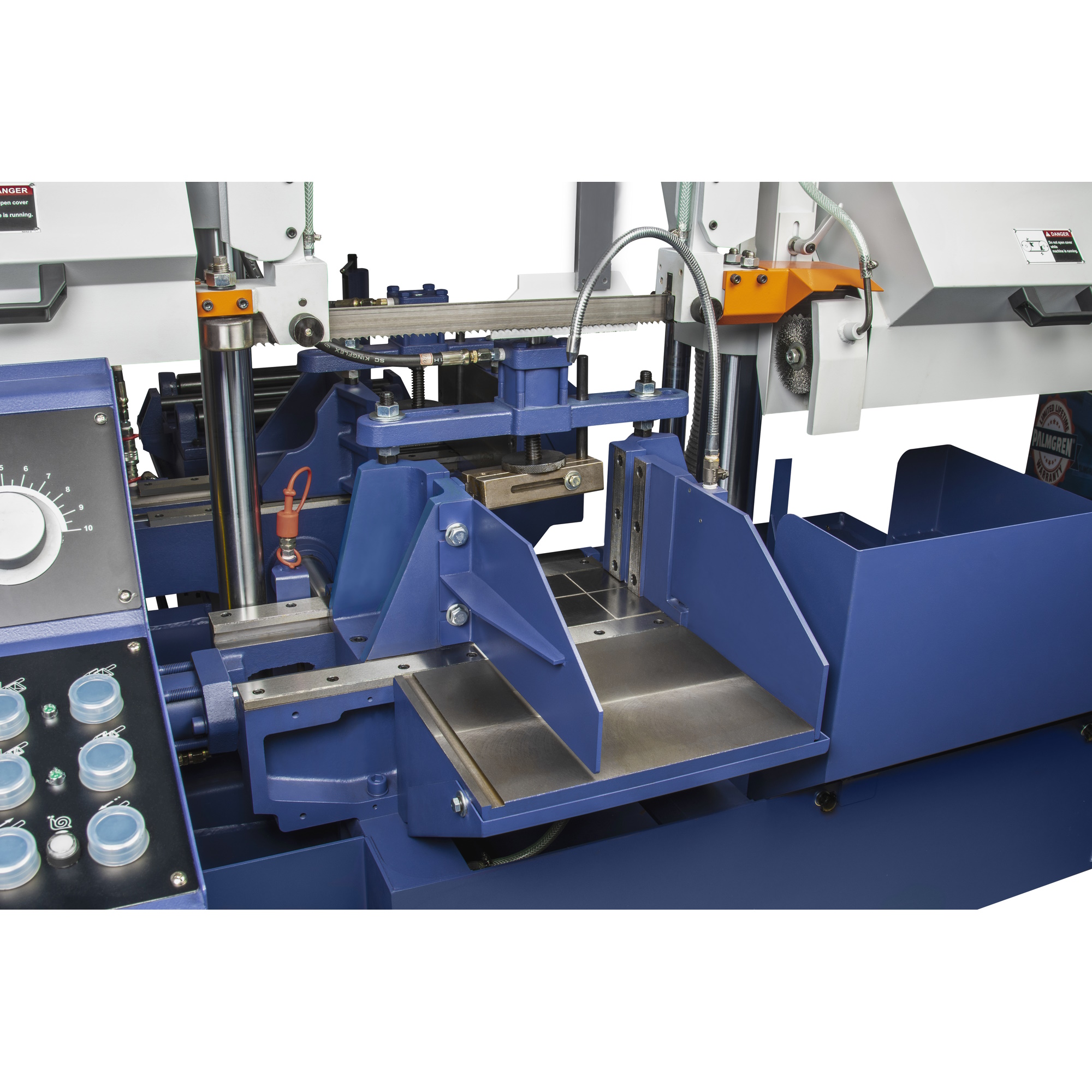

Three point clamping vise
Shuttle vise has a two-sided hydraulic system that allows it to clamp and feed irregular pieces without binding
Adjustable clamping pressure
Approach sensor reduces operation cycle time by allowing the saw head to approach the workpiece rapidly then slow to the chosen cutting rate just before the blade touches the workpiece
Hydraulic blade tension control provides for faster blade changes and ensures proper blade tension
Automatic shut off safety system that senses a broken or loose blade stopping the machine
Roller table with vertical & horizontal rollers that facilitates the holding and support of longer material allowing it to glide smoothly during the workpiece feeding process
Latest technology electronic variable speed inverter control provides a broad range of blade speeds designed to fit any sawing application
Control panel with monochrome touch screen is easy to program and operate and is conveniently located for easy accessibility and operator safety
Auto shut off at end of material or after preset number of cuts

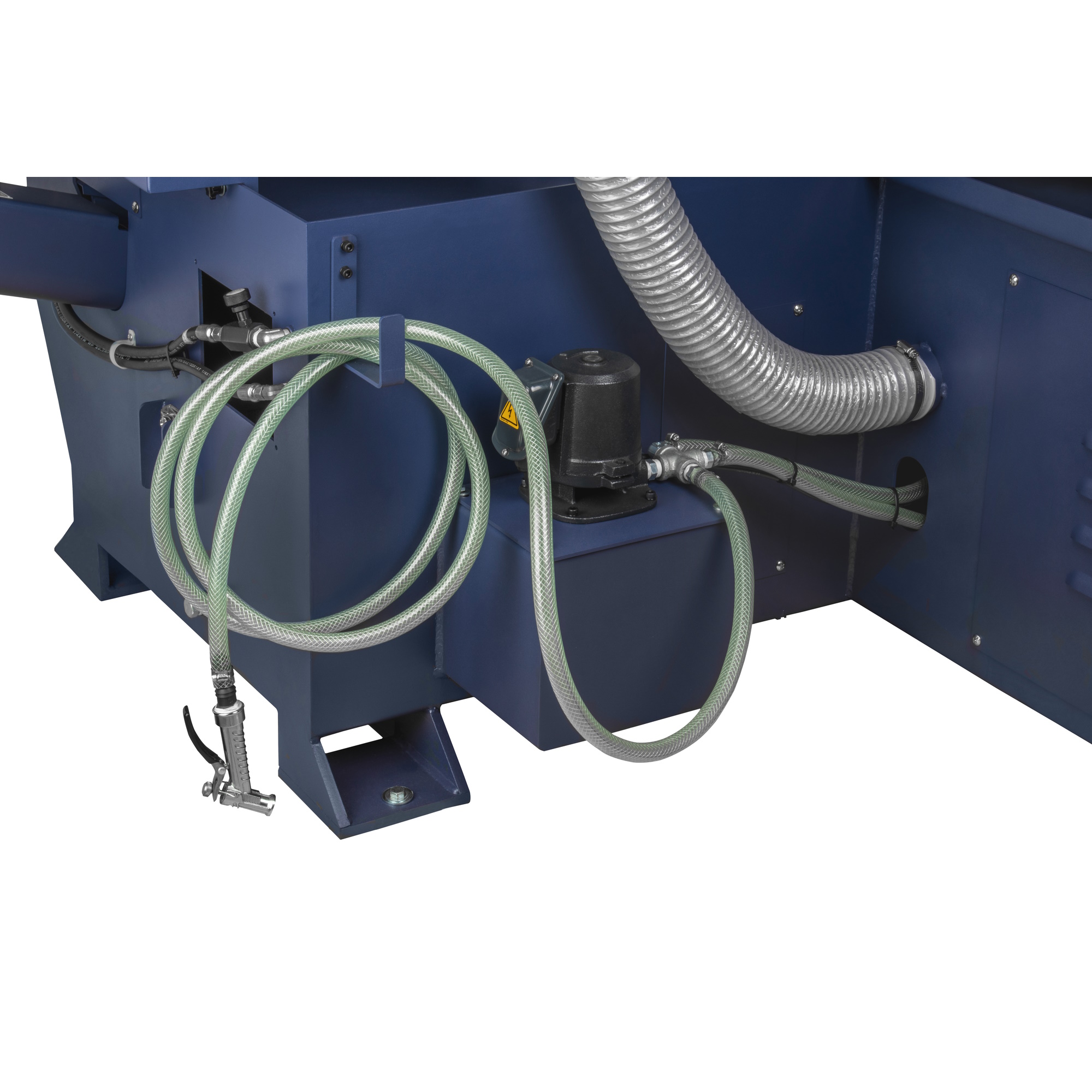

Safety electrical panel with main disconnect, overload protection and low voltage at the switches Flood coolant system with the coolant fed through the blade guides to maximize cooling and cleaning of chips from the blade
Blade brush to aid in the removal of chips from the blade
Adjustable ball bearing and tungsten carbide blade guides provide maximum support of the blade and ensure square accurate cuts
Chip conveyor automatically starts during the cutting cycle to efficiently remove and separate the chips from the coolant for convenient clean up and maintenance
Halogen work light

MPN: 9684498
UPC: 726896844985
