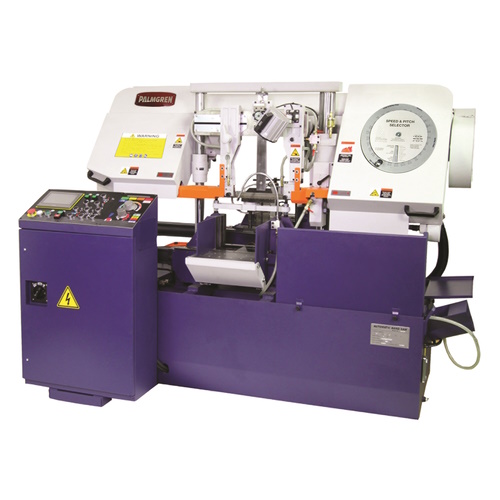

Palmgren 14" Dual Column Automatic Band Saw

Model Number: 9684488

Features:

The Palmgren Dual Column Automatic Band Saw is built for extreme production needs, this band saw is designed for cutting a wide range of metals with extremely tight tolerances in cutting repeatability and accuracy even at high cutting rates. Featuring a dual post design, this band saw provides more rigidity and reduces vibration for higher cutting rates and superior surface finish with increased blade life. The hydraulic shuttle vise feed-system with split vises clamps the workpiece securely on both sides of the blade, and variable clamping pressure and touch screen multiple-job programming make it easy to produce accurate cuts all day long.
Heavy duty cast iron and steel construction provides superior stiffness and vibration dampening
Advanced powertrain utilizes a precision gearbox with bronze worm gear and hardened and ground worm shaft, taper roller bearings operating in an oil bath delivering smooth, quiet positive SFPM to the blade
Cast iron idler and drive wheels
Fully automatic on demand hydraulic controls for the saw head, shuttle vise and split-jaw clamping vise
Three point clamping vise
Shuttle vise has a two-sided hydraulic system that allows it to clamp and feed irregular pieces without binding
Adjustable clamping pressure
Approach sensor reduces operation cycle time by allowing the saw head to approach the workpiece rapidly then slow to the chosen cutting rate just before the blade touches the workpiece
Hydraulic blade tension control provides for faster blade changes and ensures proper blade tension
Automatic shut off safety system that senses a broken or loose blade stopping the machine
Roller table with vertical & horizontal rollers that facilitates the holding and support of longer material allowing it to glide smoothly during the workpiece feeding process
Latest technology electronic variable speed inverter control provides a broad range of blade speeds designed to fit any sawing application
Control panel with monochrome touch screen is easy to program and operate and is conveniently located for easy accessibility and operator safety
Auto shut off at end of material or after preset number of cuts
Safety electrical panel with main disconnect, overload protection and low voltage at the switches
Flood coolant system with the coolant fed through the blade guides to maximize cooling and cleaning of chips from the blade
Blade brush to aid in the removal of chips from the blade
Adjustable ball bearing and tungsten carbide blade guides provide maximum support of the blade and ensure square accurate cuts
Chip conveyor automatically starts during the cutting cycle to efficiently remove and separate the chips from the coolant for convenient clean up and maintenance
Halogen work light
