Palmgren 18" Variable Speed Vertical Band Saw w/Welder - 9683119

Product Code: ET16024
Palmgren 18" Variable Speed Vertical Band Saw w/Welder - 9683119
Condition: New
Your Price $5,500.99
(You Save 11%)
List Price $6,176.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $92/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help

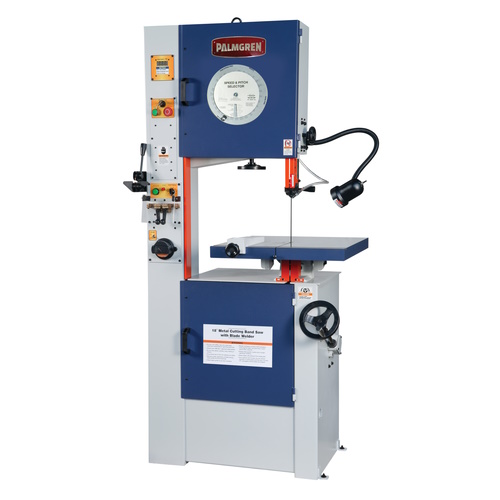

Palmgren 18" Variable Speed Vertical Band Saw w/Welder

Model Number: 9683119

Features:
  • The Palmgren Variable Speed Vertical Band Saw w/Welder is your ultimate solution for all your metal cutting needs! Whether you require contour sawing, beveling, slicing, ripping, stack cutting, or just simple cutting off, this band saw can do it all. Its high-performance variable speed drive, coupled with a sturdy unitized welded steel frame and solid cast iron table, ensures seamless cutting of various materials ranging from aluminum and brass to tool steels. With the Palmgren Vertical Band Saw, you can increase productivity and enhance the versatility of your metalworking operation. It's a must-have tool that allows you to accomplish more in less time.
  • Heavy duty Uni-Welded frame construction provides a solid base with minimal deflection
  • Variable speed drive system for quick, easy speed changes allowing the operator the match the correct speed to the blade and cutting application
  • LED digital SFPM readout
  • Heavy duty oil bath gear box delivers accurate surface feet per minute to the blade for faster cutting rates
  • Handles 1/8" to 5/8" blades
  • Chip blower to remove chips from the cutting area
  • Adjustable cast iron fence
  • Extra-large cast iron tilting table can handle a wide range of workpiece sizes and shapes
  • Carbide blade guides are easily adjusted for different sizes and types of blades while providing maximum blade support
  • Large manual blade tension hand wheel
  • Hand wheel with rack and pinion height blade guide adjustment
  • Work light
  • Safety electrical package with push button magnetic switch, safety off button and key lock switch
  • Safety interlock switches on doors that cuts power when the doors are opened
  • Comes standard with blade welder, annealed, blade shear and grinder; the welder can weld new or broken blades from 1/8" to 5/8"
Specifications:
  • Cutting Capacity Rectangle: 10-3/4 x 18 in
  • Cutting Capacity Round: 10-3/4 in
  • Cutting Capacity Square: 10-3/4 in
  • Cutting Angle: 90°
  • Blade Thickness: .025 in
  • Motor HP: 1.5 HP/115-230V-1PH/60Hz
  • Miter Capacity: 90°
  • Cutting Capacity Square: 10 in
  • Blade Wheels Diameter: 18 in
  • Max. Thickness of Cut: 10 in
  • Max. Blade Length: 138 in
  • Max. Blade Width: 1/8 - 5/8 in
  • Table Dimensions: 21-1/2 x 23-1/2 in
  • Table Tilt Front to Back: +10° to -10°
  • Table Tilt Right to Left: +15° to -15°
  • Application: Metal
  • Overall Dimensions (LxWxH): 35 x 37 x 75 in
  • Weight: 900 lbs.
  • MPN: 9683119
  • UPC: 726896831190
