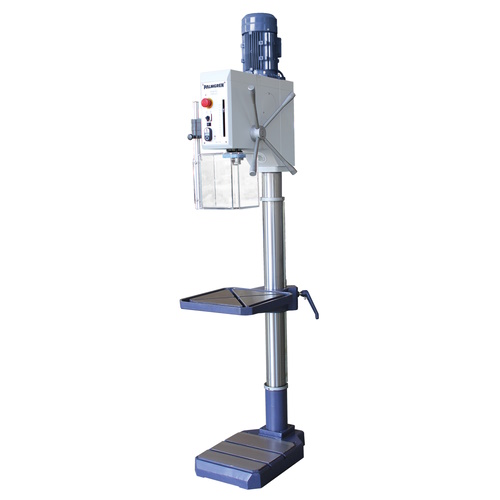

Palmgren 20" Gear Head Drill Press 230V 3PH - 9680223

Product Code: ET16136
Palmgren 20" Gear Head Drill Press 230V 3PH - 9680223
Condition: New
Your Price $5,911.76
(You Save 12%)
List Price $6,700.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $99/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help
Palmgren 20" Gear Head Drill Press 230V 3PH

Model Number: 9680223

Features:
  • The Palmgren Gear Head Drill Press features an all-gear drive transmission that delivers full power at any speed, this drill press drives cutting tools at nearly 100% of the available motor horsepower. The combination of steel and reinforced fiber gears ensures positive and quiet operation, while ground steel clutches add performance and strength. With a wide speed range, this drill press is perfect for drilling small to large diameter holes quickly and easily.
  • Simple knob selectors for operator ease in changing spindle speeds
  • Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection
  • Quick release drill ejector
  • Front-mounted control panel designed for operator convenience
  • Forward & reverse spindle switch
  • T-slotted production table and base
  • Rack and pinion table raiser
  • Front mounted dial adjusted work stop
  • Interlocking chuck guard
  • Work light
Specifications:
  • Motor HP: 1-1/2 - 2HP - 240V - 3PH - 60Hz
  • Swing: 18 in
  • Spindle Speeds: 90 - 3480 RPM
  • Spindle Taper: MT3
  • Spindle Travel: 5 in
  • Capacity Cast Iron: 1 in
  • Spindle to Table: 17 - 45/64 in
  • Table Work Surface: 15 x 15 in
  • Number of Speeds: 8
  • Column Diameter: 3 - 39/64 in
  • Power Feed: No
  • Base Size: 20-5/8 x 13-13/16 in
  • Drive Type: Gear Head
  • Chuck Size: 5/8 in
  • Table Slot Size: 1/2 in
  • Capacity Steel: 1 in
  • Quill Diameter: 2 in
  • Height: 51 in
  • Width: 17 in
  • Depth: 23 in
  • MPN: 9680223
  • UPC: 726896802237
