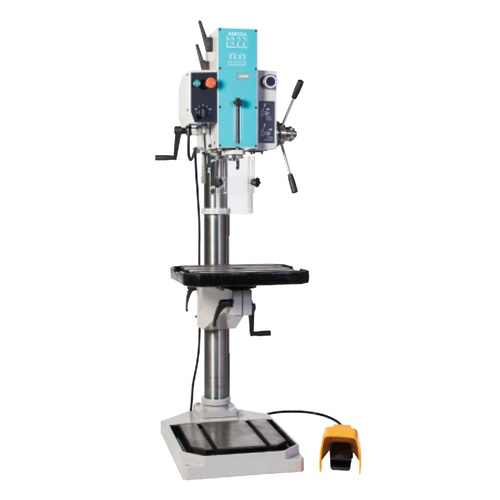

Palmgren 26" Gear Head Drill Press, 460V w/ Foot Reversing Switch & Power Feed

Model Number: 9680251

Features:
  • The Palmgren Gear Head Drill Press w/ Foot Reversing Switch & Power Feed is a versatile gear head drill press with a gear drive transmission that delivers maximum power at any speed, you can be sure your cutting tools will perform at their best. The helical ground gears provide smooth and quiet operation while also making speed changes quick and easy. Whether you need to drill large or small diameter holes, this drill press has got you covered with its wide speed range. Equipped with an all gear drive, mechanical clutch, spindle power feed for consistent feeding of the cutting tool through the workpiece.
  • Chuck & Spindle Guard
    • A clear adjustable chuck and spindle guard offers added protection to the operator throughout the drilling cycle.
  • Inch / Metric Depth Stop
    • Front mounted for better visibility and added operator convenience. It is easily adjusted with the turn of a locking knob and displays both inch and metric measurements.
  • All Gear Drive
    • The all-gear drive transmission delivers full power at any speed, driving tools at nearly 100% of available horsepower. These drills utilize the combination of hardened steel and high-strength fiber helical cut gears to ensure positive, quiet operation. All clutches are made of ground steel for easy speed changes and added strength.
  • Inch/Metric depth stop
  • 2 speed manual forward & reverse switch
  • Foot reversing switch
  • Head & table rotates 360 degrees around the column
  • Machined & t-slotted table and base
  • Quick release drill ejector
  • Chuck guard
  • No-volt release prevents spindle start-up when power returns after shutdown
  • 4" Palmgren drill press vise
  • Drill chuck & arbor
  • Made in Sweden
Specifications:
  • Swing: 25"
  • Spindle Taper: MT3
  • Motor: 1.5-2 HP, 460V, 3PH
  • Capacity Steel: 1-1/8"
  • Capacity Cast Iron: 1-1/4"
  • Power Feed: Yes
  • Number Of Speeds: 8
  • Spindle Speed: 90-3610 RPM
  • Spindle Travel: 5-7/8"
  • Base Size: 18-3/4" x 26-3/4"
  • Table Work Surface: 20" x 15-3/4"
  • Number Of T-Slots: 3
  • Table Slot Size: 1"
  • Column Diameter: 4-1/8"
  • Spindle To Table: 31-1/4"
  • Overall Dimensions: 18-3/4" x 26-3/4" x 74-1/2"
  • Weight: 594 lbs.
  • MPN: 9680251
  • UPC: 726896802510
