Palmgren 8" x 12" Bench Engine Lathe 115V 1PH - 9684508

Product Code: ET16161
Palmgren 8" x 12" Bench Engine Lathe 115V 1PH - 9684508
Condition: New
Your Price $2,374.99
(You Save 11%)
List Price $2,666.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $40/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help

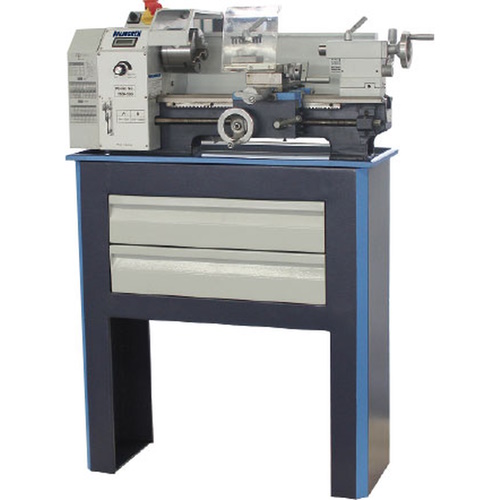

Palmgren 8" x 12" Bench Engine Lathe 115V 1PH

Model Number: 9684508

Features:
  • Experience precision, power, and versatility with the Palmgren Bench Engine Lathe. Constructed with heavy cast iron and helical gears, this lathe is designed to handle a wide range of turning operations, even those normally found in larger machines. The hardened and ground ways ensure trouble-free and precise turning for years to come. Built and inspected to the DIN 8606 toolmakers precision lathe standard, you can be assured of consistent performance and accuracy. The bench lathe is the right choice for turning small metal parts and is used in proto-type shops, home machinists, jewelry manufacturing, tool rooms, fabrication shops, and maintenance shops.
Specifications:
  • Motor: 7/8HP - 115V - 1PH - 60Hz
  • Swing Over Bed: 8"
  • Distance Between Centers: 12"
  • Spindle Taper: MT 3
  • Spindle Bore: 3/4"
  • Number of Spindle Speeds: Variable
  • Spindle Speed: 150 to 2500 RPM
  • Bed Width: 3-15/16"
  • Cross Travel: 4"
  • Compound Travel: 2-1/4"
  • Carriage Travel: 10-1/2"
  • Tailstock Taper: MT 2
  • Tailstock Travel: 2"
  • Thread Range (in): 8 to 44
  • Thread Range (mm): .2 to 4.0
  • Longitudinal Feed Rates: 0.004 to 0.008
  • Overall Length: 33"
  • Overall Width: 16-3/4"
  • Overall Height: 14-1/4"
  • Weight: 135 lbs.
  • MPN: 9684508
  • UPC: 726896845081
