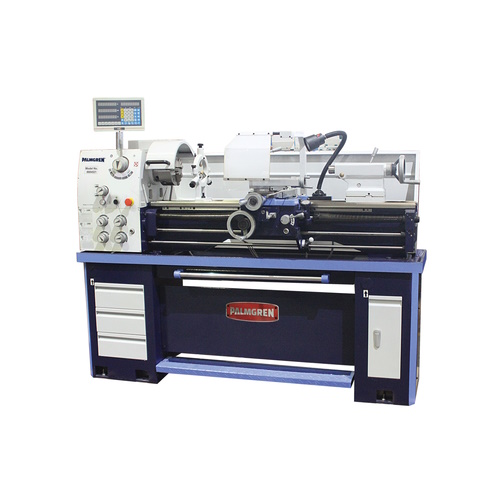

Palmgren Engine Lathe 13" x 40" w/2" Bore 230/460V 3PH

Model Number: 9684550

Features:
  • The Palmgren Engine Lathe with 2" Bore has the ability to handle heavy metal removal and high precision tolerancing, this lathe is perfect for any application. Built and inspected to the DIN 8606 toolmakers precision lathe standard, you can trust in its accuracy and consistent performance. It's no wonder these lathes are used in tool rooms, die and mold shops, fabrication shops, and maintenance departments.
Specifications:
  • Motor: 2HP - 230/460 V - 3PH- 60Hz
  • Swing Over Bed: 13"
  • Distance Between Centers: 40"
  • Spindle Taper: MT 6
  • Spindle Bore: 2"
  • Number of Spindle Speeds: 8
  • Spindle Speed: 70 - 2000 RPM
  • Spindle Seat: Camlock D1-5
  • Bed Width: 7-3/8"
  • Cross Travel: 6-1/3"
  • Compound Travel: 3-3/4"
  • Carriage Travel: 37"
  • Tailstock Taper: MT 3
  • Tailstock Travel: 3-15/16"
  • Thread Range (In.): 4/1/56
  • Thread Range (mm): 0.4 - 7
  • Overall Length: 76"
  • Overall Width: 30"
  • Overall Height: 58"
  • Weight: 1144 lbs.
  • MPN: 9684550
  • UPC:
