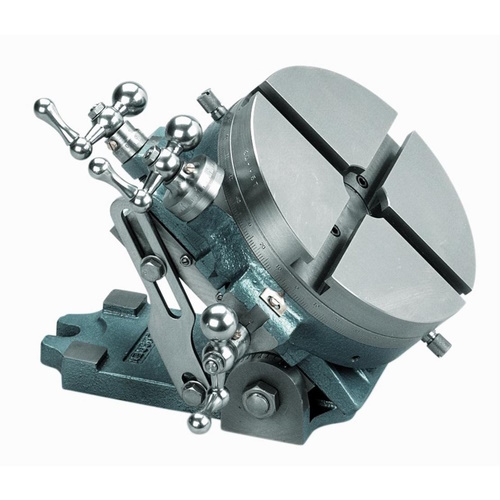

Palmgren Rotary Cross Slide Table w/Angle 10"

Model Number: 9634103

Features:

The Palmgren Rotary Cross Slide Table w/Angle allows for precise, versatile movements and positioning for a variety of applications. This table is designed for drill presses, milling machines, surface grinders, and layout tables and features rotary indexing, lateral and transverse cross feed, and graduated angle settings.
Accurately position work on the “X” and “Y” axis, as well as 360° table rotation
Precision ground table top to 0.001" total indicator reading
A 5/8" keyway and mounting lugs are provided for locating and accurate, secure mounting
Smooth worm gear drive provides positive rotary feed
Balanced ball crank feed handles do not exceed below the base to eliminate interference with the machine table
4" cross slide travel
Cross slide dials are calibrated in 0.001" increments
Rotary dials are graduated in 3 minute increments and 1 minute increment on the vernier
Angular inclination from 0° horizontal to 90° vertical. Angular position is indicated in 1° increments and locked via 4 bolts and 2 side plates
