Seco Adjustable Tilt Monument Mount for 1.5-inch Pipe - 2072-30

Product Code: ES9905

Condition: New

Your Price	$346.99 346.99
	(You Save 19%)

List Price

$427.18

Qty

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

Seco Adjustable Tilt Monument Mount for 1.5-inch Pipe

Model Number: 2072-30

Features:

For 1.5-inch pipe with MPT 1-1/2 x 11-1/2 TPI
The adapters have 3.20-inch (8.19 cm) diameters and overall heights of 3.036 inches (7.71 cm)

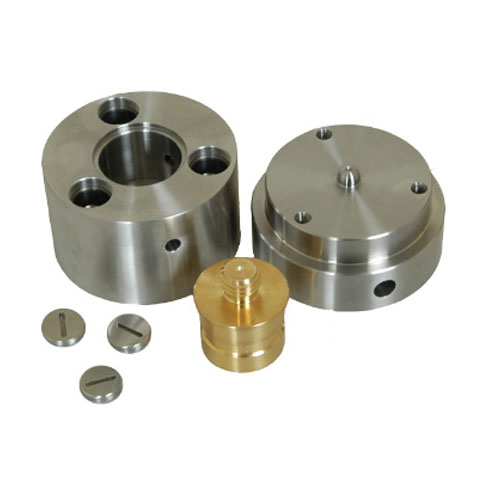

Includes a removable brass 5/8 x 11 male stud that is adjustable in azimuth and held in location by two set screws
Leveled by three screws with a tilt range +/- 7°
The height above the pivot point to the stud shoulder is 1.37 inches (3.50 cm)
The height below the brass 5/8 stud to the shoulder is 0.463 inches (1.18 cm)

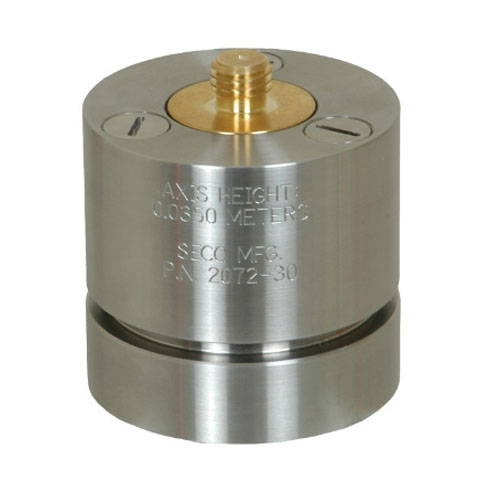

The axis height is engraved on the outside of the monuments
Weighs 5.50 lb (2.50 kg)
