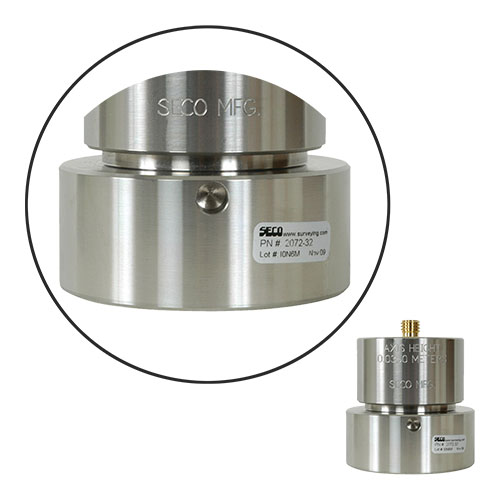

Seco Bottom Monument Mounts for 3-inch Pipe with MPT 3-1/2 x 8 TPI

Model Number: 2072-32-002

Features:

Adjustable-Tilt Monument Adapters are a perfect, professional solution to fit between your GPS antenna and the mast of your network monument.
Adapters in the #2072-Series have 3.20-inch (8.19 cm) diameters and overall heights of 3.036 inches (7.71 cm).
They include a removable brass 5/8 x 11 male stud that is adjustable in azimuth and held in location by two set screws.
The adapters are leveled by three adjusting screws with a tilt range +/- 7 degrees.
The height above the pivot point to the stud shoulder is 1.37 inches (3.50 cm).
The height below the brass 5/8 stud to the shoulder is 0.463 inches (1.18 cm).
The axis height is engraved on the outside of the monuments.

Note: This product contains bottom monument mounts only.
