Spectra Precision DG613 Red Beam Pipe Laser - Over the Top Package (OTT) - DG613-13

Product Code: ET16750

Spectra Precision DG613 Laser - Over-the Top Package, 1263 scope, RC803 IR/Radio Remote Control, P25 power outlet charger, 2 x NiMH Battery Pack, 1 x Charger - DG613-13

Condition: New

Usually ships off dock within:2 to 4 Business Days

Your Price	$4,160.00
	(You Save 20%)

List Price

$5,200.00

Qty

Accepted Payment Types

Free Shipping

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

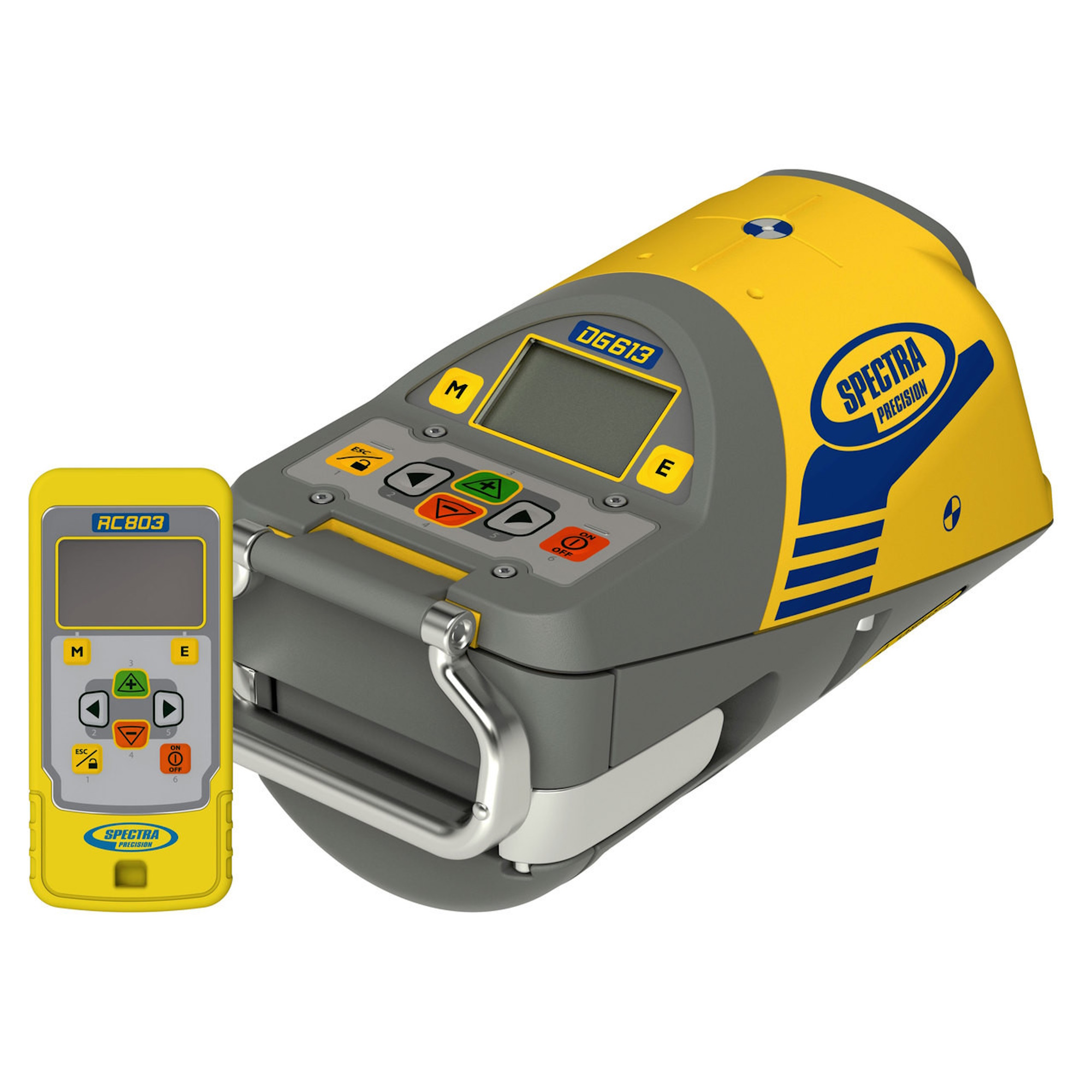

Spectra Precision DG613 Laser - Over-the Top Package, 1263 scope, RC803 IR/Radio Remote Control, P25 power outlet charger, 2 x NiMH Battery Pack, 1 x Charger

Model Number: DG613-13

Features:

The Spectra Precision DG613 Laser - Over-the Top Package, 1263 scope, RC803 IR/Radio Remote Control, P25 power outlet charger, 2 x NiMH Battery Pack, 1 x Charger is a pipe laser kit that includes the DG613 laser and various accessories to help you with pipe laying and alignment tasks over the ground.
DG613 Pipe Laser:
- Can project a laser beam for various pipe laying tasks, such as leveling, plumb, square, and grade applications
- Self-leveling range of -12% to +40% with automatic cross axis compensation

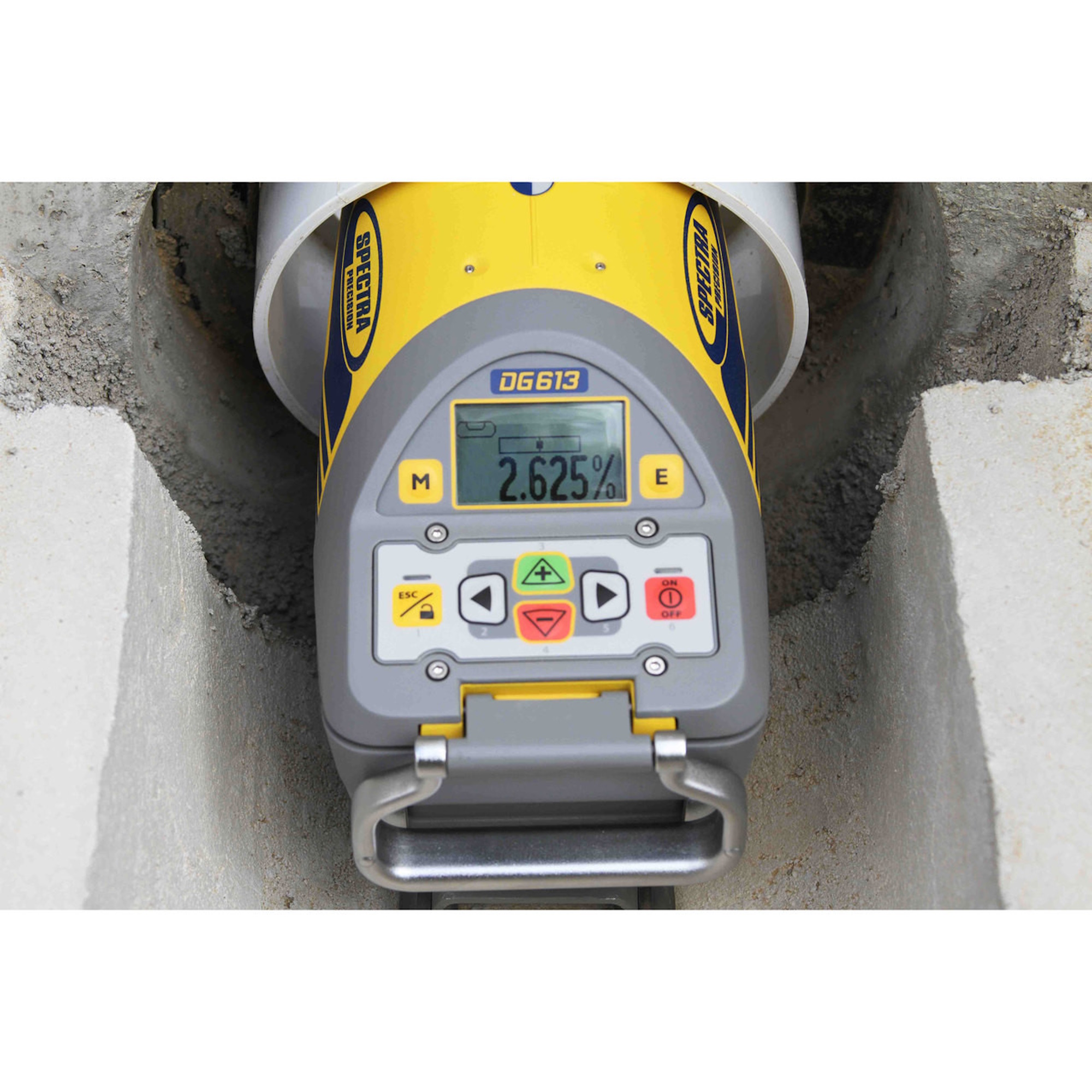

- Large graphical user interface that can be seen easily when the laser is in a manhole
- Advanced functions make setting up and using it easy and accurate:
1230 large invert plate:
- Metal plate that helps you center the laser in the pipe.
- Adjustable legs that can fit pipes with diameters from 200 mm (8 in) to 600 mm (24 in).
- Built-in target holder for the 956 target
1263 scope:
- Optical device that helps you align the laser beam over long distances. It has a magnification of 20x and a field of view of 1°.
- Crosshair reticle for precise targeting.
- Can be mounted on a tripod or on the 1248 trivet plate.
RC803 IR/Radio Remote Control:
- Helps you to control the pipe laser from a distance.
- Works via radio or infrared for both "over-the-top" and in-pipe setups.
- Graphical display that shows the same information as the pipe laser
- Buttons that allow you to adjust the grade, line, and other settings of the pipe laser
P25 power outlet charger:
- Allows you to charge the laser from an AC power source.
- Input voltage of 100-240 VAC and an output voltage of 12 VDC.
- LED indicator that shows the charging status.
NiMH Battery Pack and Charger:
- Can help you to power the pipe laser for up to 40 hours

Applications:

Help you to control the pipe laser from a distance

Works via radio or infrared for both "over-the-top" and in-pipe setups

Graphical display that shows the same information as the pipe laser.

Buttons allow you to adjust the grade, line, and other settings of the pipe laser

Specifications:

Laser Specifications

Accuracy, Self-Leveling (level):1,3: ± 1.5 mm/30 m, (1/16 in @ 100 ft)
10 arc seconds
Operating range1,2: up to 150 m (500 feet)
Laser type
- DG813, DG613: red diode laser 600 - 680 nm
- DG613G: green diode laser 510 - 570 nm
Laser class: Class 3A/3R, <5mW OR Class 2
Self-leveling range
- Longitudinal: Over the entire grade range with automatic cross-axis compensation
Grade range: -12% to +40%
Spot Align search range (DG813): up to +45° (with SF803 tilted to the laser)
Line Range: 20° ±1°
Leveling indicators: LCD indications; beam and LED flash
Power source: 10000mAh NiMH battery pack
Battery life1:
- DG813, DG613: red - 40 hours NIMH
- DG613G: green - 30 hours NIMH
Temperature compensation: Yes
Length: 25 cm (9.8 in)
Diameter: 13,5 cm (5.3 in)
Operating temperature: -20°C to 50°C (-4°F to 122°F)
Storage temperature: -20°C to 70°C (-4°F to 158°F)
Tripod attachments: 5/8 x 11 horizontally
Dust and Waterproof: IP68
Weight: 3.98 kg (6.61 lbs)
Low voltage indication: LCD battery indicator
Low voltage disconnection: unit shuts off

RC803 Specifications

Radio operating range (Over the Top)1,2,5: up to 130 m (425 ft)
IR operating range (front)1,2: up to 150 m (500 ft)
Power source: 2 x 1.5V AA alkaline batteries
Battery life1: 130 hours
Dust and Water proof: IP66
Weight (incl. batteries): 0.26 kg (0.57 lbs)

(1) at 21° Celsius (70° F)
(2) under optimal atmospheric circumstances
(3) along the axis
(4) depending on WIFI/WLAN ambient environment
(5) depending on product height (typ.: three feet / one meter)

MPN: DG613-13
UPC: 692284012529
