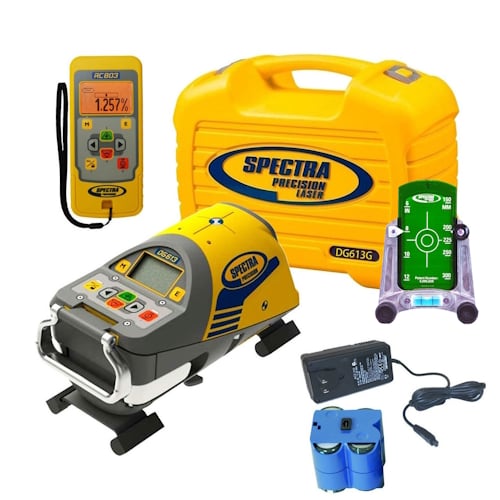

Spectra Precision DG613G Green Beam Laser, 1248 Trivate Plate 8 inch (200mm), RC803 IR/Radio Remote Control, 956G Target, NiMH Battery Pack and Charger

Model Number: DG613G

Features:

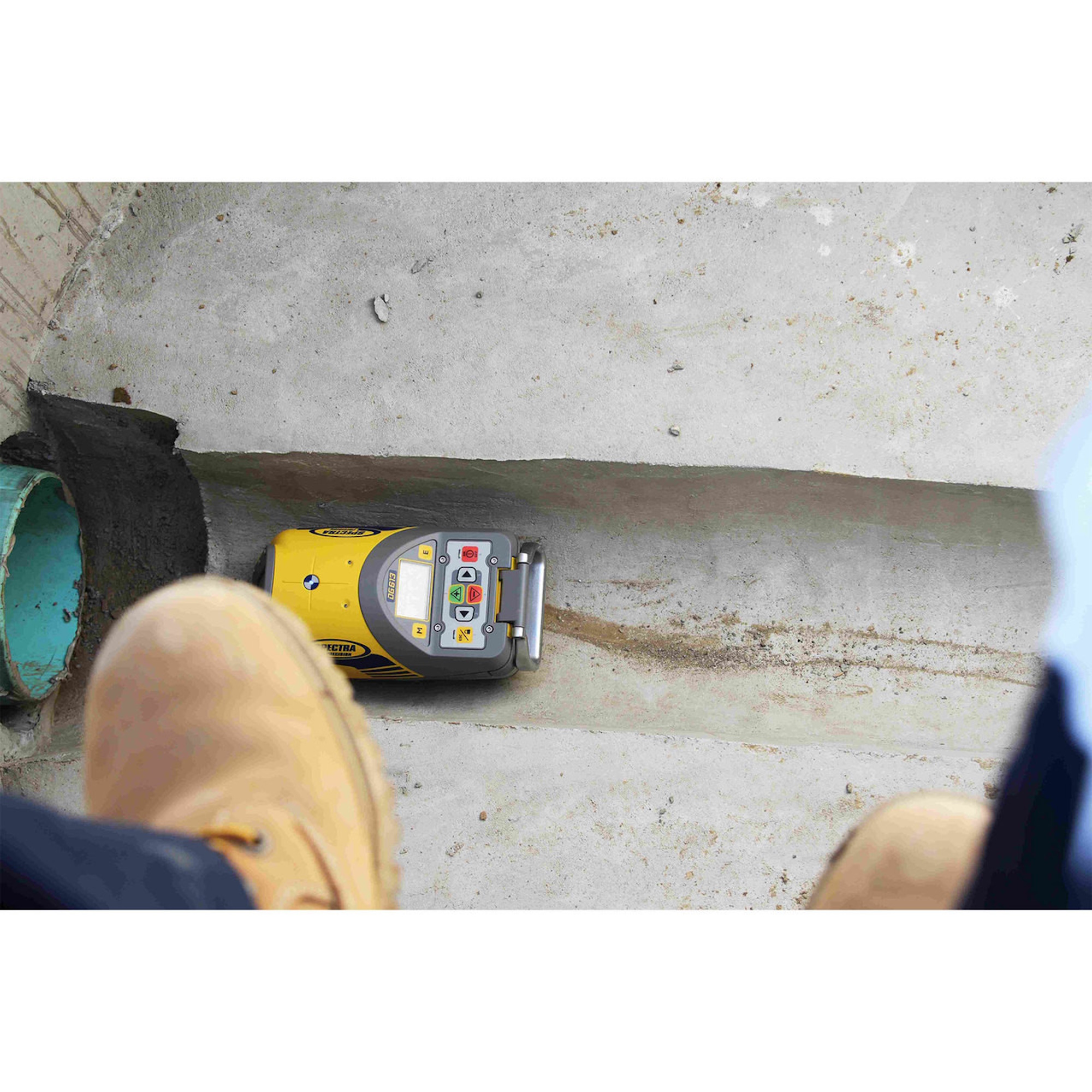

The Spectra Precision DG613G Green Beam Laser, 1248 Trivate Plate 8 inch (200mm), RC803 IR/Radio Remote Control, 956G Target, NiMH Battery Pack and Charger is a pipe laser kit that includes the DG613G laser and various accessories to help you with pipe laying and alignment tasks.

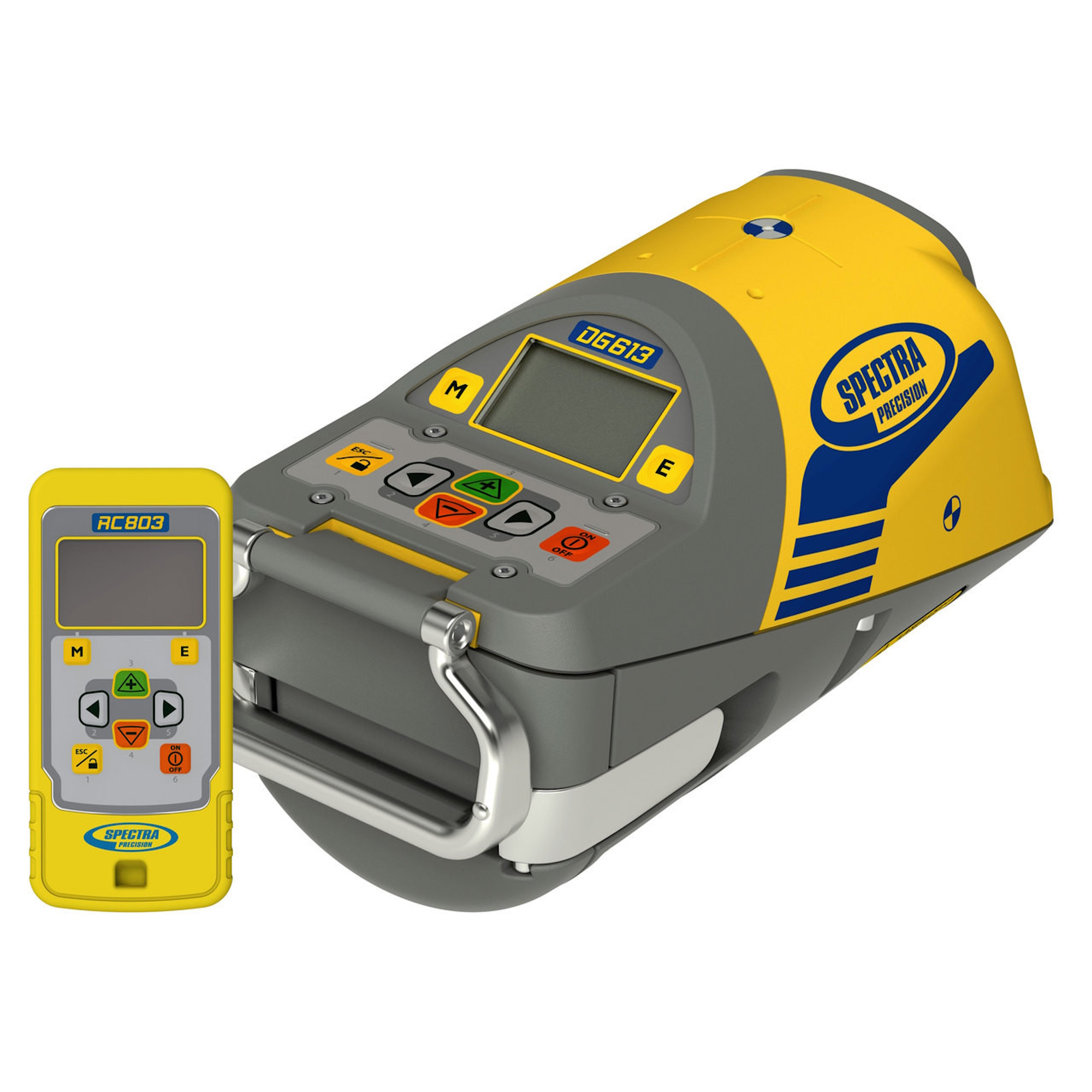

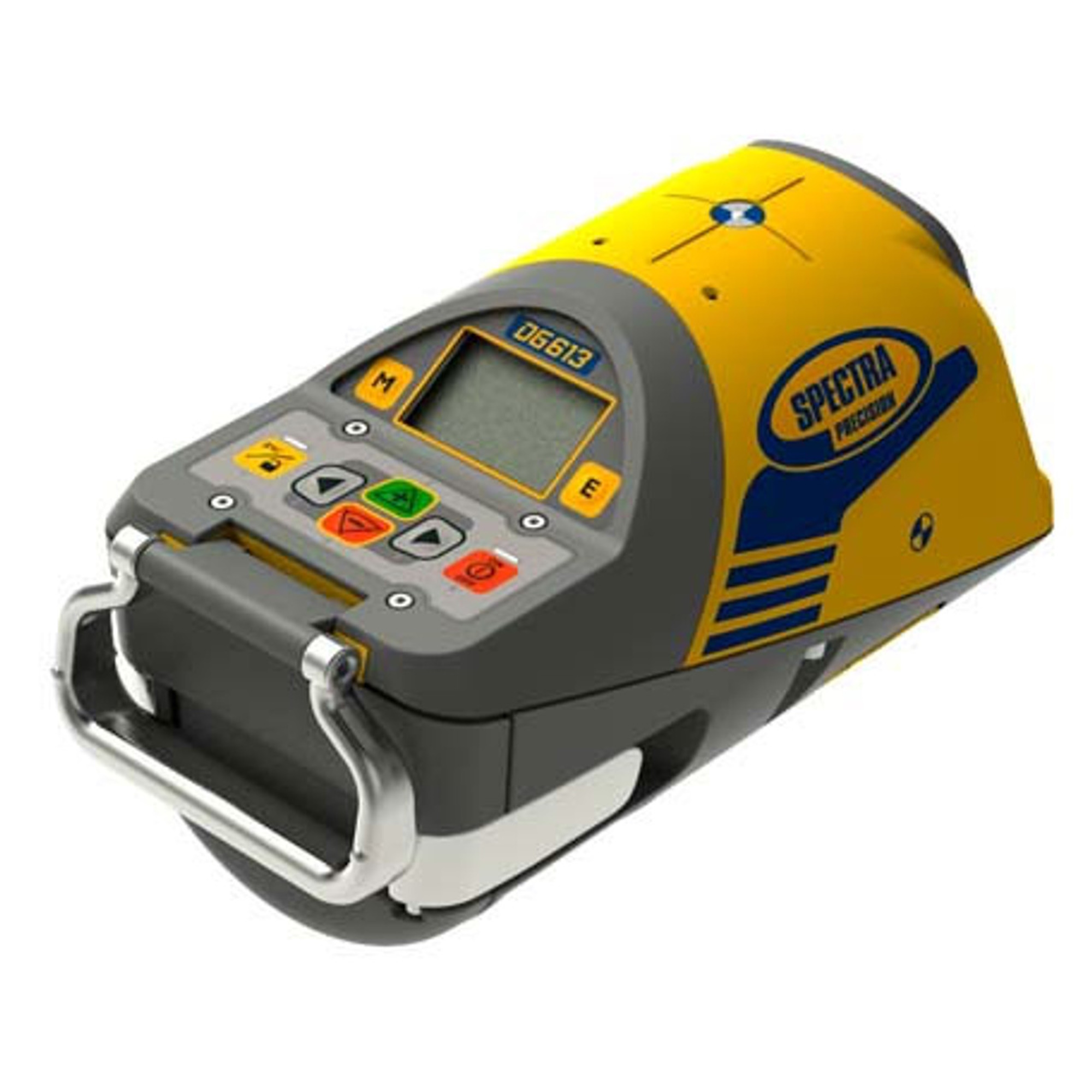

DG613G Pipe Laser:
- Compact and powerful device that can project a green beam over a distance of up to 150 m (500 ft).
- Grade range from -12% to +40% and is fully self-leveling over the entire range.
- Has cross axis compensation, which means that the laser does not have to be level in the pipe.
- Large graphical display on the laser and the remote control, which makes it easy to use and adjust.
- Advanced functions make setting up and using it easy and accurate:
1248 trivate plate:
- Metal plate that helps you center the laser in the pipe.
- Adjustable legs that can fit pipes with diameters from 200 mm (8 in) to 600 mm (24 in).
- Built-in target holder for the 956G target

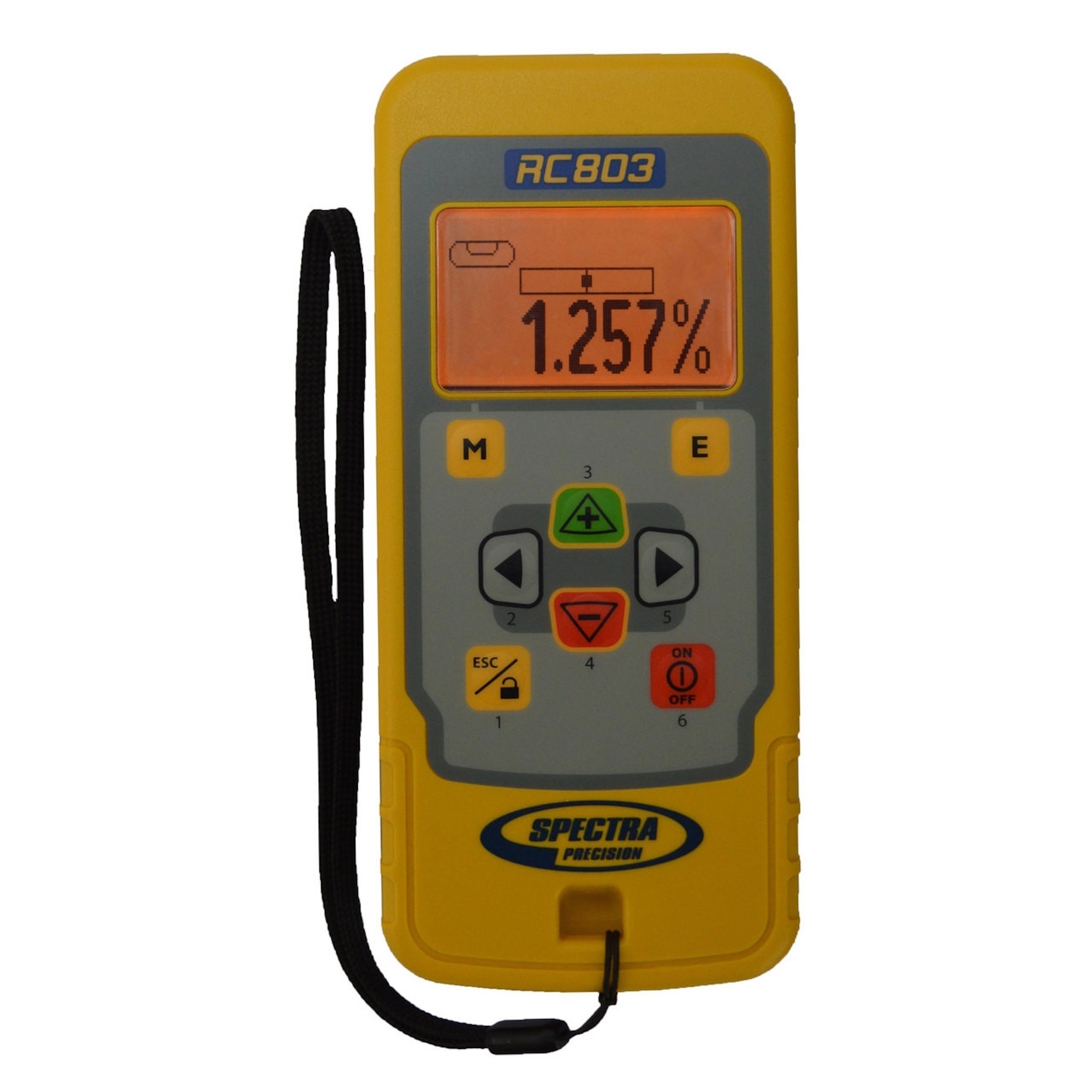

RC803 IR/Radio Remote Control:
- Helps you to control the pipe laser from a distance.
- Works via radio or infrared for both "over-the-top" and in-pipe setups.
- Graphical display that shows the same information as the pipe laser
- Buttons that allow you to adjust the grade, line, and other settings of the pipe laser
P25 power outlet charger:
- Allows you to charge the laser from an AC power source.
- Input voltage of 100-240 VAC and an output voltage of 12 VDC.
- LED indicator that shows the charging status.
956G Target:
- Helps you locate the laser beam in the pipe.
- Has two target plates: one with a small hole for precise alignment, and one with a larger hole for rough alignment.
- Has magnets on the back for attaching it to metal surfaces.
NiMH Battery Pack and Charger:
- Can help you to power the pipe laser for up to 40 hours

Applications:

Help you to control the pipe laser from a distance

Works via radio or infrared for both "over-the-top" and in-pipe setups

Graphical display that shows the same information as the pipe laser.

Buttons allow you to adjust the grade, line, and other settings of the pipe laser

Specifications:

Laser Specifications

Accuracy, Self-Leveling (level):1,3: ± 1.5 mm/30 m, (1/16 in @ 100 ft)
10 arc seconds
Operating range1,2: up to 150 m (500 feet)
Laser type
- DG813, DG613: red diode laser 600 - 680 nm
- DG613G: green diode laser 510 - 570 nm
Laser class: Class 3A/3R, <5mW OR Class 2
Self-leveling range
- Longitudinal: Over the entire grade range with automatic cross-axis compensation
Grade range: -12% to +40%
Spot Align search range (DG813): up to +45° (with SF803 tilted to the laser)
Line Range: 20° ±1°
Leveling indicators: LCD indications; beam and LED flash
Power source: 10000mAh NiMH battery pack
Battery life1:
- DG813, DG613: red - 40 hours NIMH
- DG613G: green - 30 hours NIMH
Temperature compensation: Yes
Length: 25 cm (9.8 in)
Diameter: 13,5 cm (5.3 in)
Operating temperature: -20°C to 50°C (-4°F to 122°F)
Storage temperature: -20°C to 70°C (-4°F to 158°F)
Tripod attachments: 5/8 x 11 horizontally
Dust and Waterproof: IP68
Weight: 3.98 kg (6.61 lbs)
Low voltage indication: LCD battery indicator
Low voltage disconnection: unit shuts off

RC803 Specifications

Radio operating range (Over the Top)1,2,5: up to 130 m (425 ft)
IR operating range (front)1,2: up to 150 m (500 ft)
Power source: 2 x 1.5V AA alkaline batteries
Battery life1: 130 hours
Dust and Water proof: IP66
Weight (incl. batteries): 0.26 kg (0.57 lbs)

(1) at 21° Celsius (70° F)
(2) under optimal atmospheric circumstances
(3) along the axis
(4) depending on WIFI/WLAN ambient environment
(5) depending on product height (typ.: three feet / one meter)

MPN: DG613G
UPC: 692284012949
