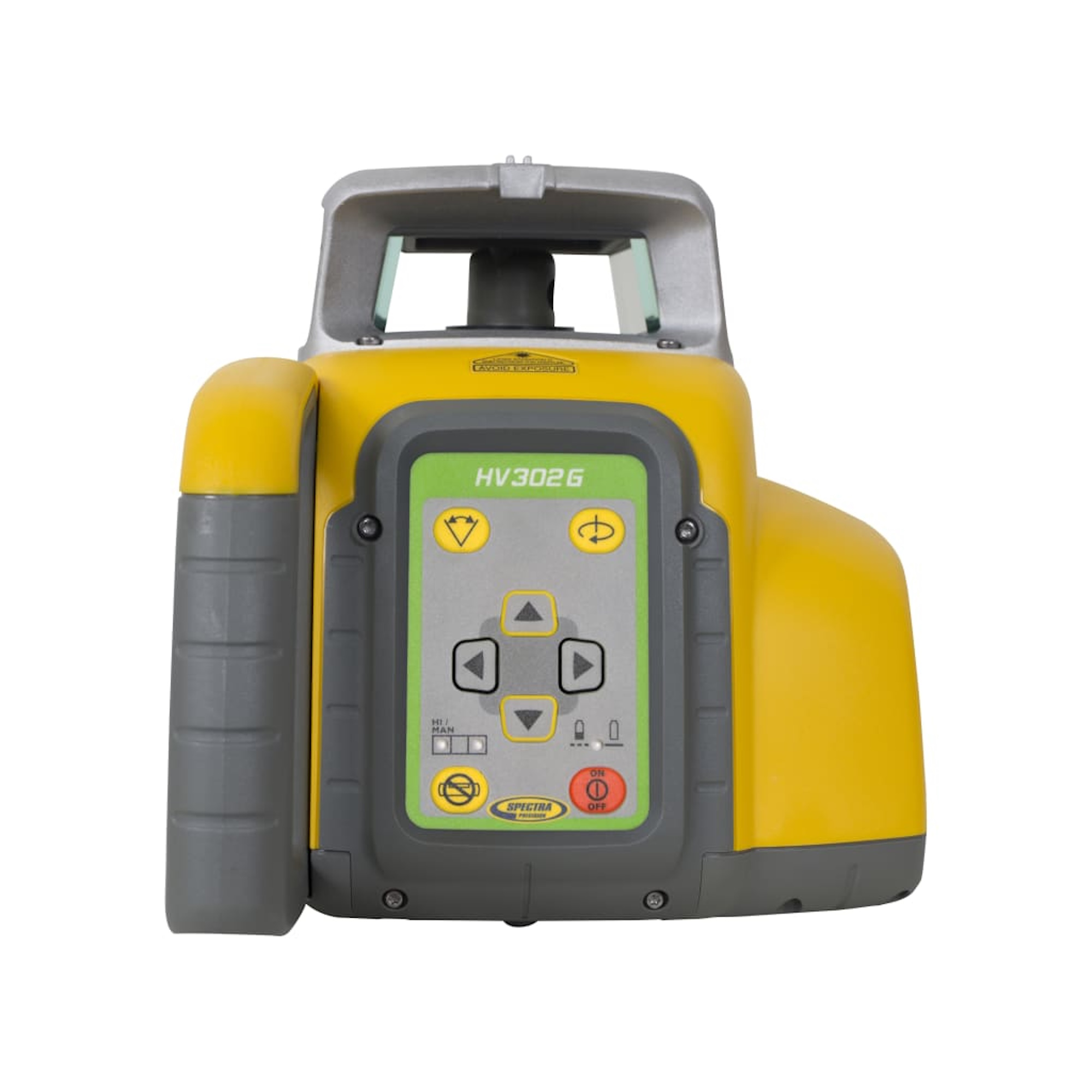

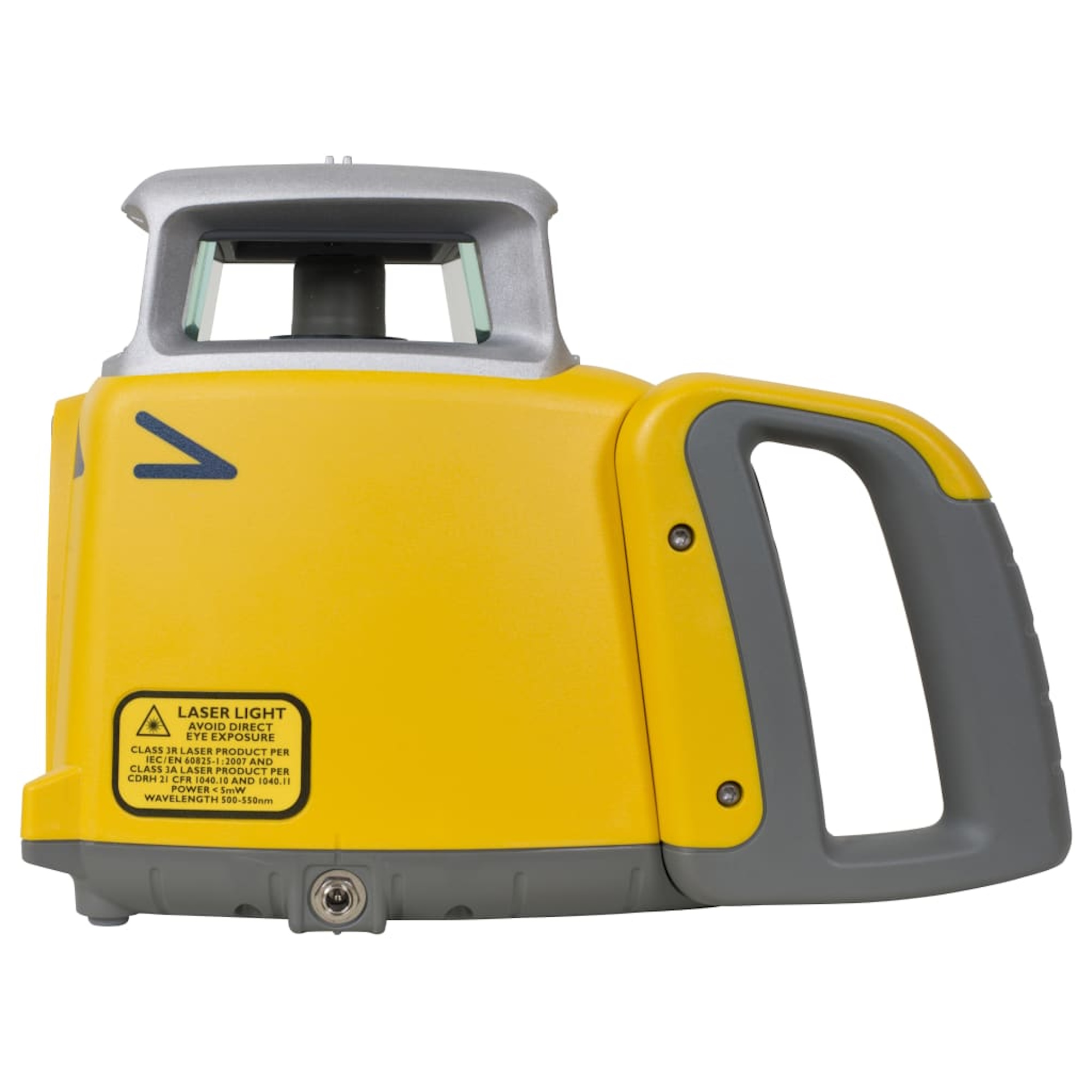

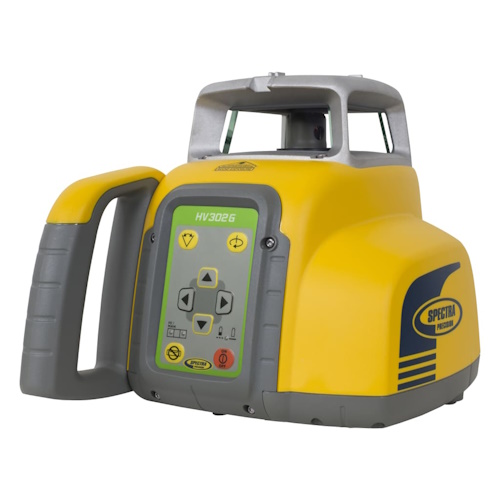

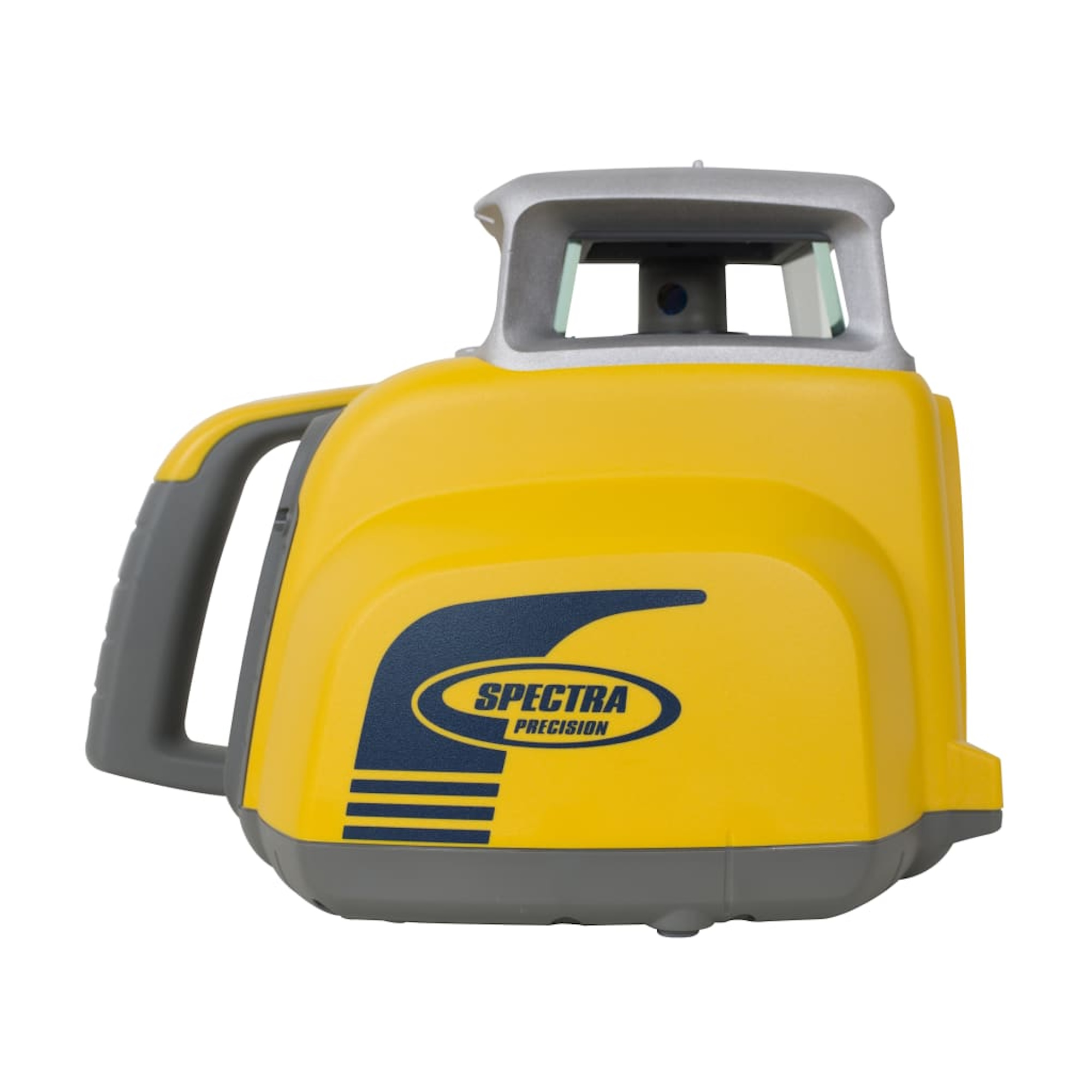

Spectra Precision HV302G-7 Green Beam HV-Laser, HL760U, C70, RC402N, M302, Q104124, Glasses, NiMH Batteries and Universal Charger - HV302G-7

• The Spectra Precision HV302G-7 Green Beam HV-Laser, HL760U, C70, RC402N, M302, Q104124, Glasses, NiMH Batteries and Universal Charger is a complete green beam laser level system that offers high visibility and versatility for a range of interior applications.
• Automatic horizontal and vertical self-leveling
• Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
• Working range of 800 m (2,600 ft) diameter
• High-visibility beam – easily visible even in brightly lit conditions
• Split beam – enables plumb point transfer and 90-degree layout
• Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
• Long range RC402N Radio remote control
• Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
• Extremely durable and portable
• 5 Year warranty
• Includes:
• Receiver: No
• Wall Mount: M302
• Ceiling Target: Yes
• Remote: RC402N

All part numbers include HV302G laser glasses, transmitter, case and NiMH battery pack with charger

• Interior, light to medium commercial and residential construction
• Squaring/layout
• Leveling and aligning of interior walls
• Installation of ceilings and raised floors
• Interior finishing work
• Vertical alignment
• Plumb

HV302G Specifications
• Leveling accuracy1,3: ± 1.5 mm/30 m, 1/16" @ 100 ft, 10 arc seconds
• Operating visible radius1,2: 75 m (250 feet)
• Rotation: 0, 10, 80, 200, 600 rpm
• Pre-selected scan sizes: 5°, 15°, 45°, 90°, 180° and 0
• Laser type: green diode laser 520 nm
• Laser class : Class 3A/3R, max. 5 mW
• Self-leveling range: ± 5° (±9%)
• Leveling indicators: LED flashes
• Radio range (HL760U): up to 100 m (330 ft)
• Power source: 10.000 mAh NiMH battery pack
• Battery life1: 30 hours NiMH; 45 hours alkaline
• Operating temp.: 0°C to 40°C (-4°F to 122°F)
• Storage temp.: -20°C to 70°C (-4°F to 158°F)
• Tripod attachments: 5/8 x 11 horizontally and vertically
• Dust and waterproof: Yes - IP66
• Weight: 3.1 kg (6.8 lbs)
• Low voltage indication: LED battery indicator
• Low voltage disconnection: unit shuts off
• Warranty: 3 Years

• Operating range1,3: up to 100 m (330 ft)
• Power source: 2 x 1.5V AA alkaline batteries
• Battery life1: 130 hours
• Dust and waterproof: Yes - IP66
• Weight: 0.26 kg (0.57 lbs)

• Digital readout units: mm, cm, ft, in, frac. in
• Reception height: 127 mm (5 inches)
• Six On-grade sensitivities:
• Ultra Fine 0.5 mm (~1/32 in)
• Super Fine 1 mm (~1/16 in)
• Fine 2 mm (~1/8 in)
• Medium 5 mm (~1/4 in)
• Coarse 10 mm (~1/2 in)
• Calibration Mode 0.1 mm (~1/64 in)
• Battery life1 (2 x AA): 60+ hours continuous operation
• Auto shut-off: 30 minutes/24 hours
• Operating temp.: -20°C to 50°C (-4°F to 122°F)
• Dust and waterproof: Yes - IP67
• Weight: 0.37 kg (13.1 oz)
• Warranty: 3 Years "No Excuses"
