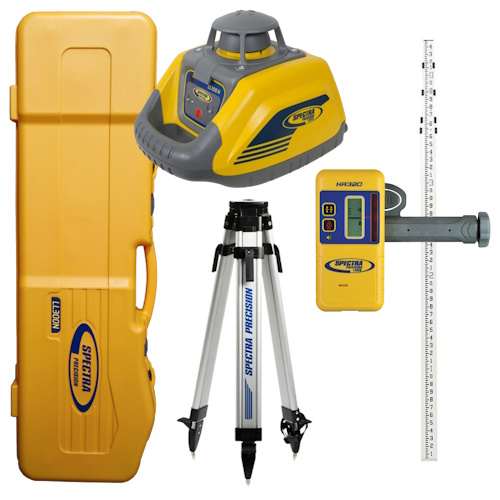

Spectra Precision LL100N Laser Level Package w/HR320 Receiver, C59 Clamp, Q104025 Tripod, GR153 5 Meter Grade Rod, System Case

Model Number: LL100N-3

Features:

Easy to transport, easy to store, easy to use
Fully automatic self-leveling rotating laser provides fast and accurate setup
Robust design withstands a 3 ft (1 m) tripod tip over and still remains functional, reducing costs for downtime or repair
Height of Instrument alert stops laser rotation if elevation changes occur to avoid erroneous readings
HR320 receiver offers 2 accuracies and has grade displays front and rear
Accuracy 1/8 inch @ 100 ft (3mm @ 30 m)
One-person elevation control up to working range of a 1,150 ft (350 m) diameter
Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
Rotor cage can be removed for precise 360°coverage
Extremely durable and portable
Optional RC601 remote control allows easy grade matching using the remote control from rod position
Exclusive 2-year limited warranty with instant “over the counter” exchange policy eliminates downtime

Applications:

General elevation control
Leveling forms and footers
Estimating cut and fills
Basic slopes for driveways and ramps
Checking/setting elevations, concrete forms, footings, and foundations for smaller job sites
Ideal for patio decks, terraces, swimming pools, septic systems, and leach fields
Estimating cut and fill

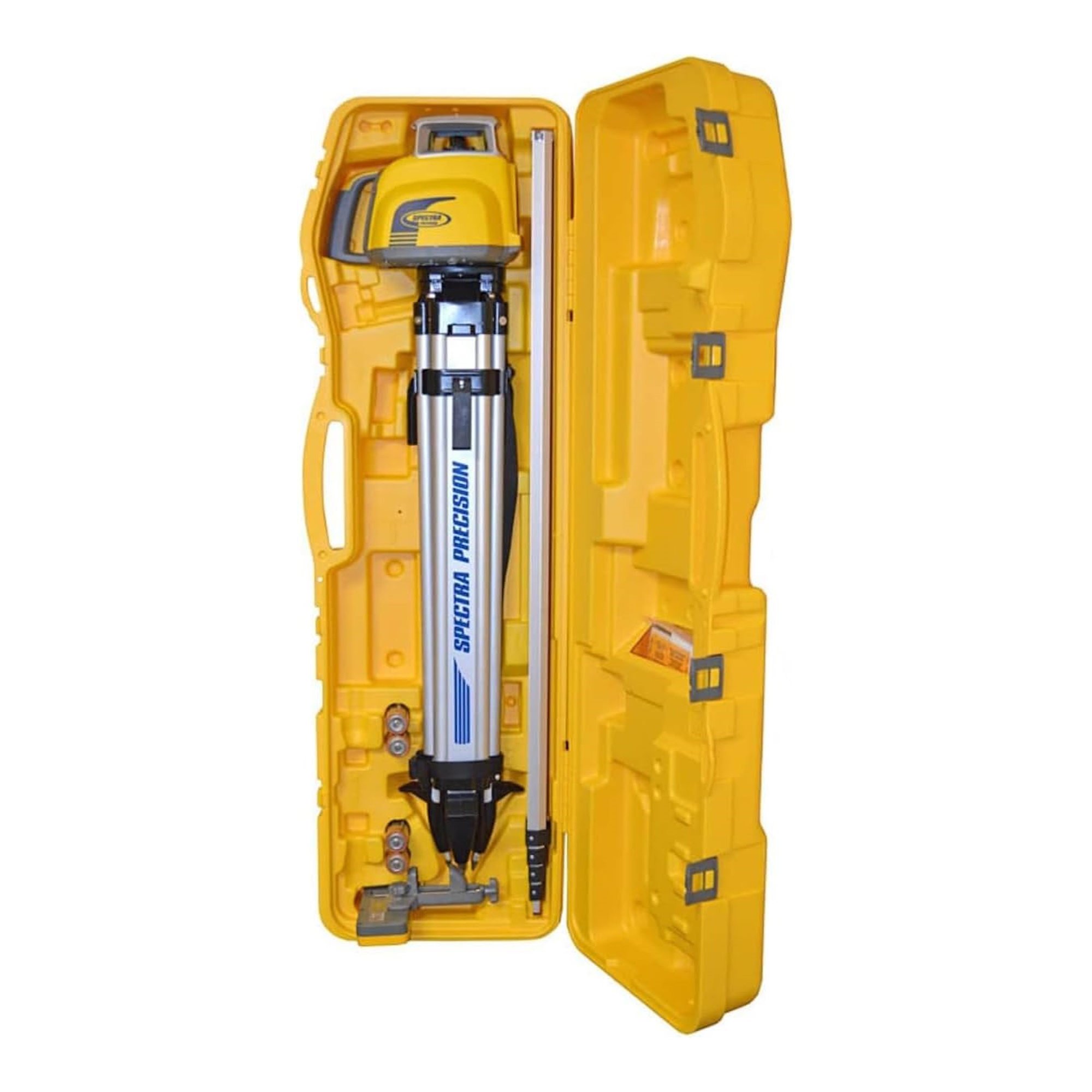

Includes:

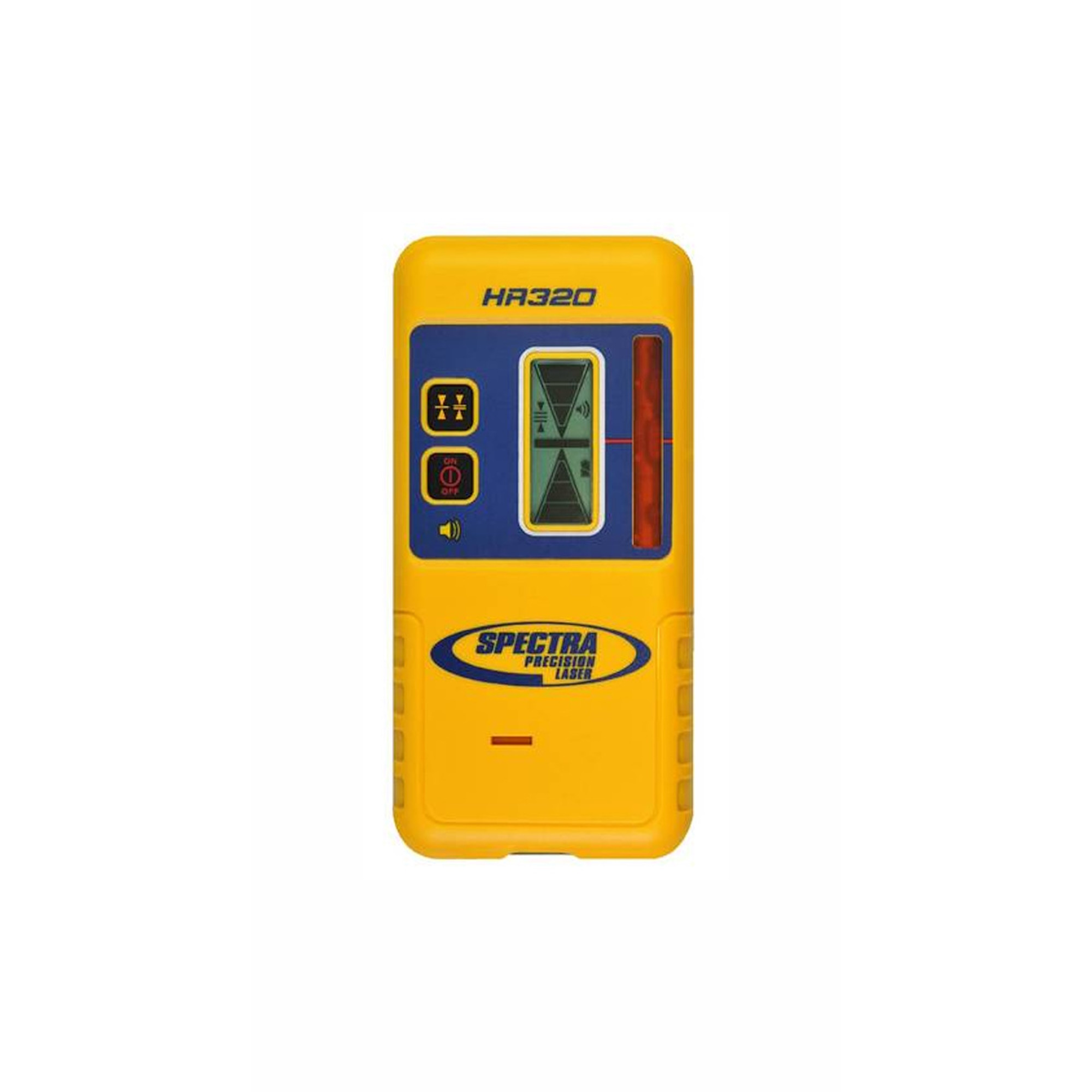

Receiver: HR320

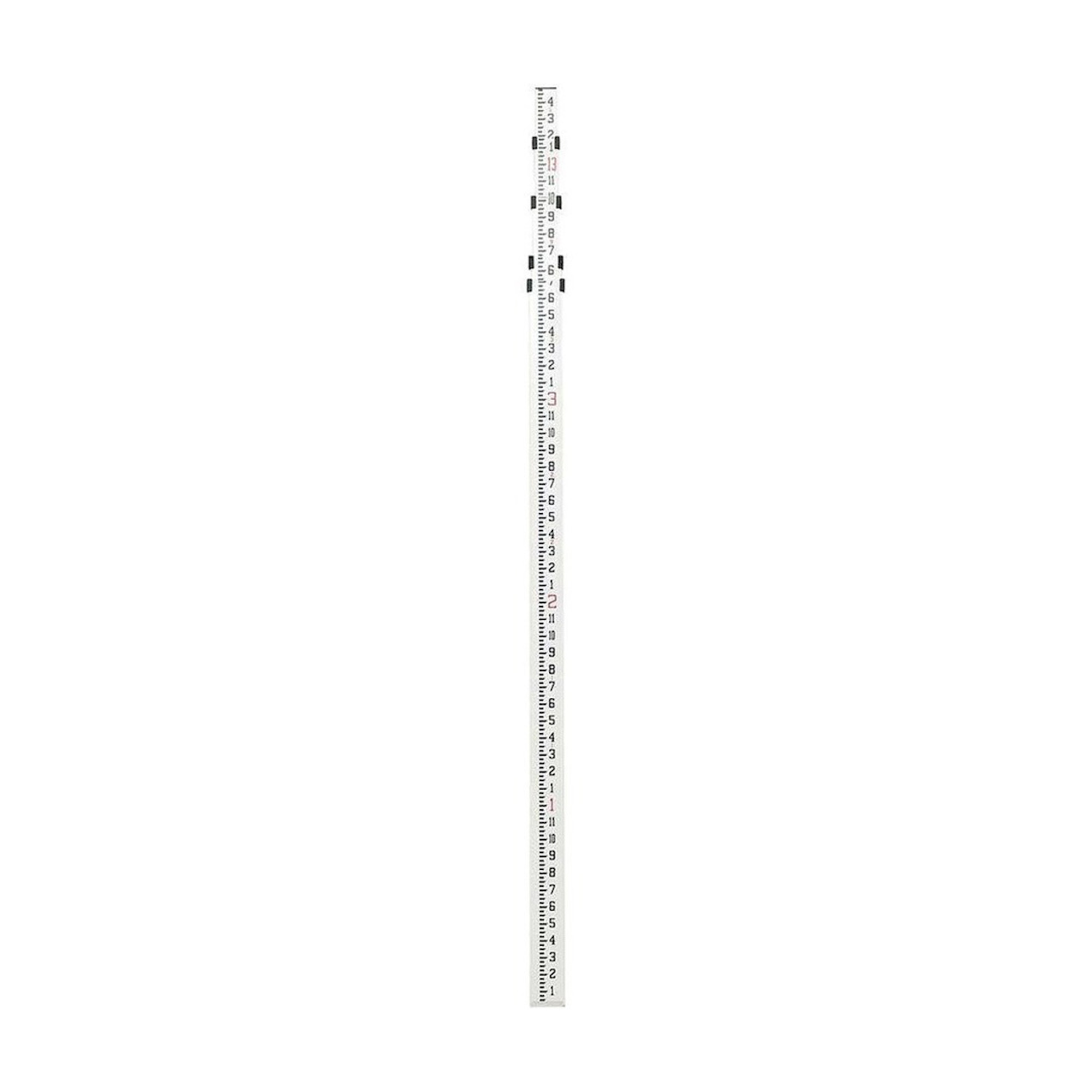

Rod: GR153 Metric

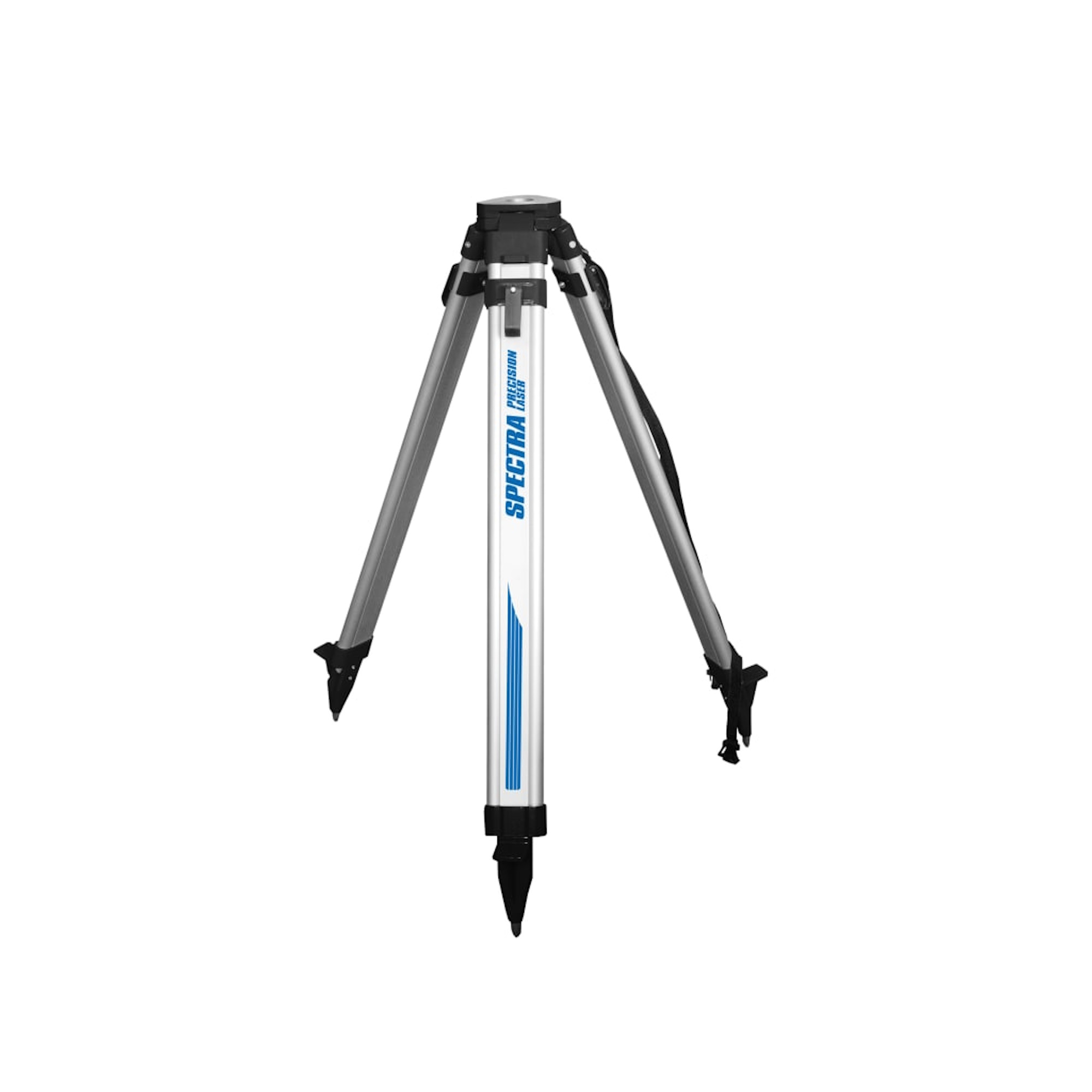

Tripod: Q104025
Case: System Case

All part numbers include LL100N, HR320 receiver, C59 Adapter for receiver, case, retail carton graphics, 2 D, and 2 AA Alkaline batteries.

Specifications:

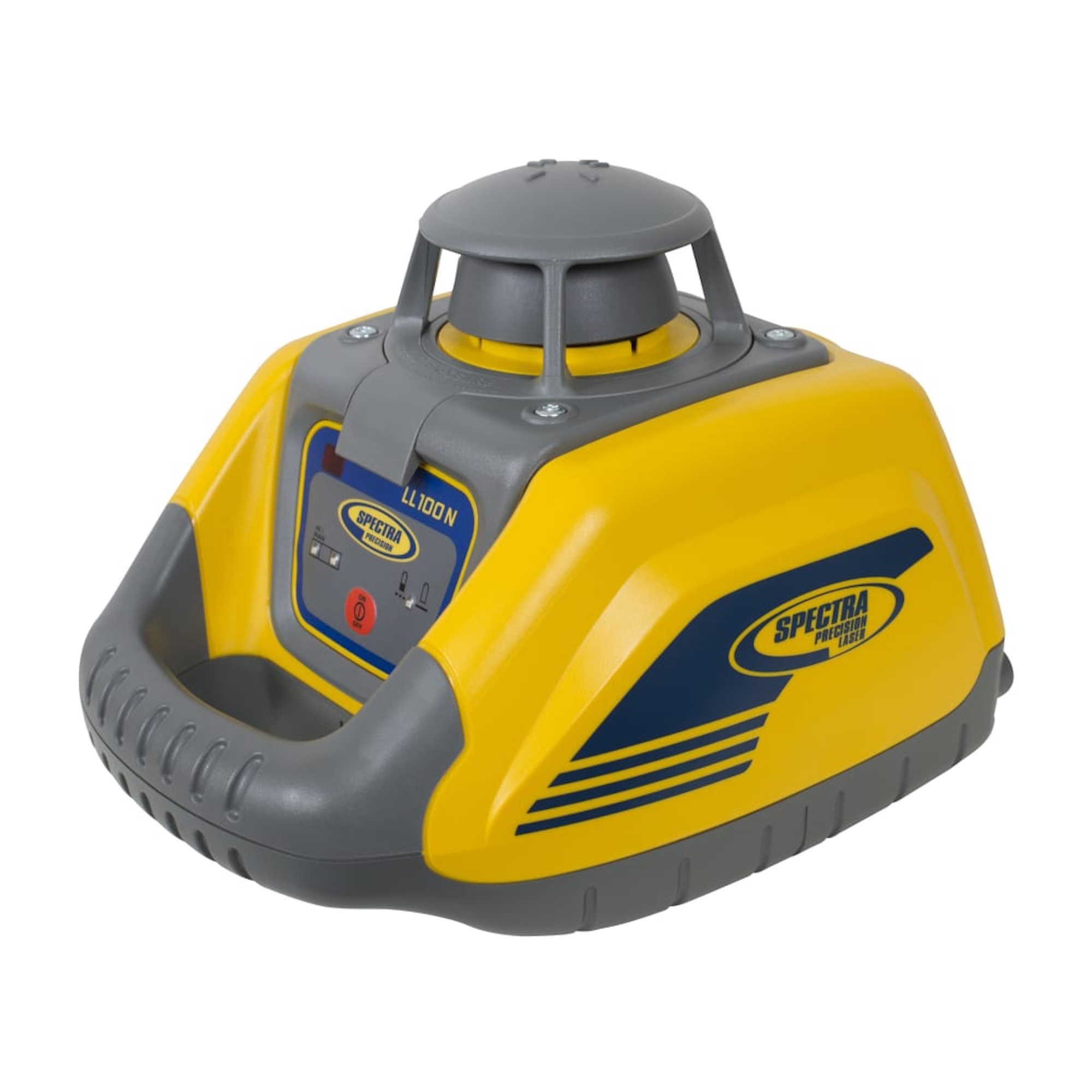

LL100N

Laser Source: 650 nm visible, Class 2
Laser Accuracy: ±1/8 in at 100 ft (±3 mm at 30 m)
Operating Range: 1,150 ft (350 m) diameter with receiver HR320
Self-leveling Range: ±5 degrees electronic servo self-leveling
Compensation Method: Electronic self-leveling
Drop Height on Concrete performance: 3 ft (1 m)
Single Axis Manual Slope Mode: Yes
Out-of-level warning: Rotor stops, laser shuts off, red out-of-level LED flashes
Power source: 2 x "D" Alkaline Batteries
Battery life: 80 hours Alkaline
Battery Status LED: Flashing red LED
Rotation speed: 600 RPM
Tripod Mount (Horizontal and Vertical): 5/8" x 11
Operating temperature: 23 °F to 113 °F (-5 °C to 45 °C)
Storage temperature: -4 °F to 158 °F (-20 °C to 70 °C)
Water resistant: Yes, and IP54 sealing
Size: 8.5L × 6.7W × 6.0H in (21.6L × 17.1W × 15.2H cm)
Weight: 3.3 lbs (1.5 kg)

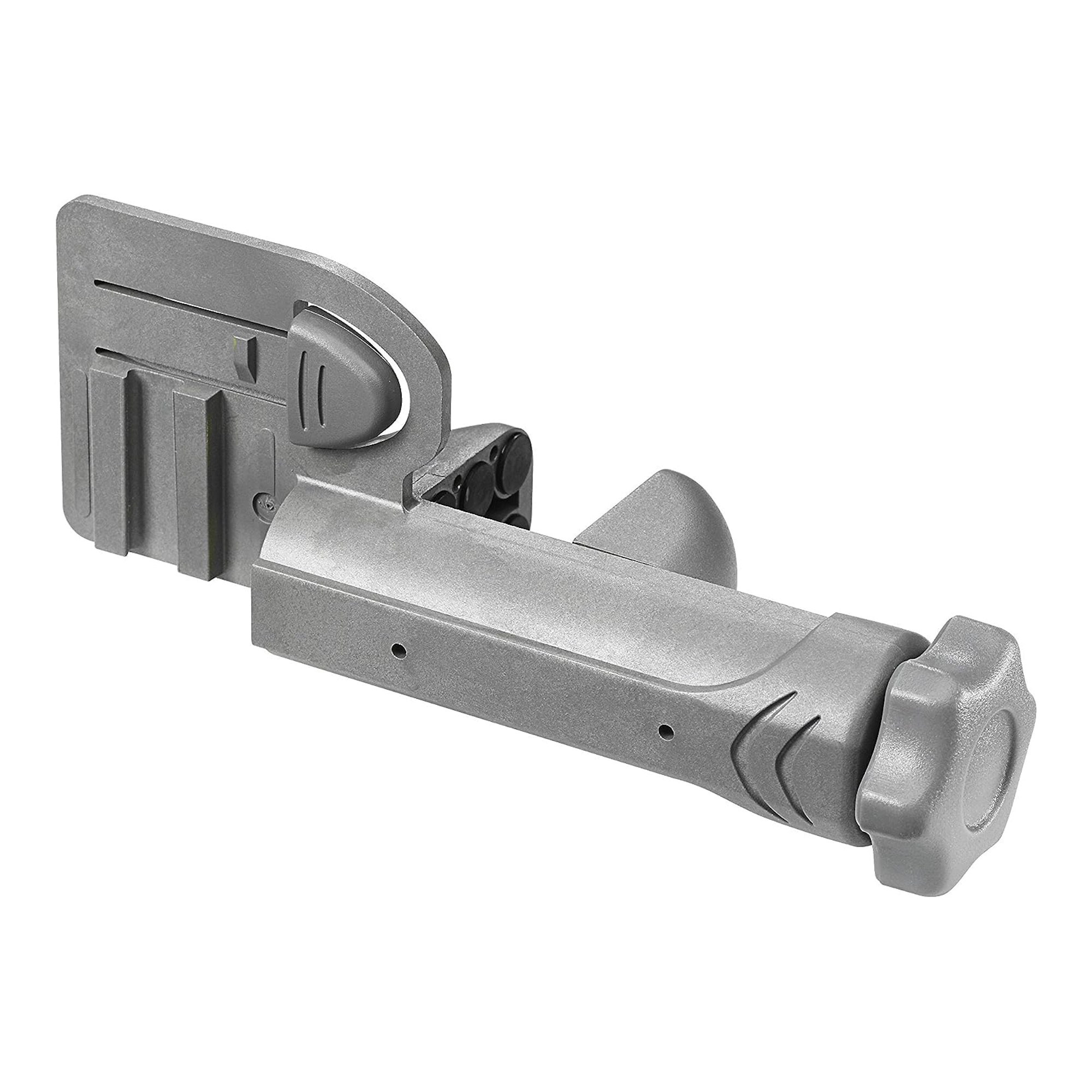

Receiver / Clamp: HR320/C59
Case: Small Case 1282/1970
Warranty: 2 Years
