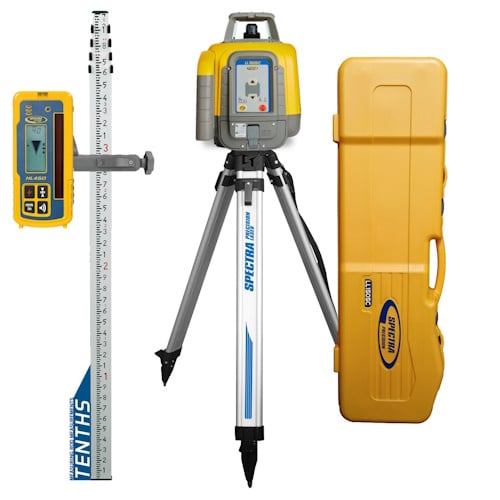

Spectra Precision LL1505C Horizontal Laser Package (Tenths) - LL1505C-1

The Spectra Precision LL1505C Laser Level is a robust, automatic, self-leveling tool designed to endure various general and concrete construction tasks. Capable of withstanding drops up to 1 meter (3 feet) onto concrete and tripod tip overs up to 1.5 meters (5 feet), its durability minimizes downtime and repair costs. With full weatherproofing and dustproofing, this laser level ensures reliable performance throughout its lifespan.

• Automatic self-leveling - horizontal & vertical
• Accuracy 1.5mm / 30m (1/16 inch / 100 ft)
• Working range of 1200m (4,000 ft) diameter with HL760 receiver
• Bluetooth connection allows laser control with a smartphone
• Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
• Simple keypad for easy grade matching
• Selectable rotation speed is ideal for working with machine mounted receivers
• Power versatility - charge the batteries inside or outside the laser. Alkaline batteries can also be used
• Extremely durable and portable
• 5 Years warranty

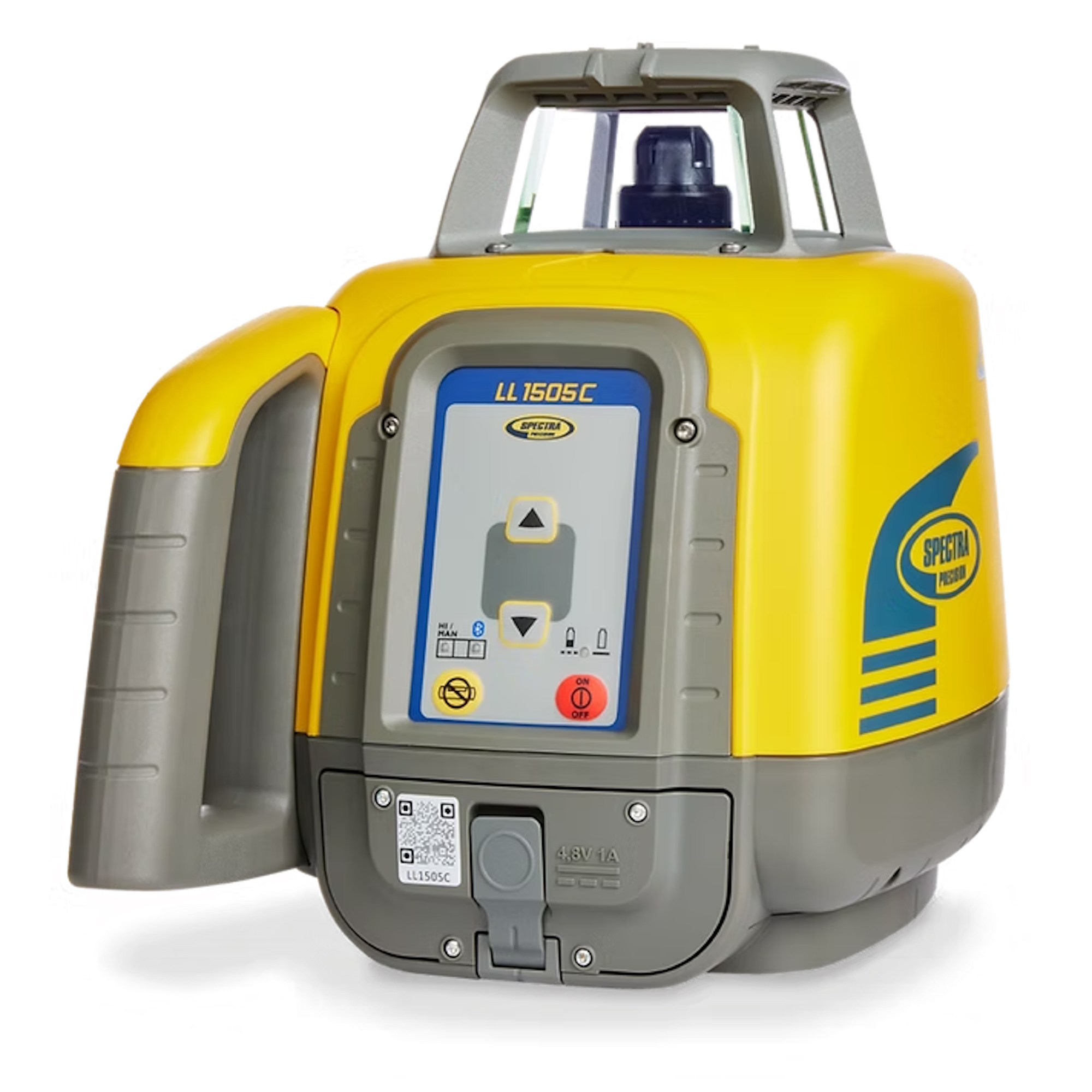

• LL505C Laser Level

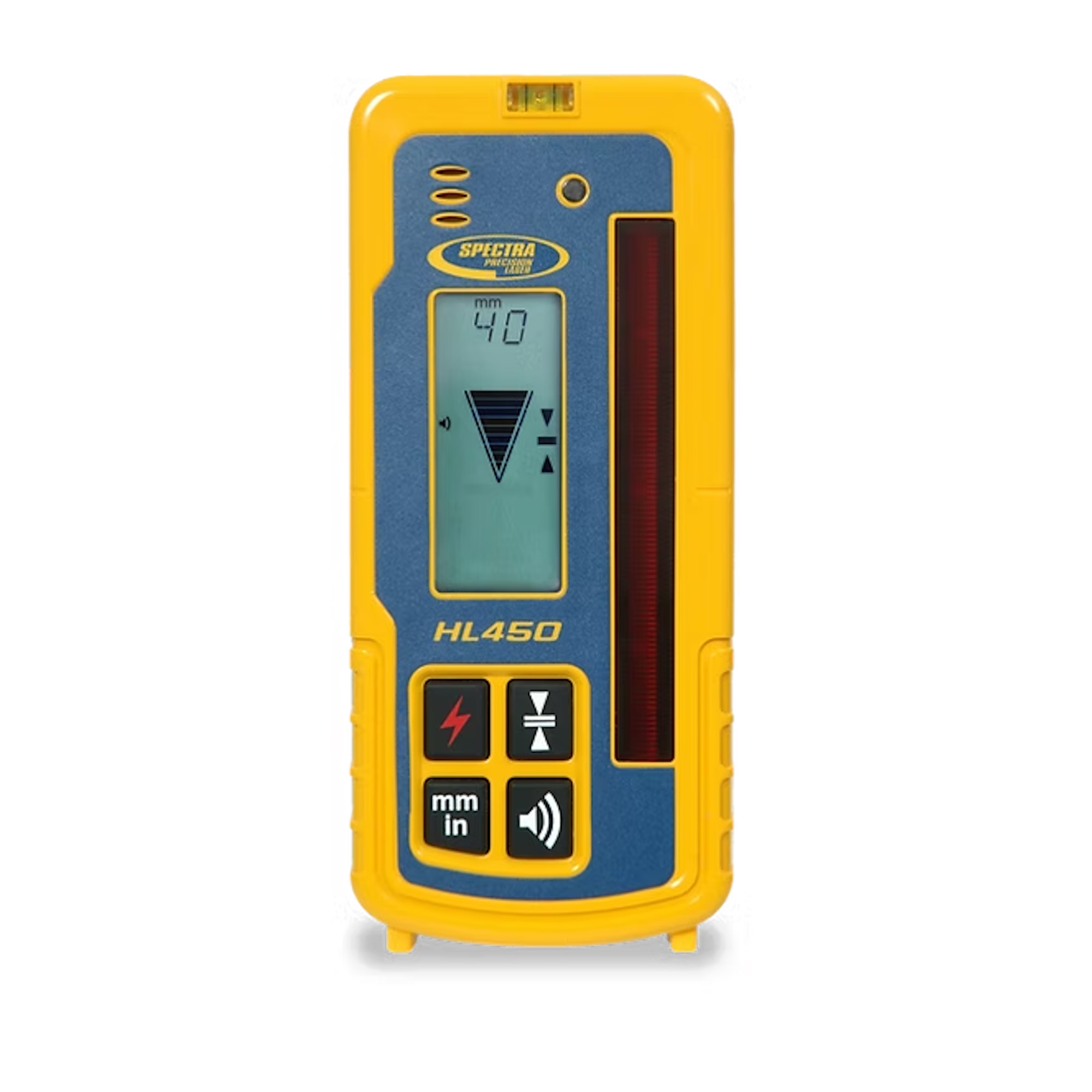

• HL450 Laser Receiver
• Rod Clamp C45
• B10 NiMH battery pack
• CH10 Charger
• GR151 rod (15' - tenths)
• Q104025 Aluminum Tripod
• 128995-00 System Case

• Leveling Accuracy: ± 1,5mm / 30m; 1/16 in @ 100ft; 10 arc seconds
• Rotation Speed: 300, 600, 900 rpm
• Self-Leveling Range: Typ. ± 5° (± 8.7%)
• Radio Range: HL760-Up to 100m (330 ft)
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Storage Temperature: -25°C to +70°C (-13°F to +158°F)
• Power Source: 10,000 mAh NiMH battery back or 4 x 1.5V D alkaline batteries
• Battery Lifetime (NiMH): Up to 55 hours
• Battery Charging Time: < 10 hours
• Battery Charging Temperature: 5°C to +40°C (+41°F to +104°F)
• Charger Input Voltage: 100V-240VAC ± 10%, 50 Hz – 60 Hz
• Dust and Water Proof (IP): IP66
• Weight: 3.49 kg (7.7 lbs) (incl. Battery pack)
• Product Dimensions: 240mm x 280mm x 180mm (9.45 in x 11.02 in x 7.09 in)

• Fine ~1/16 in (1 mm)
• Medium ~1/4 in (5 mm)
• Calibration Mode ~1/64 in (0.1 mm)
