Spectra Precision LL500 Laser Level w/HL700 Receiver, C70 Rod Clamp, NiMH Rechargeable Batteries and Charger - LL500-4

Product Code: ET16600
Spectra Precision LL500 Laser Level w/HL700 Receiver, C70 Rod Clamp, NiMH Rechargeable Batteries and Charger - LL500-4
Spectra Precision LL500 Laser Level w/HL700 Receiver, C70 Rod Clamp, NiMH Rechargeable Batteries and Charger - LL500-4
Condition: New
  • Usually ships off dock within:14 to 21 Business Days
Your Price $1,616.00
(You Save 20%)
List Price $2,020.00

Accepted Payment Types

Apply Now
Easy Financing Available
as low as $27/mo
for 60 months. Details

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help

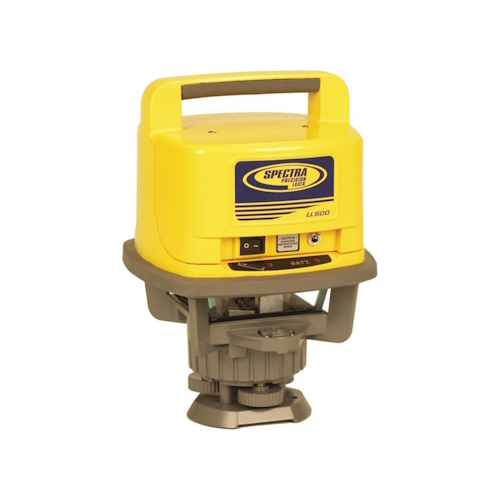

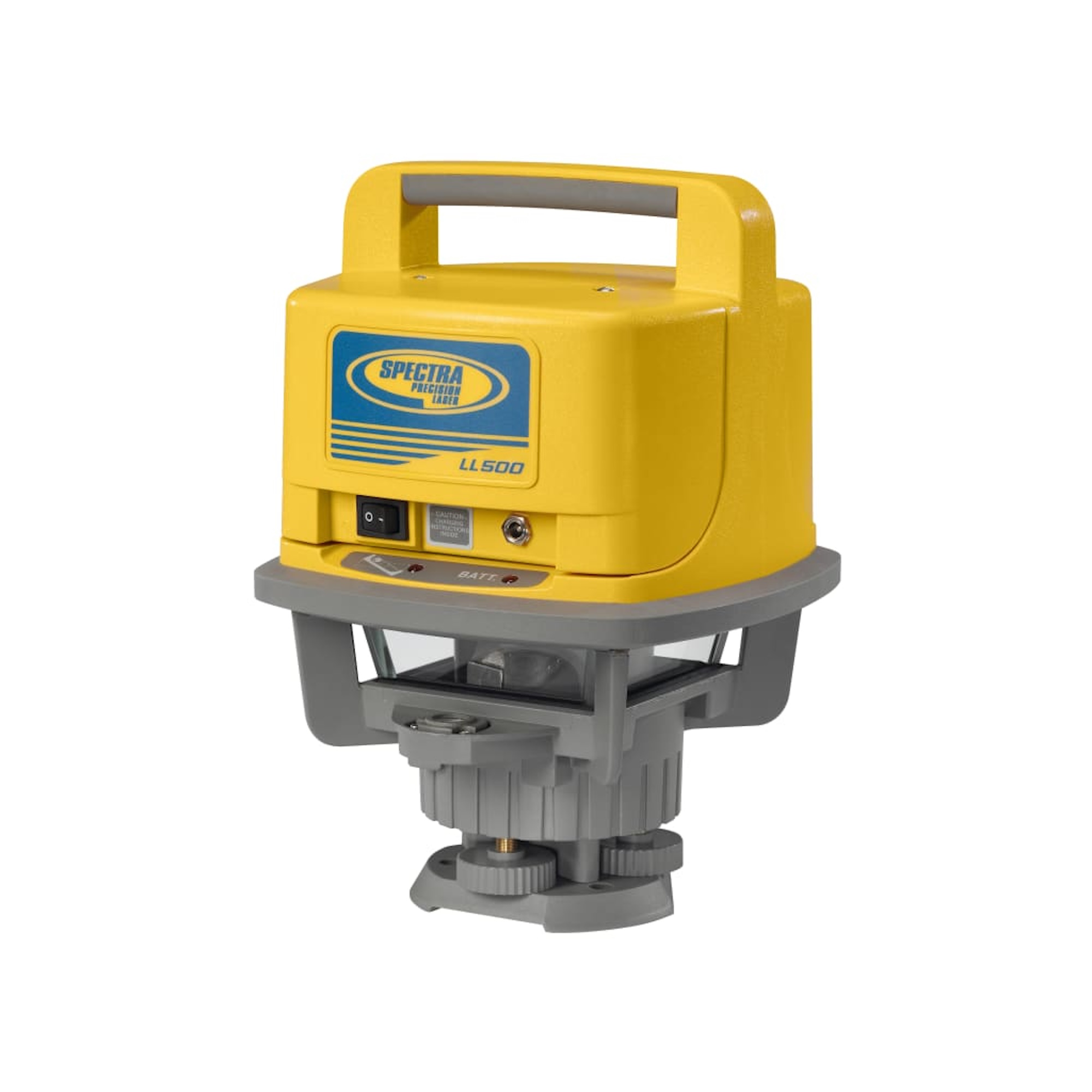

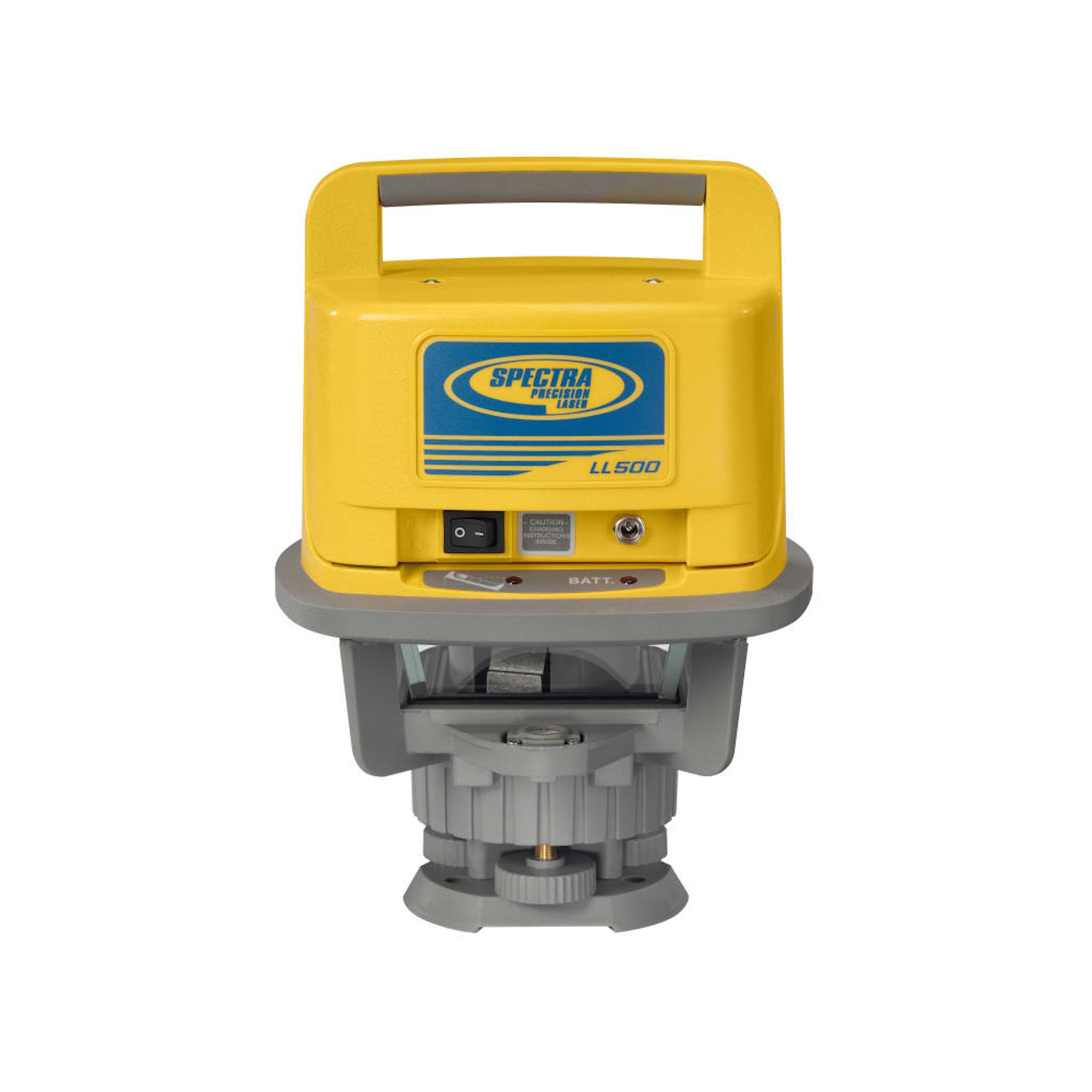

Spectra Precision LL500 Laser Level w/HL700 Receiver, C70 Rod Clamp, NiMH Rechargeable Batteries and Charger

Model Number: LL500-4

Features:
  • The Spectra Precision LL500 Laser Level w/HL700 Receiver, C70 Rod Clamp, NiMH Rechargeable Batteries and Charger is a complete one-person leveling system that delivers high accuracy and reliability for a range of construction applications.
  • 1,650 ft (500 m) working diameter which increases productivity by reducing need for multiple set-ups on a large job site
  • Self-leveling with built-in 'out-of-level' shut off that maintains accuracy over the entire work area, and minimizes errors
  • High accuracy laser, 1/16 in per 100 ft (1.5 mm per 30 m) with temperature compensation provides highly stable, repeatable accuracy even under large temperature changes
  • Uses alkaline or rechargeable batteries–so you are less likely to run out of power and the unit keeps working with no downtime due to power loss
  • Visible 'spotting' beam for determining receiver mounting placement making it faster to find the on-grade position
  • Comes with a choice of HL700 or CR700 receivers allowing you to choose the best option to suit your application
  • 5 Year warranty
  • Includes:
    • Receiver: HL700
    • Power: NiMH
    • Rod: No
    • Tripod: No
    • Retail Package: No
      • *Rechargeable pack comes with NiMH batteries and charger.
Applications:
  • Checking and adjusting elevations
  • Taking grade shots
  • Excavating cutting depth
  • Basement excavation
  • Digging septic tanks
  • Checking foundations
  • Digging footings
  • Setting forms
  • Checking sub-base materials
  • Screeding concrete
  • Slope on grade
Specifications:


    LL500 Specifications
  • Leveling accuracy1,3: ± 1.5 mm/30 m, 1/16" @ 100 ft, 10 arc seconds
  • Operating diameter1,2: appr. 500 m (1600 feet)
  • Self-leveling range: ± 11 arc minutes
  • Temperature Compensation: Yes
  • Laser type: 670 nm
  • Laser class: Class 2
  • Compensation Type: Wire Hung, Air Damped
  • Power source: 4x D-Cell Alkaline or NiMH batteries
  • Battery life1: 100 hours NiMH
  • Operating temp.: -20°C to 50°C (-4°F to 122°F)
  • Storage temp.: -20°C to 70°C (-4°F to 158°F)
  • Tripod attachments: 5/8 x 11 horizontally
  • Dust and waterproof: Yes - IP54
  • Weight: 3.6 kg (8 lbs)
  • Warranty: 5 Years

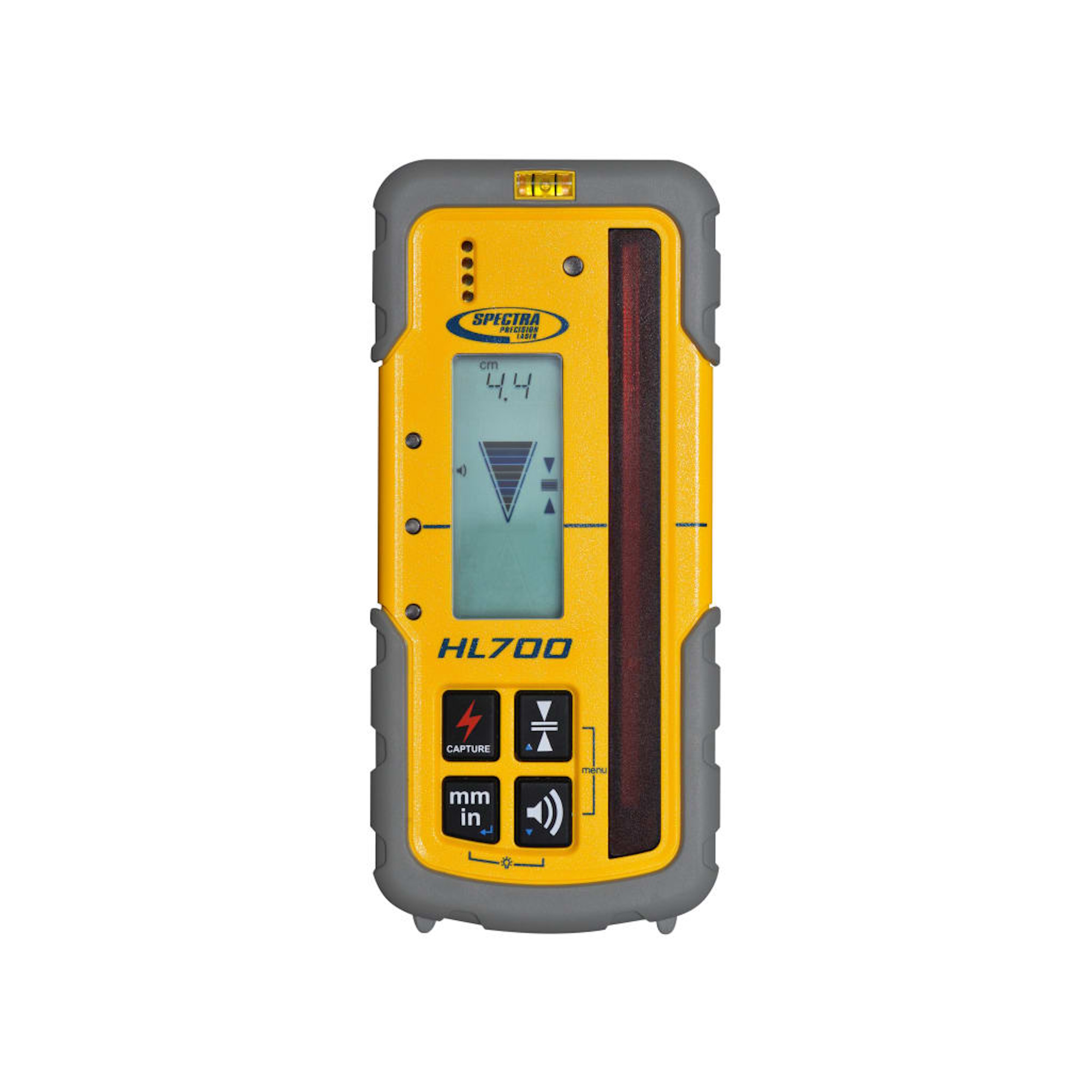

HL700 Digital Readout Receiver Specifications
  • Digital readout units: mm, cm, ft, in, frac. in
  • Reception height: 127 mm (5 inches)
  • Six On-grade sensitivities:
    • - Ultra Fine 0.5 mm (~1/32 in)
    • - Super Fine 1 mm (~1/16 in)
    • - Fine 2 mm (~1/8 in)
    • - Medium 5 mm (~1/4 in)
    • - Coarse 10 mm (~1/2 in)
    • - Calibration Mode 0.1 mm (~1/64 in)
  • Battery life1 (2 x AA): 60+ hours continuous operation
  • Auto shut-off: 30 minutes/24 hours
  • Operating temp.: -20°C to 50°C (-4°F to 122°F)
  • Dust and waterproof: Yes - IP67
  • Weight: 0.37 kg (13.1 oz)
  • Warranty: 3 Years
(1) at 21° Celsius (70° F)
(2) under optimal atmospheric circumstances
(3) along the axis
  • MPN: LL500-4
  • UPC: 692284000922
