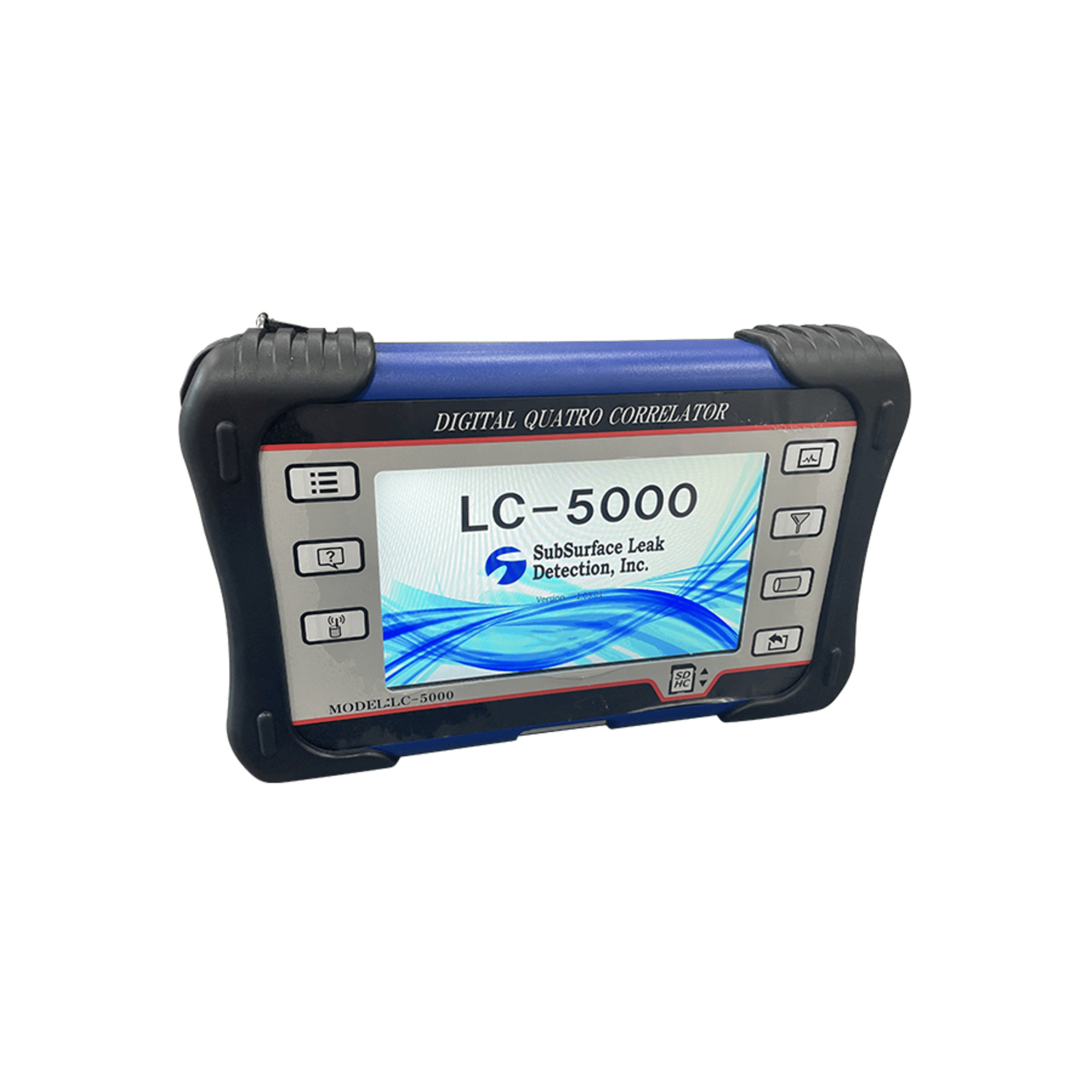

SubSurface Instruments LC-5000 (2/4 Pre-amp) Leak Noise Correlator - (2 Options Available)

• LC-5000-2PreAmp: (2 Pre-amp) Leak Noise Correlator
• LC-5000-4PreAmp: (4 Pre-amp) Leak Noise Correlator

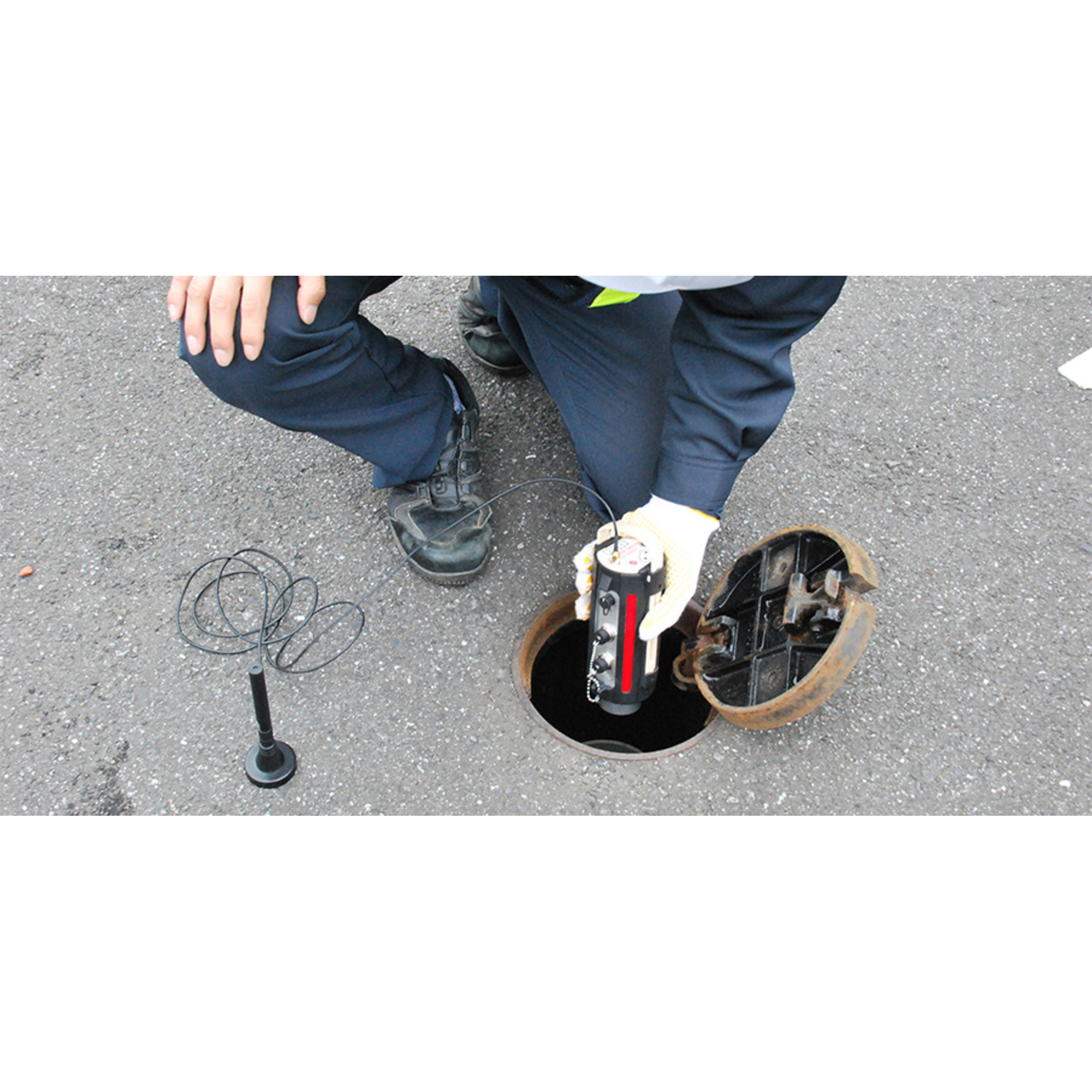

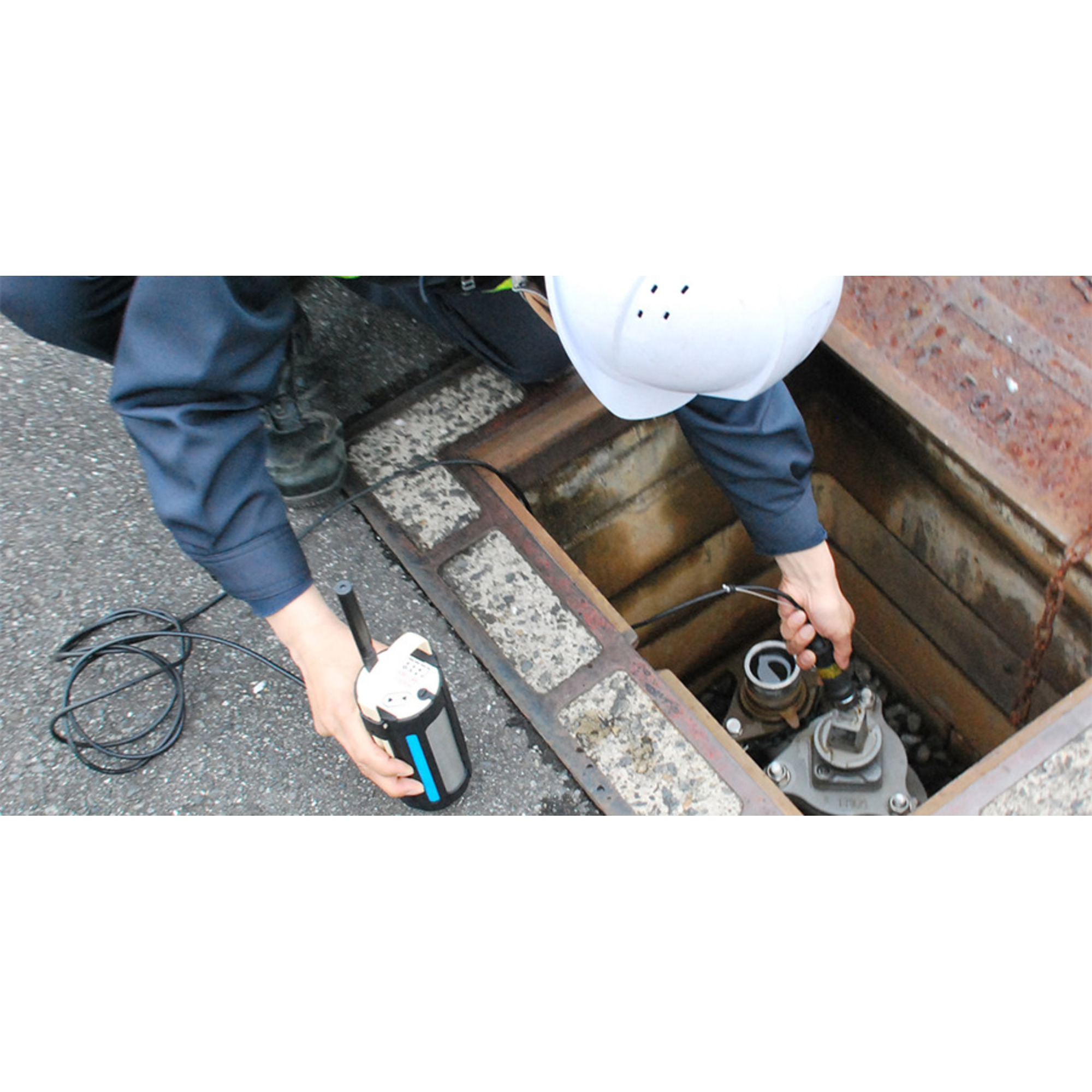

The Water Leak Correlator is a cutting-edge device designed to revolutionize water leak detection and localization. This advanced equipment employs sophisticated algorithms and acoustic technology to analyze and compare the sound signatures of water leaks in pipelines. By precisely correlating the acoustic signals captured at different points along the pipe network, the correlator pinpoints the exact location of the leak with remarkable accuracy. This non-intrusive and efficient solution not only minimizes water wastage but also reduces the time and resources required for leak detection and repair, making it an indispensable tool for water utilities and infrastructure maintenance teams.

• Real-time simultaneous correlation
• Up to 6 correlations at once
• Long-distance wireless communication
• Logger mode capabilities
• Rechargeable Lithium Batteries
• Heigh correlation processing ability
• Advanced filtering features
• 7-inch display and touch panel
• Tough with resin body and rubber protection

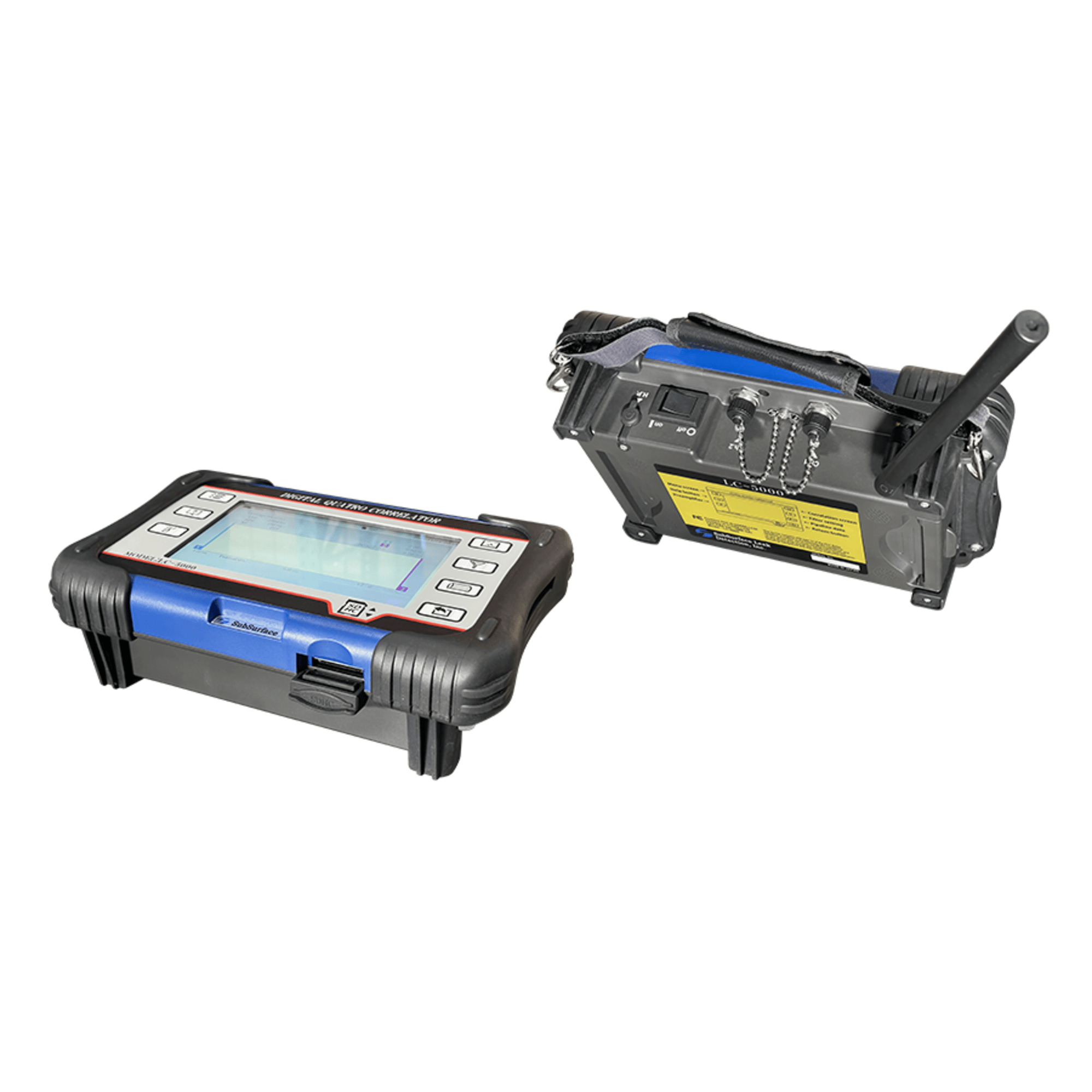

• Main Processor Unit Operating Temperature Range: -10º to 140º
• Main Processor Unit External Dimensions: 10.7 inches (W) x 7.0 inches (D) x 3.2 inches (H)
• Main Processor Unit Weight: Approx. 4.8 lb. (with batteries)
• Main Processor Unit Battery: Lithium Ion (rechargeable)
• Main Processor Unit Continuous Operating Time: 8 hours minimum (at 20°C, backlight OFF)
• Main Processor Unit Minimum Operating Voltage: 4.2V
• Main Processor Unit Input: Radio x4 or Cable x2
• Main Processor Unit Display: 7-inch TFT LCD with touch screen
• Main Processor Unit Operation: Polarity correlation
• Main Processor Unit Td Range: ±50ms, ±100ms, d200ms, ±400ms, ±800ms, ±1600ms, 32000ms or automatic setting
• Main Processor Unit Time Resolution
  • 25 µs (in ±50ms range), 50 µs (in ±100ms range)
  • 100 µs (in ±200ms range), 200 µs (in ±400ms range)
  • 400 µs (in ±800ms range), 800 µs (in ±1600ms range)
• Main Processor Unit Filter Range: THRU, 80Hz to 5,000Hz (4 low and 4 high)
• Main Processor Unit Notch Filter: OFF, 50Hz, 60Hz
• Main Processor Unit Auto Filter: Automatically selected from FFT operation
• Main Processor Unit Data Memory: 100 correlations
• Main Processor Unit FFT Monitor: 1kHz, 2.5kHz, 5kHz (common to both channels)
• Main Processor Unit Sound Memory: For 16 seconds

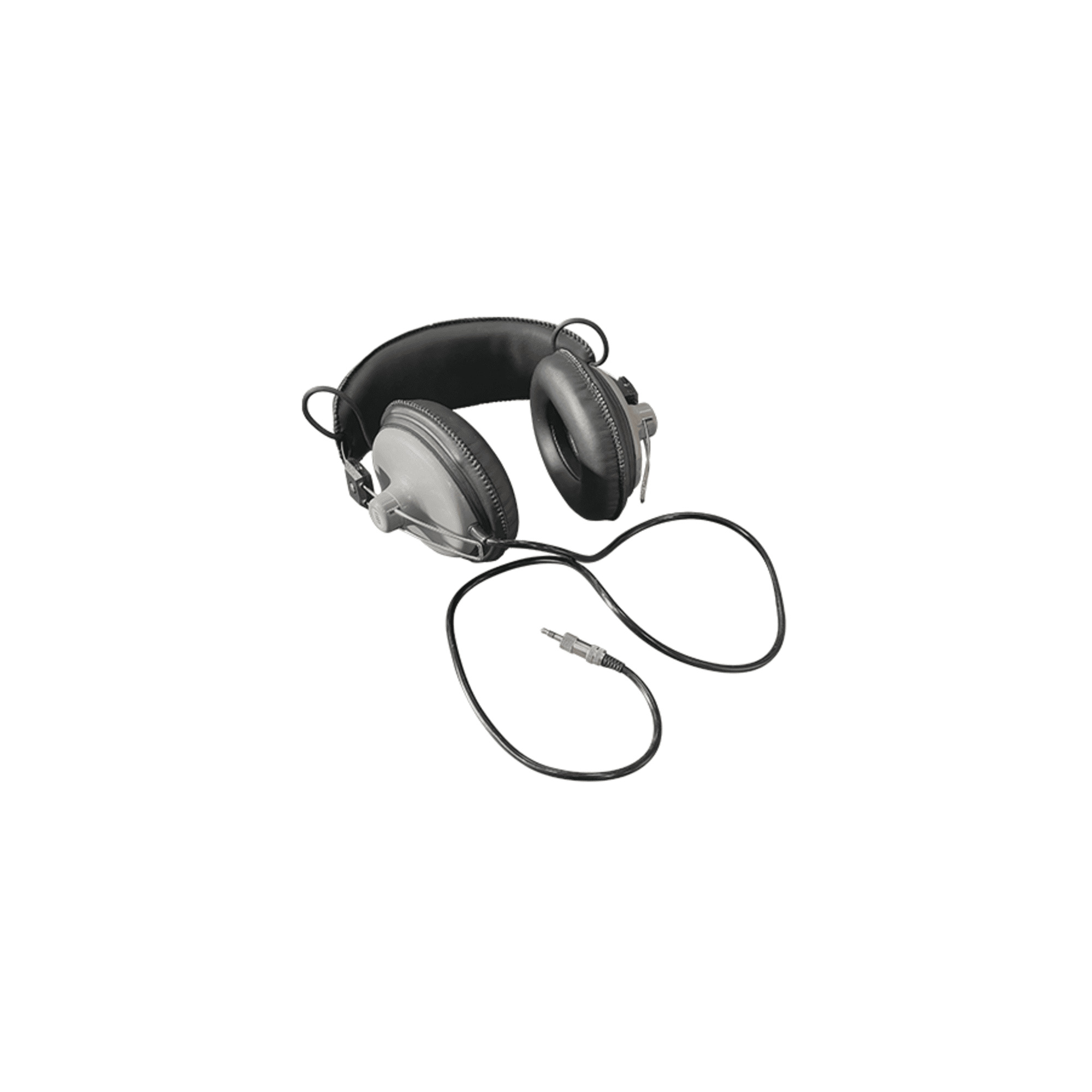

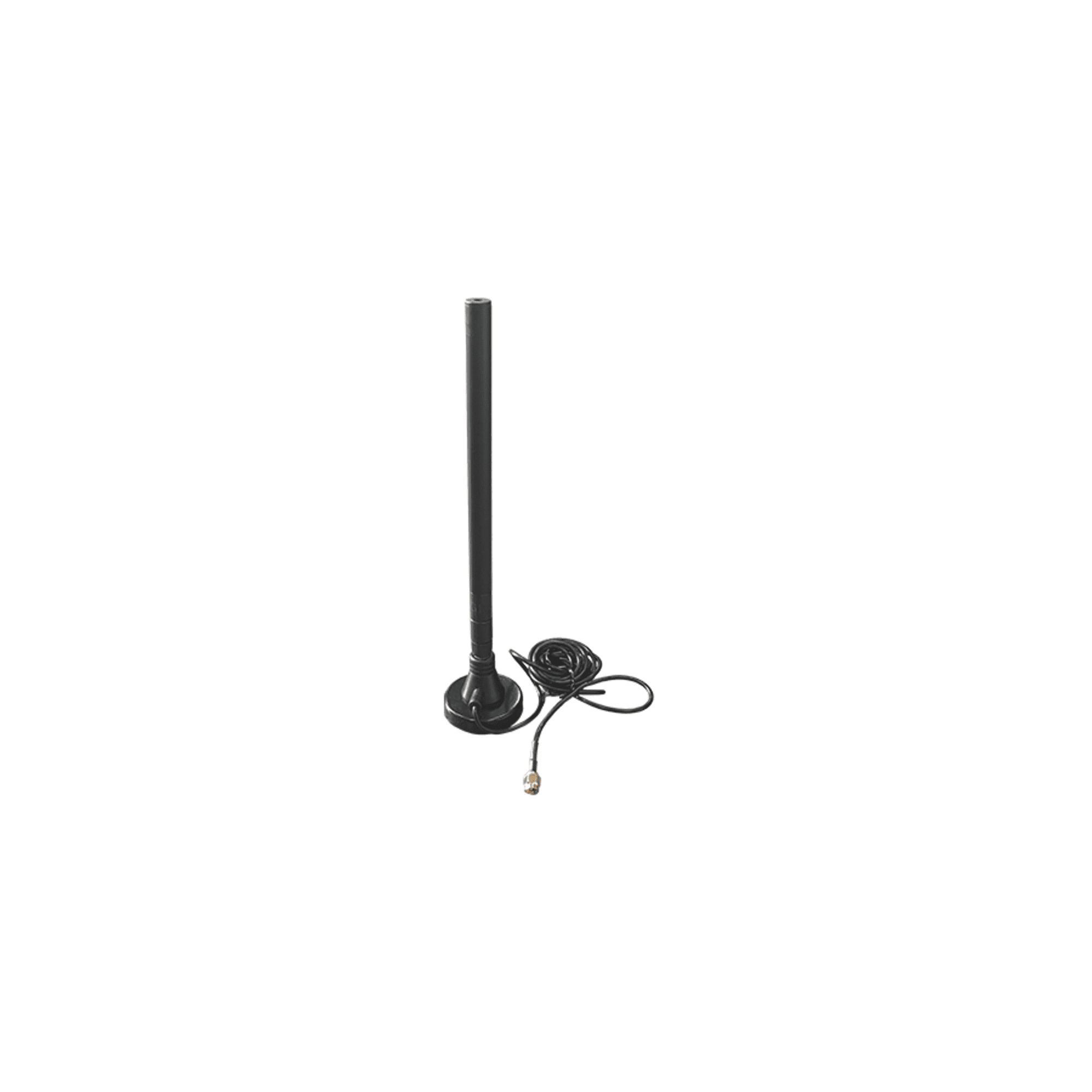

• Main Processor Unit External Interface: Antenna, Headphone, Power Switch, Cable, RS-232C

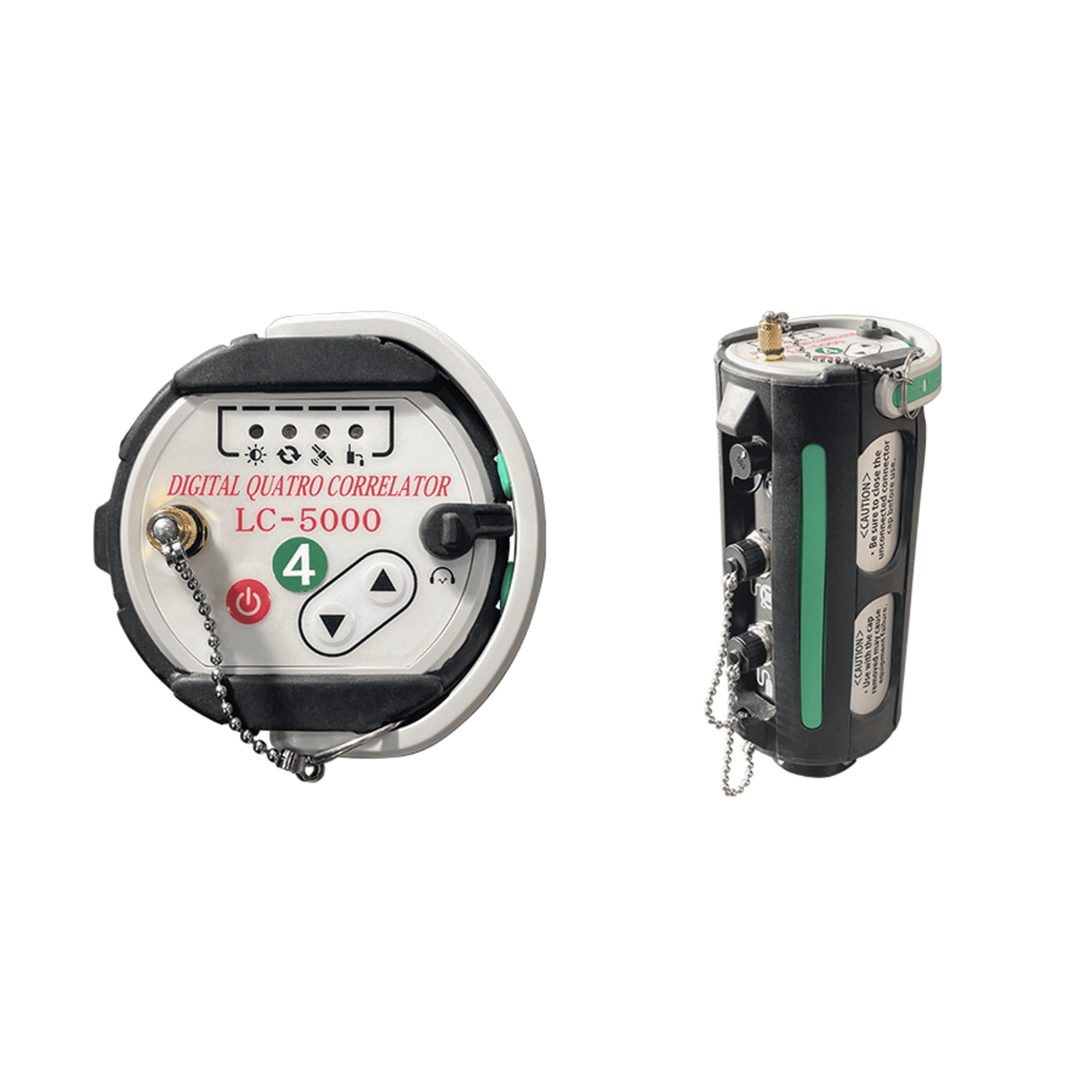

• Red, Blue, Yellow and Green Pre-Amplifiers Temp Range: -13º to 140º F
• Red, Blue, Yellow and Green Pre-Amplifiers Applicable Standard: IP68 (weather tight)
• Red, Blue, Yellow and Green Pre-Amplifiers External Dimensions: 3.14 inches (D) x 7.2 inches (H)
• Red, Blue, Yellow and Green Pre-Amplifiers Weight: Approx. 6.3 lb. (with batteries)
• Red, Blue, Yellow and Green Pre-Amplifiers Battery: Lithium Ion (rechargeable)
• Red, Blue, Yellow and Green Pre-Amplifiers Continuous Operating Time: 10 hours minimum (at 20ºC, backlight OFF)
• Red, Blue, Yellow and Green Pre-Amplifiers Input:
  • Input Frequency Range: 20Hz to 5kHz (at THRU filter setting) 100Hz to 5KHz (at STD filter setting)
  • Input Sensitivity: 50 micro V, max.
  • Signal to Noise Ratio: 35dB, min.
• Red, Blue, Yellow and Green Pre-Amplifiers Radio Communication:
  • System Output Frequency: UHF under approved freq.
  • Modulation: Direct frequency modulation
  • Output Power: 0.5W (500mW)
  • Output Impedance: 50ohms

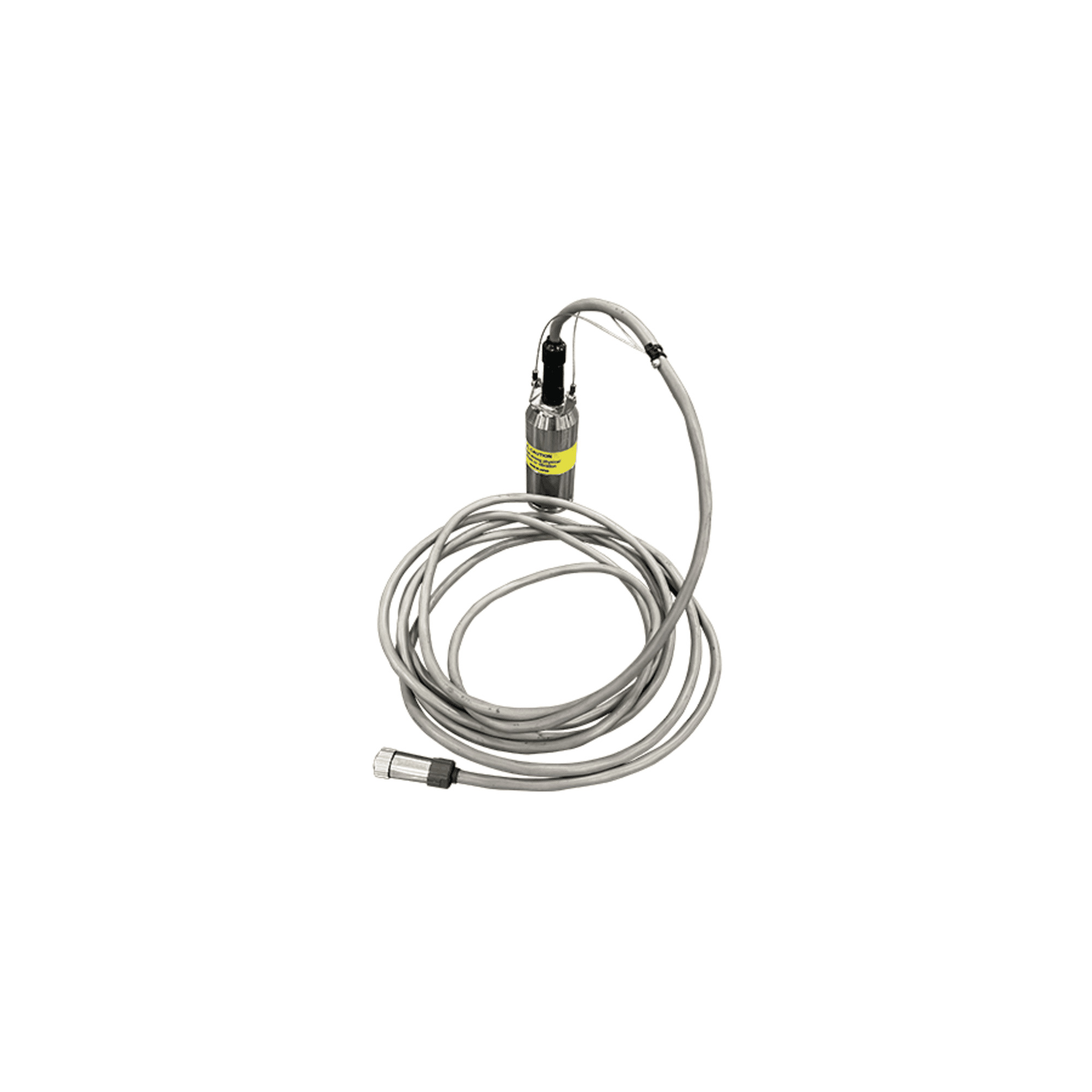

• Sensors Operation Modes: Correlation / Relay / Logger / Relay+Correlation
• Sensors Sensitivity Settings: 2.0 (1 to 20) Steps Manual & Auto
• Sensors Filter Setting Modes:Common / Through
• Sensors Recording: Audio signal recording (300 seconds, logger mode only)
• Sensors GPS Function: Transmit position coordinates & elevation to the Main Unit
• Sensors Weight: 2.2 lbs.

Click Here for LC-5000 Brochure

Click Here for LC-5000 Data Sheet

Click Here for LC-5000 Manual

Click Here for LC-5000 Software Manual
