Subsurface Instruments - Water Leak Detector (LD-12)

Product Code: ES8159

Subsurface Instruments LD-12 - Water Leak Detector

Condition: New

Usually ships off dock within:3 to 4 Weeks

Your Price

$3,995.00

Qty

Accepted Payment Types

Free Shipping

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

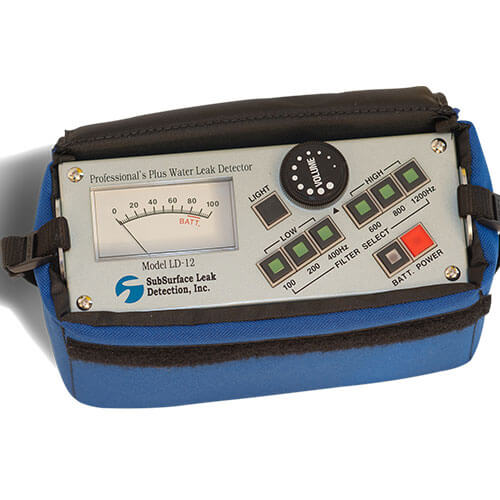

Subsurface Instruments Water Leak Detector

Model Number: LD-12

The LD-12 water leak detector is a very easy-to-use detector, featuring six filters that allow the unit to screen outside noise and zero in on water leaks.

Features

Considered one of the best leak detection locators for the price.
Large meter display, allowing the user to pinpoint the exact location.
Six selectable filters, split into three "low side" filters and three "high side" filters.
High-sensitivity ground microphone and low "electronic noise" amplifier combine to offer the best quality sound leak detection.
Three accessories for pinpointing a leak. Ground plate, Magnetic base and Contact rods.

Key Features

Large meter display (with back-light) of sound loudness, allowing the user to pinpoint the exact leak location.
Light weight amplifier, weighing only 31 ounces, with a padded carrying case and a strap.
Six selectable filters, split into three “low side” filters (100Hz, 200Hz, or 400Hz) and three “high side” filters (600Hz, 800Hz, or 1200Hz).
"Limiter" switch which cuts off all loud noises greater than 110dB. If you drop the sensor, you won't hurt your hearing.
"Filter-Thru" switch, which turns OFF all of the amp’s filters, allowing the user to hear all sounds from 50Hz to 15,000Hz.
High-sensitivity ground microphone and low “electronic noise” amplifier combine to offer the very best quality sound for leak detection.

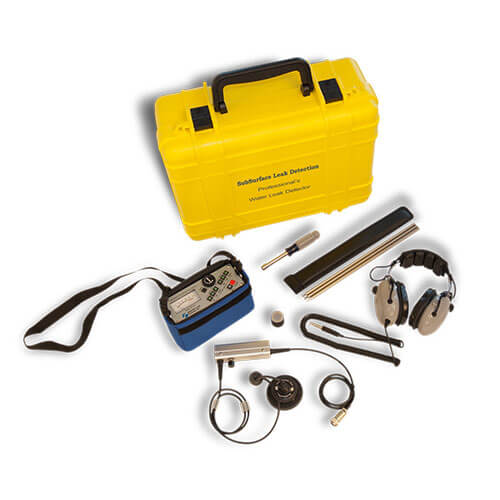

Three accessories for attachment to the sensor: Ground plate for pinpointing on streets/slabs Magnet base for surveying at hydrants/valves Contact rod for surveying at meters/fittings

Technical Specifications:

Size: 6.7" x 2.8" x 4.1" (17.0 cm x 7.1 cm x 10.3 cm)
Weight: 2.0 lbs (0.9 kg)
Input Power: Six (6) "AA" dry cell batteries
Battery Life: 28 hours with backlight OFF (alkaline cells), 14 hours with backlight ON (alkaline cells)
Frequency Range: 100 Hz to 1200 Hz (13 dB) with Filter-Thru OFF, 15 Hz to 30,000 Hz (13 dB) with Filter-Thru ON
Power Consumption: 70 mA or less with backlight ON, 35 mA or less with backlight OFF
Input Impedance: 50,000 ohms
Output Impedance: 15 ohms
Amplification: 62 ±/- 3 dB
ABS Carrying Case Specifications:
Size: 18.5" x 14.6" x 7.5" (47.0 cm x 37.1 cm x 19.0 cm)
Weight: 16.4 lbs (7.43 kg)

MPN: LD-12
