Tomahawk - 6" 3.5 HP Honda Early Entry Green Walk Behind Concrete Saw with GX120 Honda Engine - TFS6H

The Tomahawk - 6" 3.5 HP Honda Early Entry Green Walk Behind Concrete Saw is powered by a 3.5 HP Honda GX120 Engine, and designed for the professional demanding straight, deep cuts of up to 1-3/16 inches. Ideal for creating joints in concrete slabs, it helps prevent stress and random cracks. User-friendly features include a simple design for quick blade changes and polyurethane wheels that protect fresh concrete surfaces. With its durability and backed by a 3-year engine warranty plus a 1-year product warranty, the TFS6H is a reliable choice for construction professionals and rental fleets.

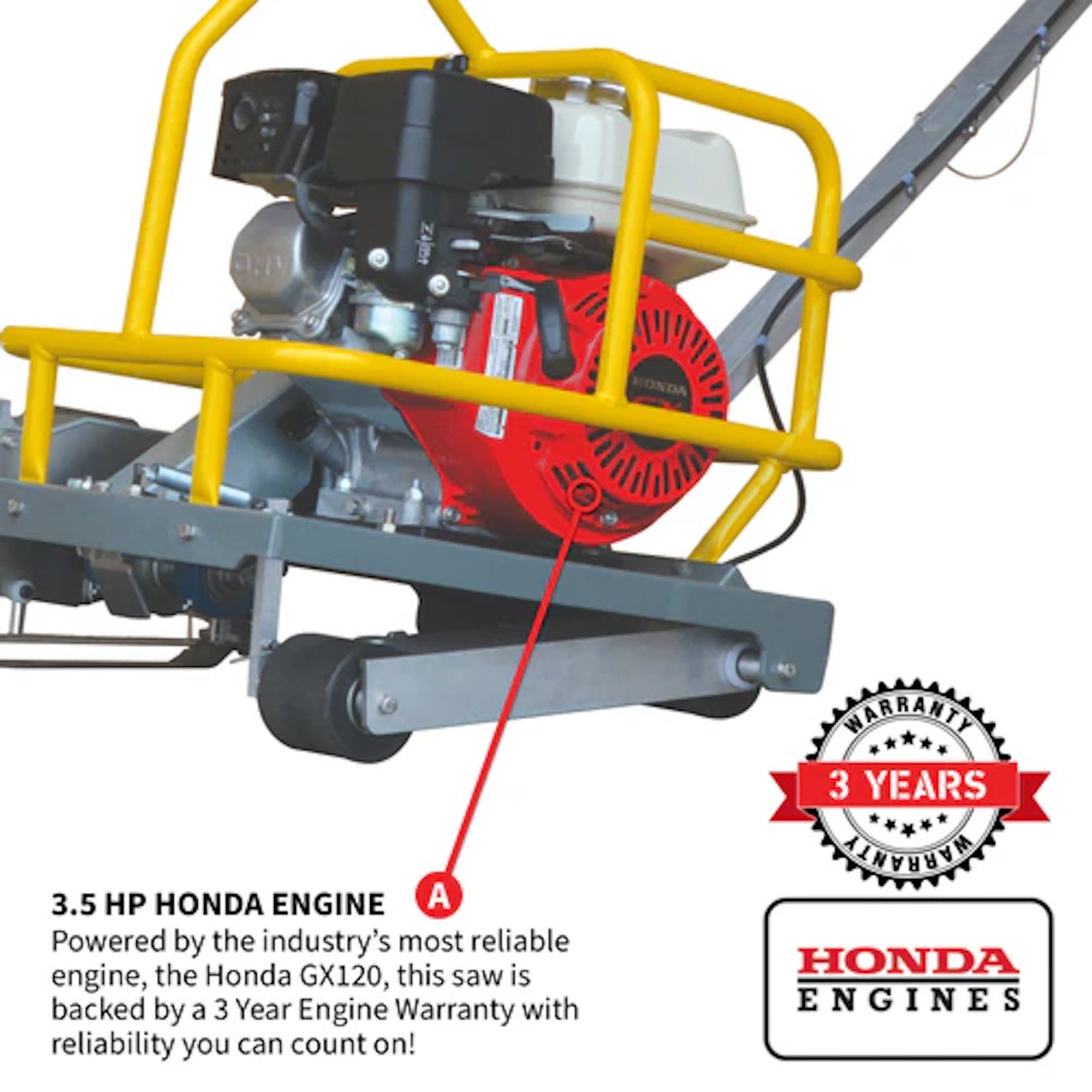

• 3.5 HP Honda GX120 engine
• Maximum cutting depth of 1-3/16 inches
• Fits blade sizes up to 6 inches.
• Excellent for making joints in concrete slabs for random crack control

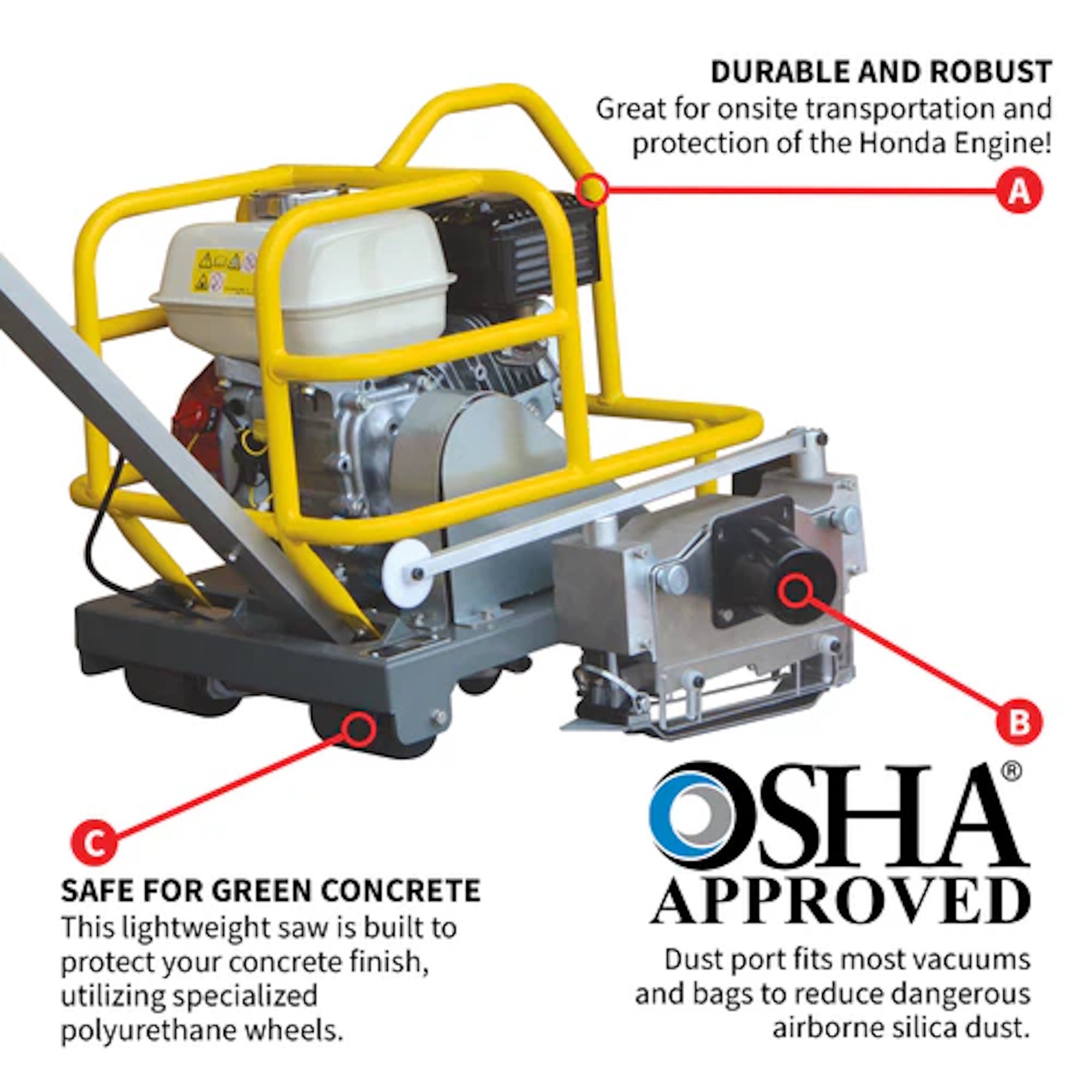

• Polyurethane wheels for safe operation on fresh concrete
• Comfortable grip handles for easy operation
• OSHA compliant vacuum port for dust collection
• 3-year engine warranty and 1-year product warranty
• EPA and CARB compliant

• Maximum blade diameter, in (mm): 6 (152)
• Maximum depth of cut, in (mm): 1-3/16 (30)
• Maximum power, hp: 3.5
• Average bladeshaft, rpm: 3,800
• Blade flanges, in (mm): 3 (76)
• Power source: Gasoline

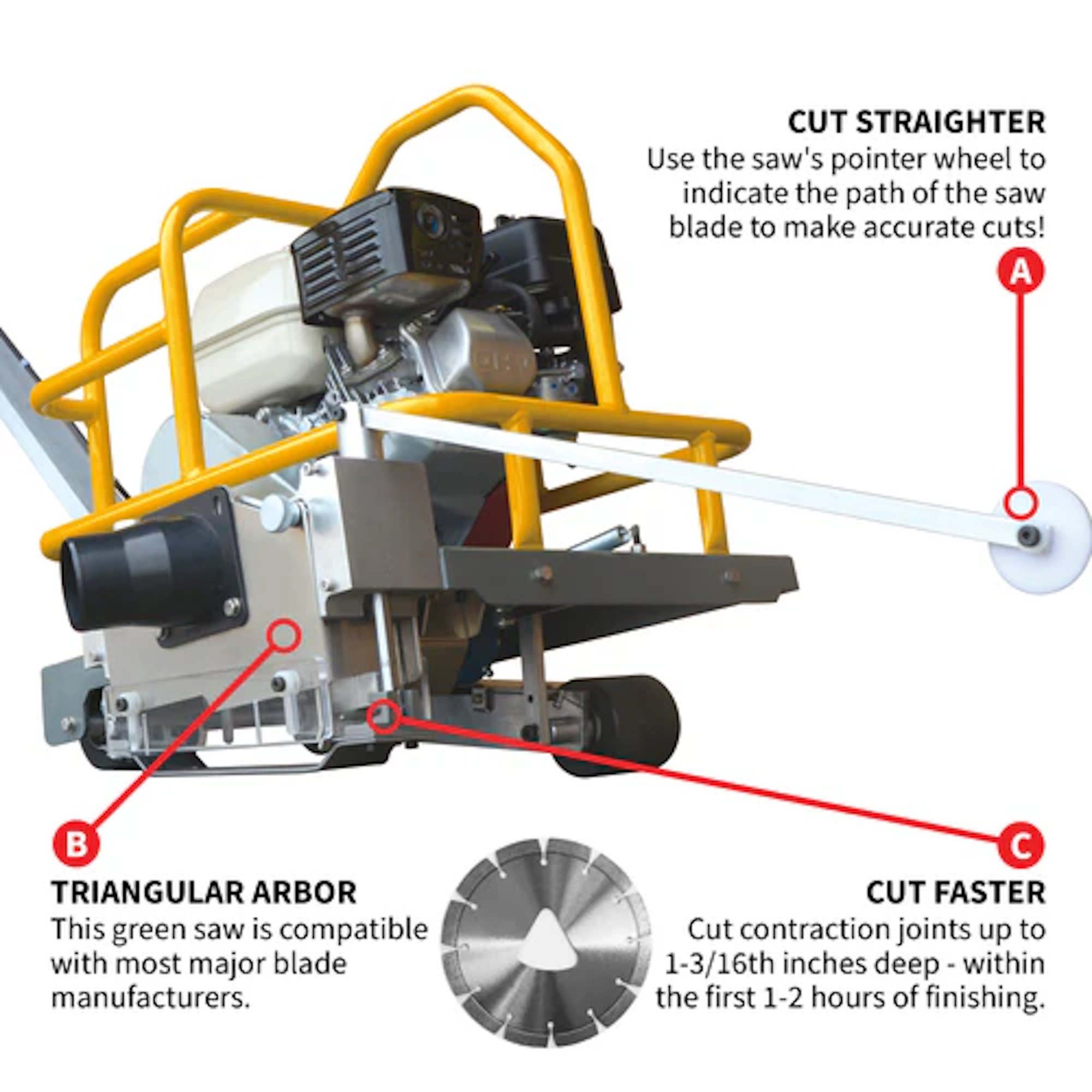

• Arbor: Triangular
• Bladeshaft diameter, in (mm): 3/4 (19)
• Displacement, cu in: 163
• Bore/stroke, in (mm): 2.9 (58)/1.9 (48)
• Cylinders/cycle: 1/4
• Fuel capacity, qts (l): 3.3 (3.1)
• Oil capacity, qt (l): 0.61 (0.58)
• Air filter: Dry type dual element with pre-cleaner
• Starter: Recoil
• Engine cooling: Air
• Axle front/rear, in (mm): 3/4 (19)/3/4 (19)
• Wheels front, in (mm): 3 x 3 (76 x 76 ); 1 each
• Wheels rear, in (mm): 3 x 3 (76 x 76 ); 2 each
• Handlebar adjustment: Fixed
• Blade guard type: Enclosed
• Number of belts: 1
• Blade depth control: Manual
• Engine manufacturer: Honda
• Engine specifications: GX120
• Maximum weight uncrated, lbs: (kg) 87 (39)
• Maximum weight crated, lbs: (kg) 91 (41)
• Dimensions uncrated, in (mm): LxWxH 68 x 19 x 33-1/2 (1,727 x 483 x 851)

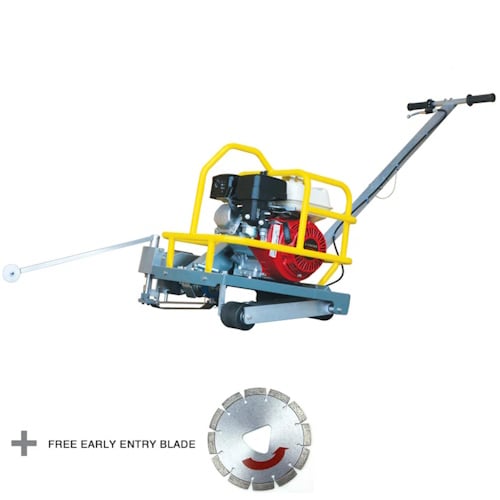

• TFS6H 6" Concrete Saw

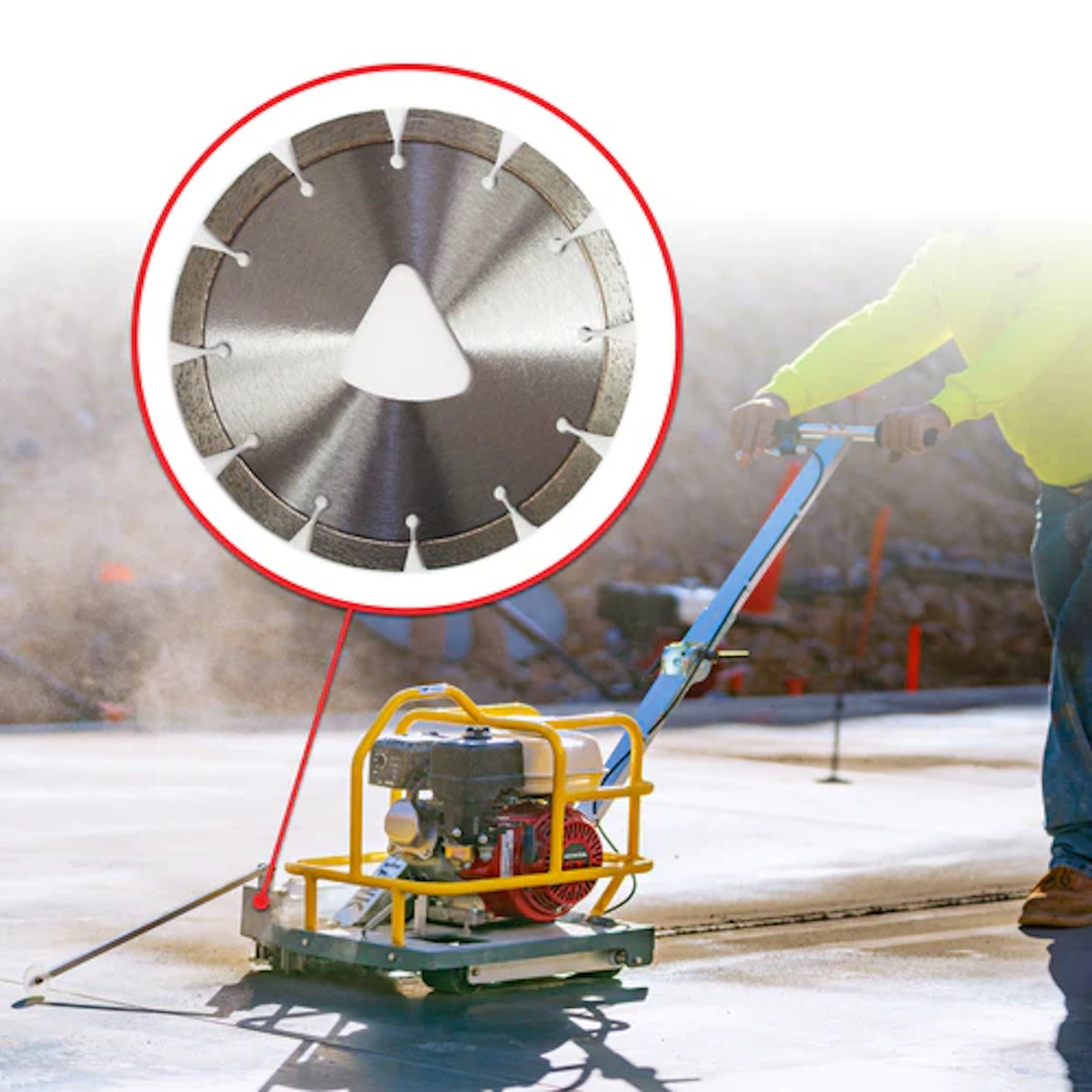

• 1 Free Blade included

• Parking Lots
• Side Walks
• Residential and Commercial Applications
• Decorative Jobsite Enhancements

• WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Click Here for Specification Sheet
Click Here for Operations Manual
Click Here for Parts Manual
Click Here for Guide on How to Adjust Blade
