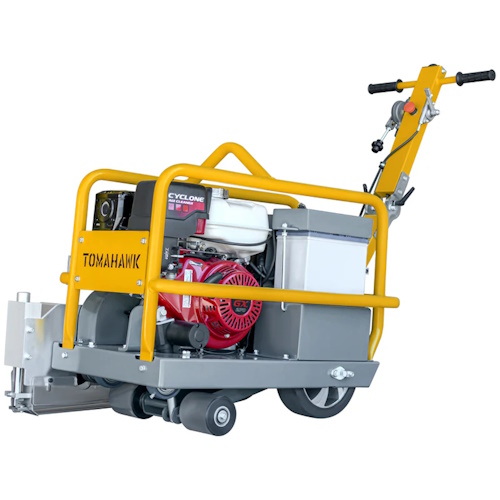

Tomahawk - 10" 13 HP Honda Early Entry Green Walk Behind Concrete Saw with GX390 Honda Engine - TFS10H

The Tomahawk - 10" 13 HP Honda Early Entry Green Walk Behind Concrete Saw is powered by a 13 HP Honda GX390 engine, capable of cutting up to 1.5 inches deep. Its Easy Electric Key Start ensures smooth operation, while the design aims to prevent stress fractures and random cracking. Ideal for commercial and paving projects, this saw offers safe and efficient cutting. With a 3-year engine warranty and 1-year product warranty, the TFS10H is a reliable investment for pristine concrete slab joints and long-term performance.

• Excellent for making joints in concrete slabs for random crack control
• Polyurethane wheels for safe operation on fresh concrete
• Used for medium to large concrete pours
• Fits blade sizes up to 10 inches
• Maximum cutting depth of 1.5 inches
• Easy Electric Key Start

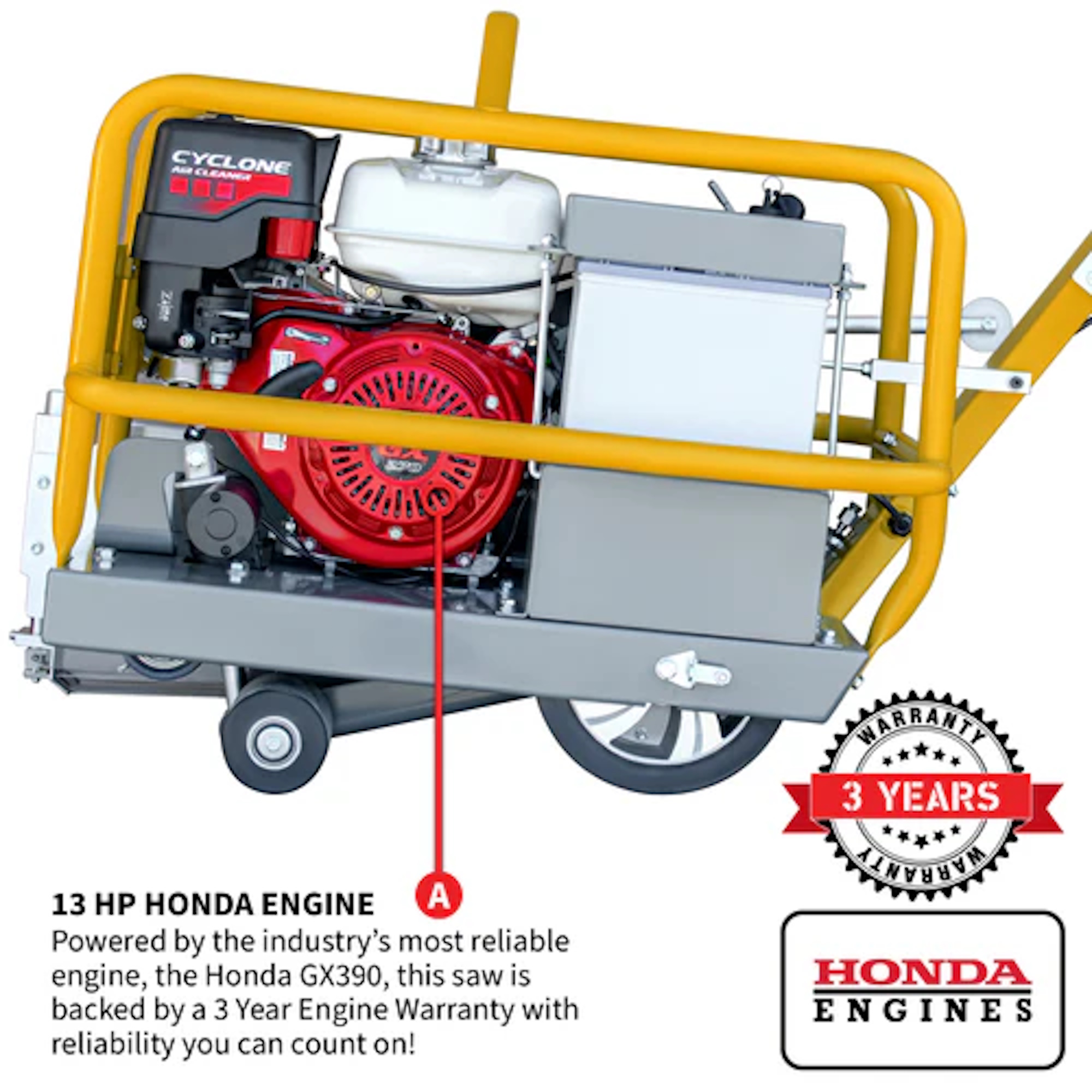

• Powered by the Honda GX390 13HP engine
• Arbor Size: Triangular
• Hydro Static Transmission
• Comfortable grip handles for easy operation
• EPA and CARB compliant
• 1-year product warranty
• 3-year engine warranty

• Maximum blade diameter, in (mm): 9-10''
• Maximum depth of cut, in (mm) 7/8''- 1 1/2''
• Average Bladeshaft, rpm: 3000
• Blade flanges, in (mm): Triangular
• Wheels front, in (mm): 4'' (101.6)
• Wheels rear, in (mm): 10'' (254)
• Maximum weight uncrated, lbs: 320' (145kg)

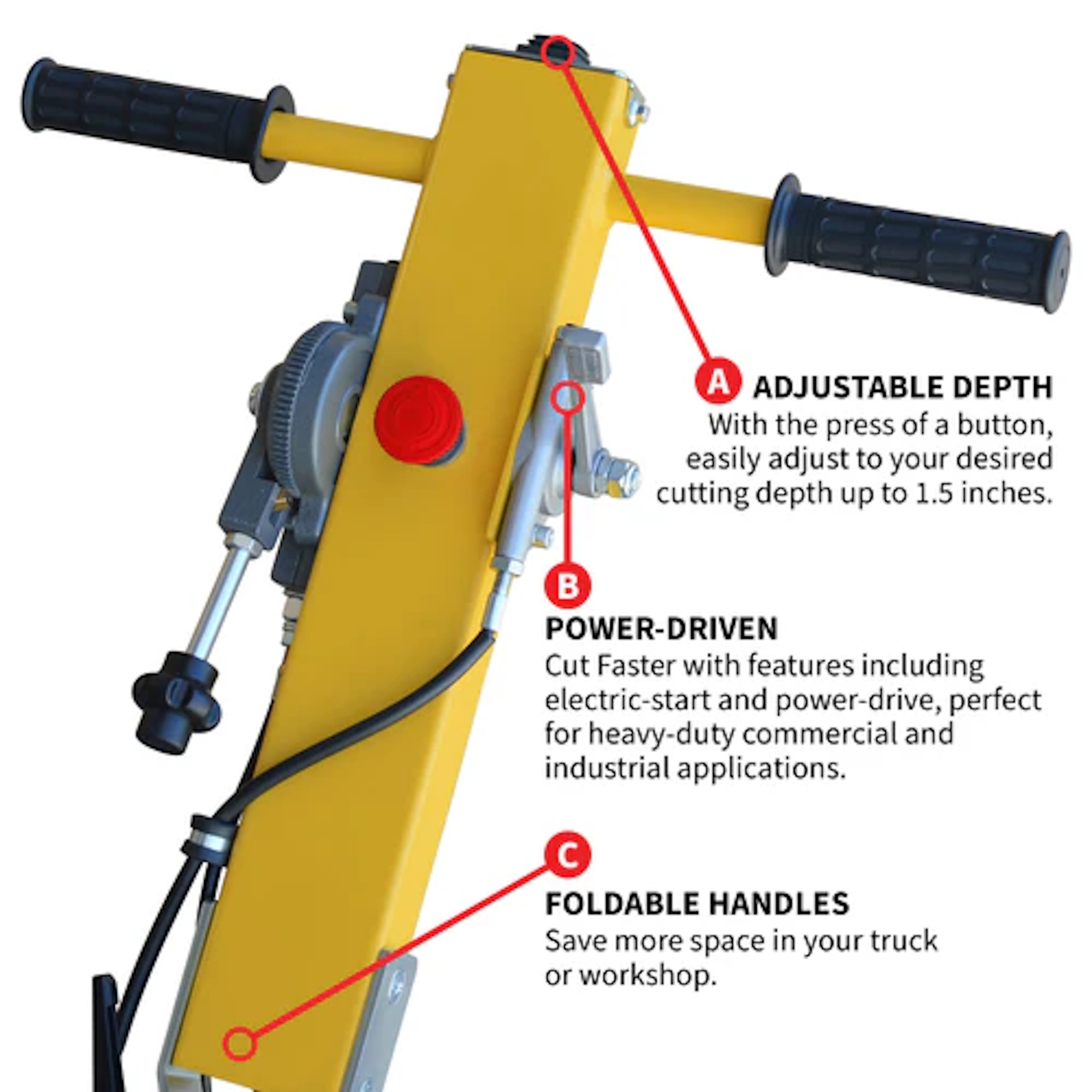

• Blade Depth Adjustment: Electric
• Handlebar Adjustment: Adjustable
• Blade guard type: Enclosed
• Number of belts: 1
• Arbor: Triangular
• Start Type: Electric
• Engine Manufacturer: Honda
• Engine Specifications: GX390
• Horsepower: 13HP
• Fuel Tank Capacity: 6.4 U.S. qts (6.1 liters)
• Oil Capacity: 1.16 US qt (1.1 L)
• Maximum weight crated, lbs: 380 lbs (172.3 kg)
• Maximum weight uncrated, lbs: 320 lbs (145.1kg)
• Dimensions: 45" x 27" x 36" ( 114.3cm x 68.5cm x 91.4cm)

• TFS10H Concrete Saw
• Blades Not Included

• Parking Lots
• Side Walks
• Residential and Commercial Applications
• Decorative Jobsite Enhancements

• WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Click Here for Specification Sheet
Click Here for Operations Manual
Click Here for Parts Manual
